AMD Socket AM5, support for:
AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Chipset
AMD B650
Memory
Support for DDR5 up to 6400 (OC)
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Onboard Graphics Port
1 x VGA port supporting a maximum resolution of 1920×1200@60 Hz
1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots
1 x PCI Express x16 slot (PCIEX16) 4.0
1 x PCI Express x1 slot 3.0
Storage Interface
1 x M.2 connector PCIe 4.0
4 x SATA 6Gb/s connectors
USB
CPU:
– 2 x USB 3.2 Gen 1 ports on the back panel
– 1 x USB 2.0/1.1 port on the back panelChipset:
– 2 x USB 3.2 Gen 1 ports available through the internal USB header
– 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x Clear CMOS jumper

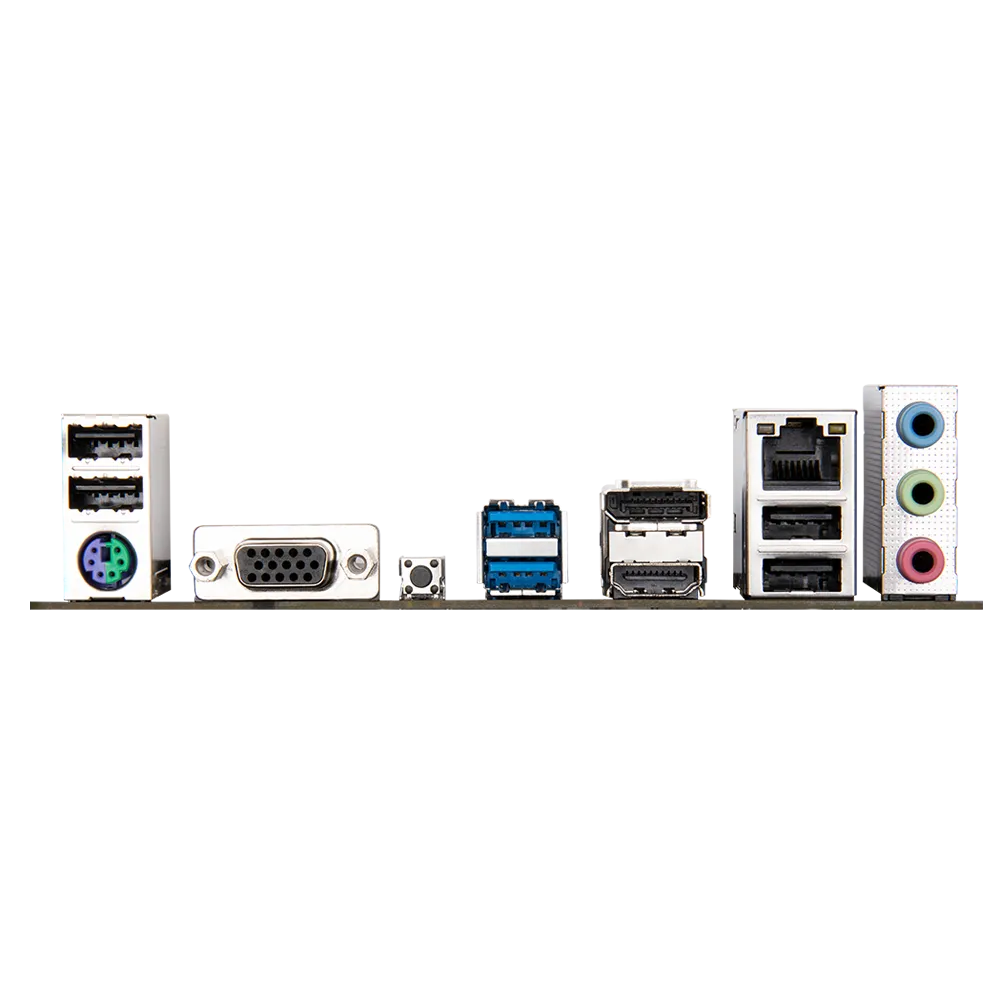

Back Panel Connectors
4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x Q-Flash Plus button
2 x USB 3.2 Gen 1 ports
1 x DisplayPort
1 x HDMI port
1 x RJ-45 port
3 x audio jacks
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
