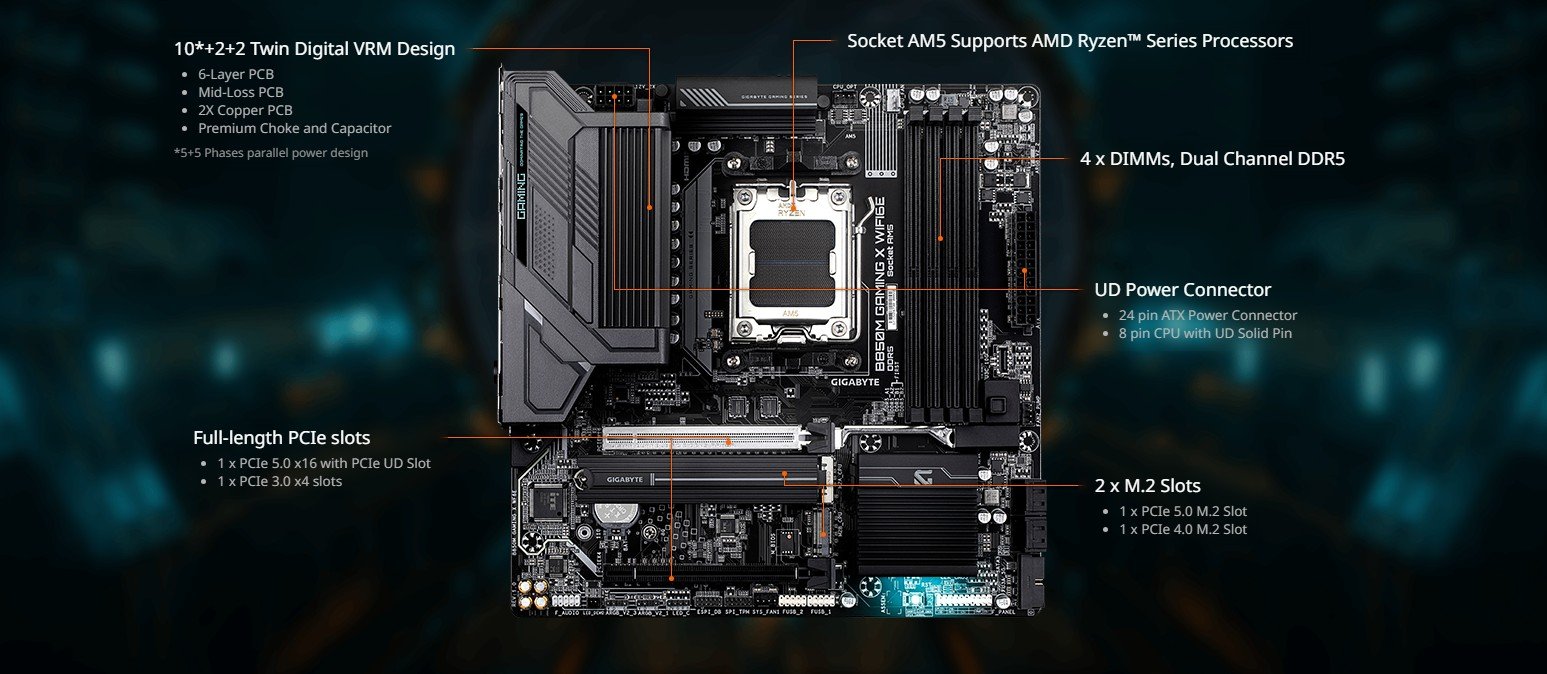

AMD Socket AM5, support for:
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors
Chipset
AMD B850
Memory
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Support for DDR5 up to 8200(O.C)
Onboard Graphics Ports
1 x HDMI 2.1 port
2 x DisplayPort 1.4
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Realtek® Wi-Fi 6E RTL8852CE
– WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.3
– Support for 11ax 160MHz wireless standard
Expansion Slots
1 x PCI Express x16 slot (up to PCIE 5.0 depending on processor)
1 x PCI Express x16 slot (PCIe 3.0)
Storage Interface
1 x M.2 connector (PCIe 5.0)
1 x M.2 connector (PCIe 4.0)
4 x SATA 6Gb/s connectors
USB
CPU:
– 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
– 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
CPU+USB 2.0 Hub:
– 4 x USB 2.0/1.1 ports on the back panelChipset:
– 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
– 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
– 4 x USB 2.0/1.1 ports available through the internal USB headers

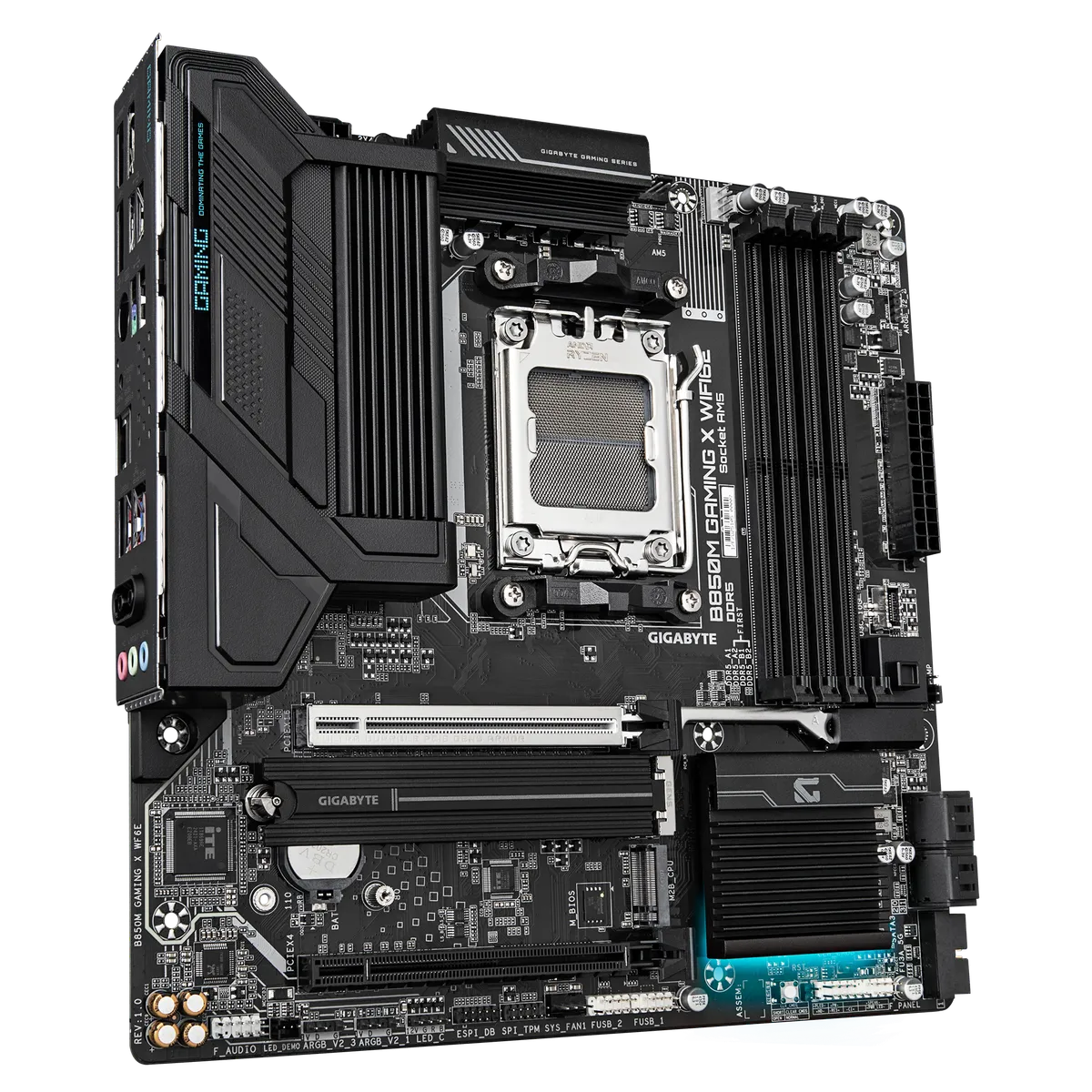

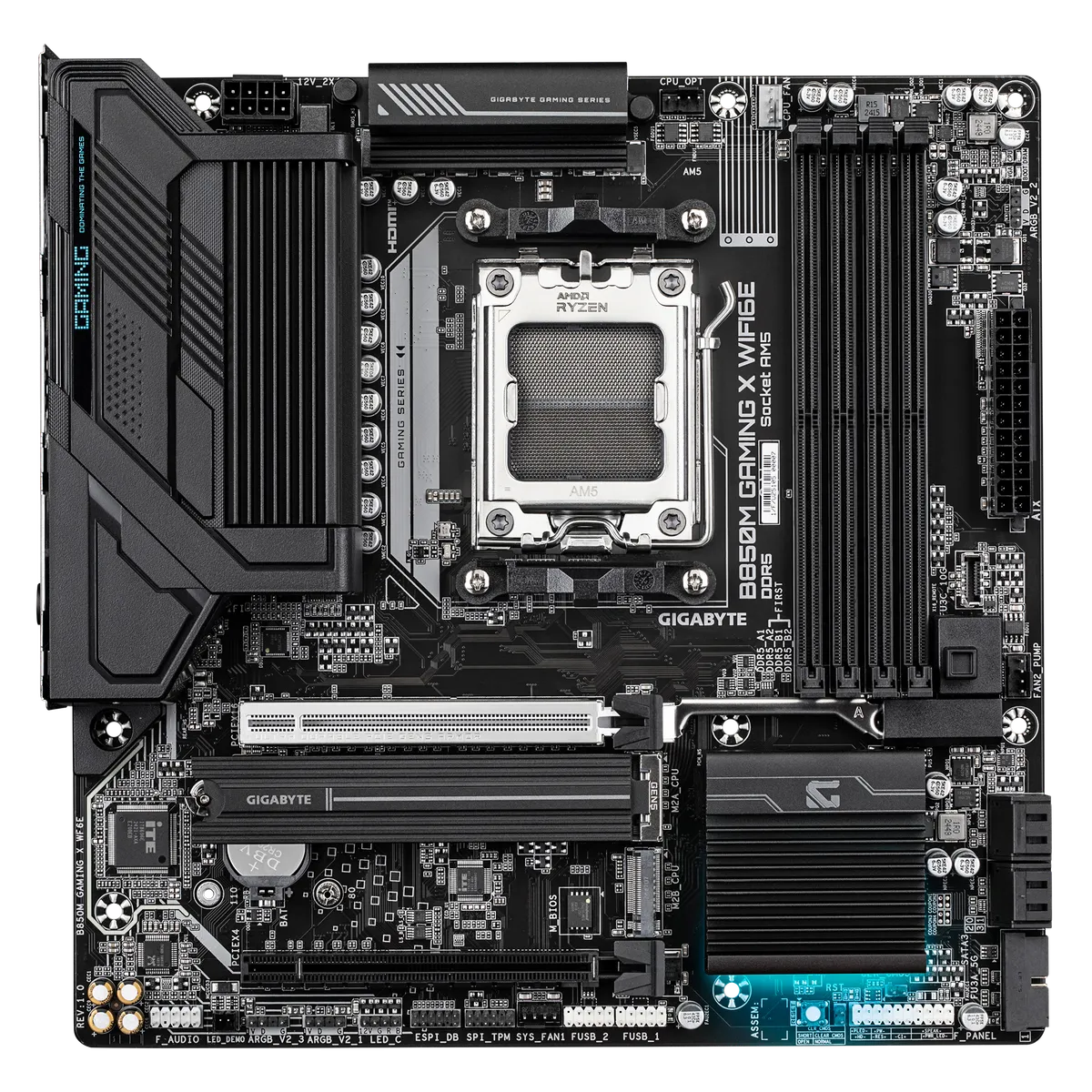

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

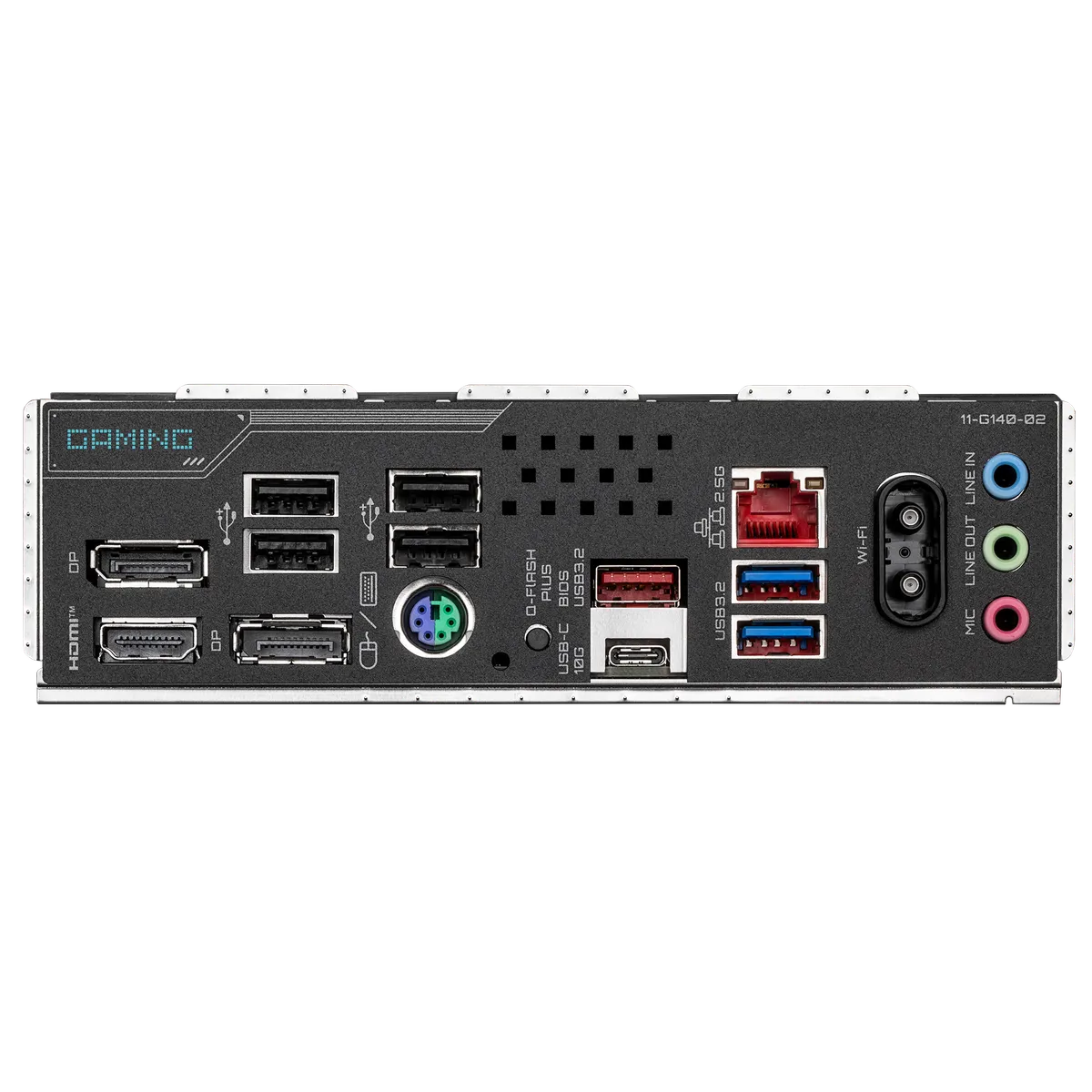

Back Panel Connectors
1 x HDMI port (Note)
2 x DisplayPorts (Note)
1 x Q-Flash Plus button
1 x PS/2 keyboard/mouse port
1 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C® port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
2 x antenna connectors (2T2R)
3 x audio jacks
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
