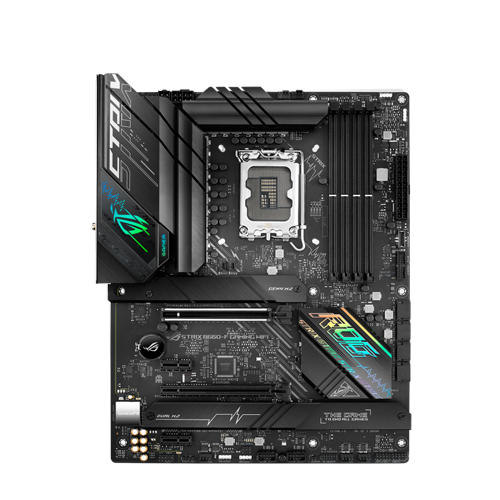

ASUS ROG STRIX B660-F GAMING WIFI (LGA1700 DDR5)

Availability:

Out of stock


  • Form Factor: ATX
  • Socket: LGA 1700 (Intel 12th/13th gen)
  • Memory Type: DDR5
  • RAM Slot: 4
  • SATA Port: 4
  • M.2 Slot: 3 (2x Gen4, 1x Gen3)
  • Display Connector: HDMI, DP
  • WiFi/Bluetooth: WIFI 6 2.4/5GHz, Bluetooth 5.2
  • 3-Pin ARGB Sync: Yes

SOLD OUT

Out of stock

Compare
Socket

LGA1700

Memory Type

DDR5-INTEL

Brand

ASUS

Form Factor

ATX

CPU Intel® Socket LGA1700 for 12th/13th/14th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Chipset Intel® B660 Chipset
Memory 4 x DIMM, Max. 128GB, DDR5 6000(OC)/5800(OC)/5600(OC)/5400(OC)
/5200(OC)/5000(OC)/4800, Un-buffered Memory*
Graphics 1 x DisplayPort**
1 x HDMI® port***
Expansion Slots Intel® 12th Gen Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)Intel® B660 Chipset**
1 x PCIe 3.0 x16 slot (supports x4 mode)***
2 x PCIe 3.0 x1 slots* Please check PCIe bifurcation table in support site.
** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot
*** The PCIEX16(G3) shares bandwidth with the PCIEX1(G3)_1 and PCIEX1(G3)_2. When either PCIEX1(G3) slot enables, PCIEX16(G3) will run x2 mode.
Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

Intel® B660 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4)
4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.

Ethernet 1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth Wi-Fi 6
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
USB Rear USB (Total 9 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 ports (1 x Type-A)
5 x USB 3.2 Gen 1 ports (4 x Type-A, 1 x USB Type-C®)
2 x USB 2.0 ports (2 x Type-A)Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/384 kHz playbackAudio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Premium audio capacitors
– Audio cover
Back Panel I/O Ports 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 ports (1 x Type-A)
5 x USB 3.2 Gen 1 ports (4 x Type-A, 1 x USB Type-C®)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® I225-V 2.5Gb Ethernet
5 x Audio jacks
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x AURA RGB header

1 x S/PDIF Out header

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

1 x Thunderbolt™ header

Special Features Extreme Engine Digi+

– 5K Black Metallic Capacitors

ASUS Q-Design

– M.2 Q-Latch

– Q-DIMM

– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

– Q-Slot

ASUS Thermal Solution

– M.2 heatsink backplate

– M.2 heatsink

ASUS EZ DIY

– BIOS FlashBack™ button

– BIOS FlashBack™ LED

– CPU Socket lever protector

– Clear CMOS button

– ProCool

– Pre-mounted I/O shield

– SafeSlot

– SafeDIMM

AURA Sync

– AURA RGB header

– Addressable Gen 2 RGB headers



Accessories

Cables

4 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x Cable ties pack

1 x M.2 Rubber Package

1 x M.2 Q-Latch package

1 x M.2 Q-Latch package for M.2 backplate

1 x ROG key chain

1 x ROG Strix stickers

1 x ROG Strix thank you card

Installation Media

1 x Support DVD

Documentation

1 x User manual

Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
