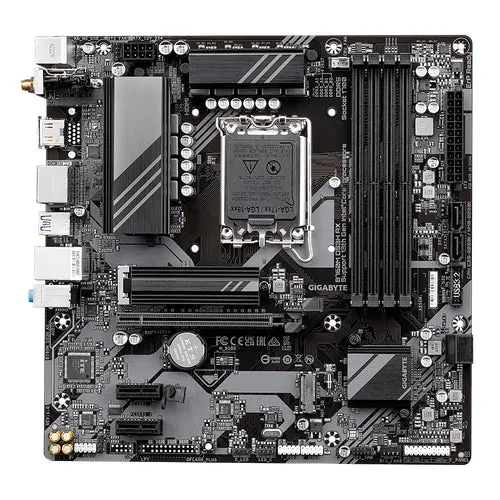

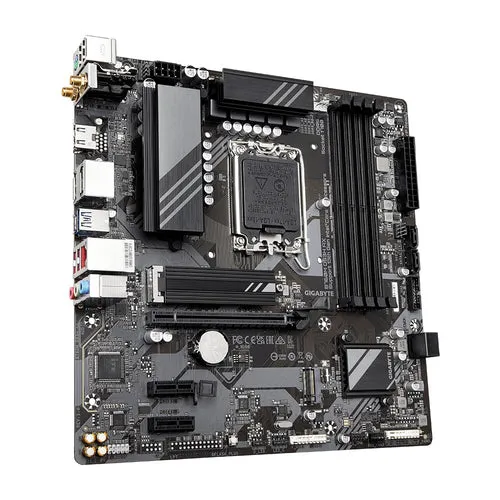

Gigabyte B760M DS3H AX DDR5 (WiFi/BT)


  • Form Factor: mATX
  • Socket: LGA1700 (intel 12th, 13th, 14th gen)
  • Memory Type: DDR5
  • Ports & Slot: 4x RAM slot, 1x VGA, 1x HDMI, 2x DP, 2x USB 2.0, 3x USB 3, 1x USB-C, 4x SATA, 2x M.2 slot
  • Built-in WiFi and Bluetooth
  • Warranty: 1 year

8,200 8,700

Estimated delivery on 30 April - 1 May, 2024

Available payments upon Checkout:
Cash, COD, GGives, Credit Cards, Online Banking.
Also available via Home Credit (in-store process)
Compare
Brand

Gigabyte

Memory Type

DDR5-INTEL

Form Factor

mATX

Socket

LGA1700

CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
Chipset Intel® B760 Express Chipset
Memory 14th and 13th Generation Intel® Core™ i9/i7 Processors:
DDR5 up to 7600mhz13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:
Support for DDR5 up to 4800mhz

Dual channel memory architecture
Support for Extreme Memory Profile (XMP) memory modules

Ports for Display 1x VGA
1x HDMI
2x DP
Audio Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots 1 x PCI Express x16 slot
2 x PCI Express x1 slots
Storage Interface 2 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
USB 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports on the back panel
4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x parallel port header
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Back Panel Connectors 2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x DisplayPorts
3 x USB 3.2 Gen 1 ports
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x RJ-45 port
3 x audio jacks
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
