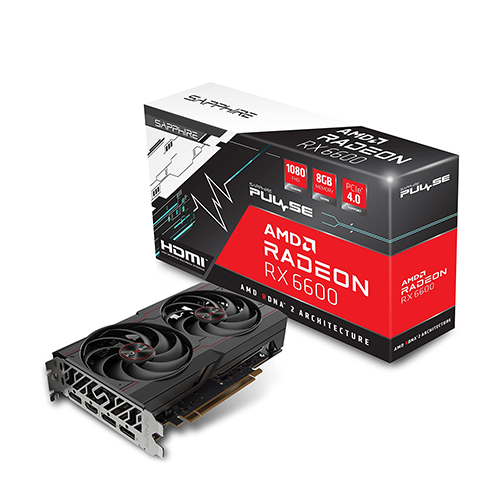

Brand | Sapphire |
---|---|
Model | AMD RX 6000 Series |
GPU | AMD Radeon™ RX 6600 Graphics Card 7nm GPU AMD RDNA™ 2 Architecture |
Engine Clock | Boost Clock: Up to 2491 MHz Game Clock: Up to 2044 MHzBoost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary. |
Stream Processors | 1792 |
Infinity Cache | 32MB |
Ray Accelerators | 28 |
Memory Size/Bus | 8GB GDDR6 |
Memory Clock | 14 Gbps Effective |
Displays | Maximum 2 Displays |
Resolution | HDMI™: 7680×4320 DisplayPort1.4: 7680×4320 |
Interface | PCI-Express 4.0 x8 |
Output | 1x HDMI 3x DisplayPort |
BIOS Support | UEFI |
Game Index | 1080P |
Sapphire Features | Premium Digital Power Design
Fuse Protection Dual-X Cooling Technology Intelligent Fan Control Precision Fan Control Metal Backplate Two-Ball Bearing Fans TriXX Supported TriXX Boost |
AMD Features | AMD RDNA™ 2 Gaming Architecture DirectX® 12 Ultimate Hardware Raytracing Smart Access Memory Infinity Cache 7nm GPU PCI® Express 4.0 Support AMD FreeSync™ Technology DisplayPort™ 1.4 with DSC HDMI™ Video Streaming up to 8K Radeon™ VR Ready Premium AMD FidelityFX Radeon™ Image Sharpening Radeon™ Anti-Lag Radeon™ Software Game Driver Optimizations |
Cooling | Dual Fans |
Form Factor | 2 slot, ATX Dimension: 193(L)X 120.05(W)X 40.05(H)mm |
Power Consumption | 140W (Board Power) |
OS | Linux®, Windows® 7*, Windows® 10, and Windows 11. 64-bit operating system required
*Does not support all features including but not limited to Hardware Raytracing |
System Requirement | Minimum 500 Watt Power Supply 1 x 8-pin Power Connector. PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended. |
