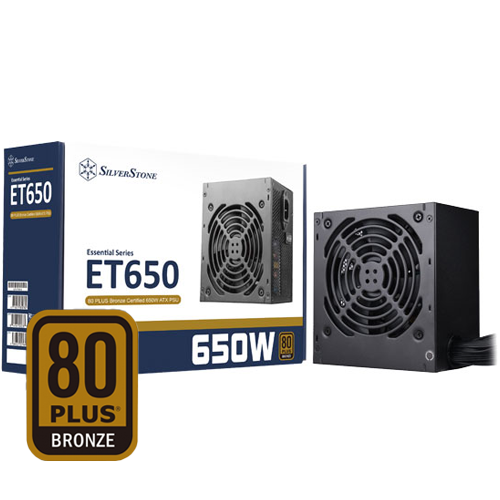

Silverstone ET650-B 650W BRONZE
Availability:
Out of stock
- High efficiency with 80 PLUS Bronze certification
- 24/7 continuous power output with 40℃ operating temperature
- Class-leading single +12V rail
- Silent running 120mm fan with 18 dBA
- PCI-E 8pin and PCI-E 6pin connectors support
- All-black flat cables design
- Dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support (V1.4)
SOLD OUT
Out of stock
Compare| Product No. | SST-ET650-B |
| Max. DC Output | 650W |
| Combined +3.3V & +5V | 120W |
| Combined +12V | 600W |
| Input Voltage | 90 ~ 264 Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC（PF>0.9 at full load） |
| Efficiency | 82% ~ 85% @ 20% ~ 100% loading |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 40°C |
| Protection | Over current protection Over power protection Over voltage protection Short circuit protection Over temperature protection |
| Cooling System | Single 120mm silent fan |
| Noise Level | 18dBA minimum |
| Certification | 80 PLUS Bronze |
| Form factor | ATX |
| Dimension | 150 mm (W) x 86 mm (H) x 140 mm (D) |
| Weight | 1.59 Kg |
| Connectors | 1 x 24 / 20-Pin motherboard connector（500mm）
1 x 8-Pin EPS and 1 x 4-Pin + 4-Pin ATX 12V connector (750mm / 150mm) 4 x 8 / 6-Pin PCIE connector（”500mm / 150mm” x 2） 6 x SATA connector（”500mm / 150mm / 150mm” x 2） 3 x 4-Pin Peripheral connector（500mm / 150mm / 150mm） 1 x 4-Pin Floppy connector（500mm / 150mm / 150mm / 150mm） |
