| Brand | Silverstone |
|---|---|
| PSU Form Factor | ATX |
| Color |
Black（Lead-Free Paint）
|
| Combined +3.3V & +5V |
120W
|
| Combined +12V |
552W
|
| Input Voltage |
180V~264V
|
| Input Frequency Range |
47Hz~63Hz
|
| PFC |
Active PFC（PF>0.9 at full load）
|
| Efficiency |
82% ~ 85% at 20% ~ 100% loading
|
| MTBF |
100,000 hours
|
| Operating temperature |
0°C ~ 40°C
|
| Protection |
Over power protection
Over voltage protection Short circuit protection |

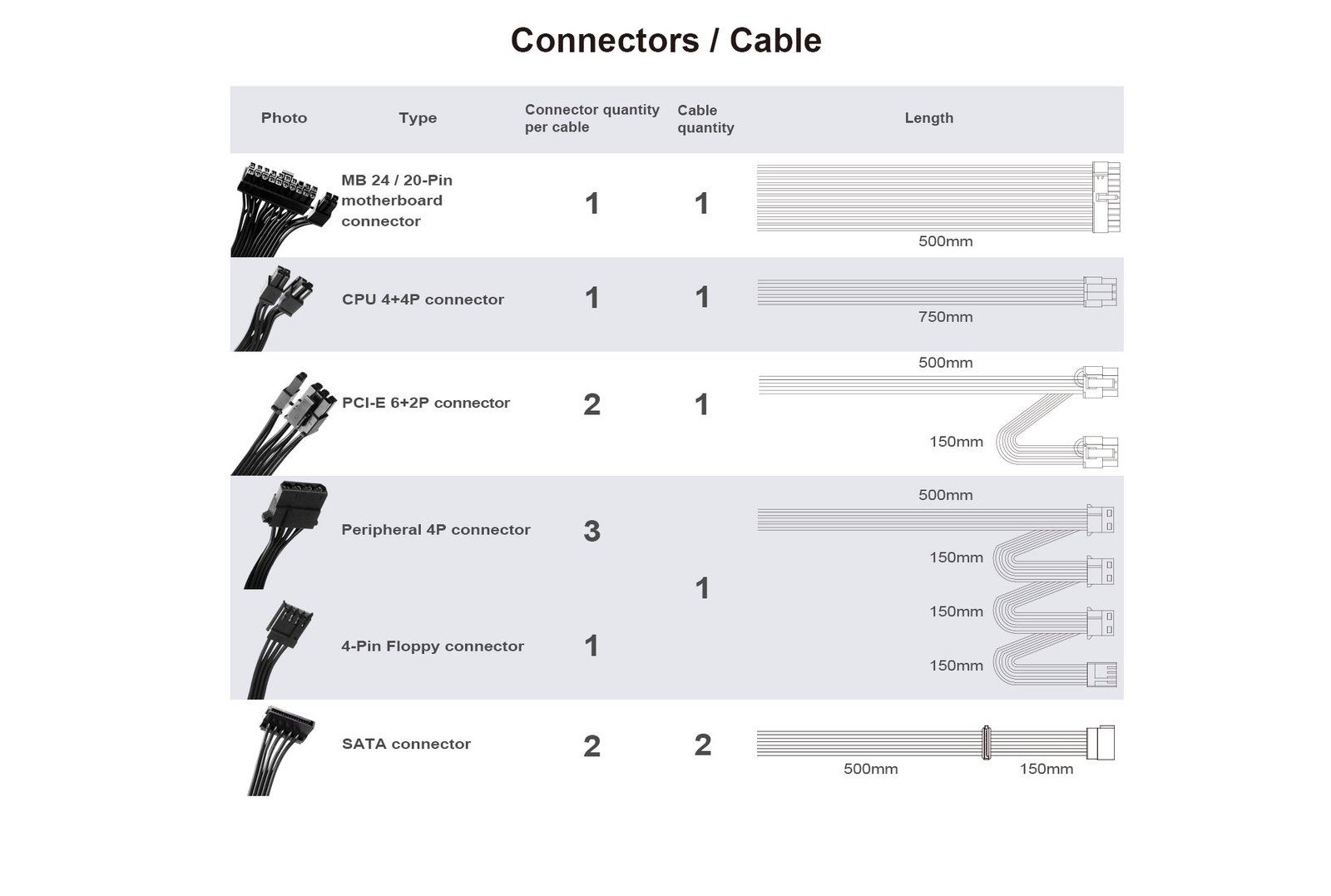

| Connectors |
1 x 24 / 20-Pin motherboard connector（500mm）
1 x 8 / 4-Pin EPS / ATX 12V connector（750mm） 2 x 8 / 6-Pin PCIE connector（”500mm / 150mm”） 4 x SATA connector（”500mm / 150mm” x 2） 3 x 4-Pin Peripheral connector（500mm / 150mm / 150mm） 1 x 4-Pin Floppy connector（500mm / 150mm / 150mm / 150mm） |
| Cooling System |

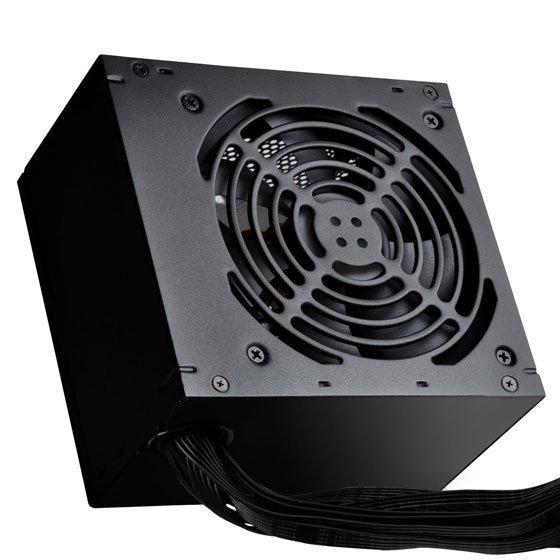

Single 120mm silent fan
|
| Form factor |
ATX
|
| Noise Level |
18 dBA minimum
|
| Dimension |
150 mm (W) x 86 mm (H) x 140 mm (D)
5.91″ (W) x 3.39″ (H) x 5.51″ (D) |
| Weight |
1.41 kg
|
| Certification |
80 PLUS
|
| Other |
Compatible with ATX12V v2.4
|
