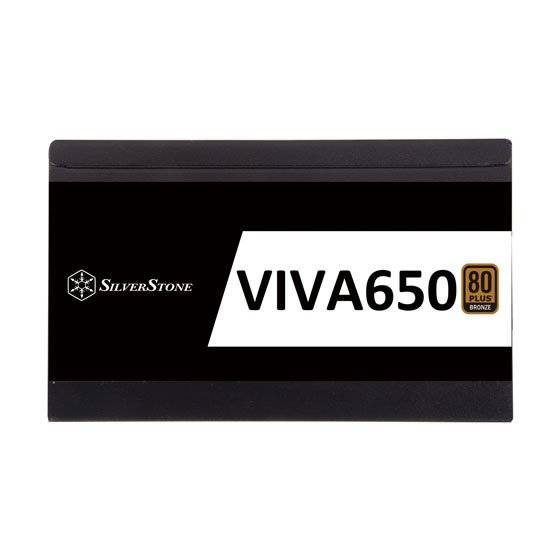

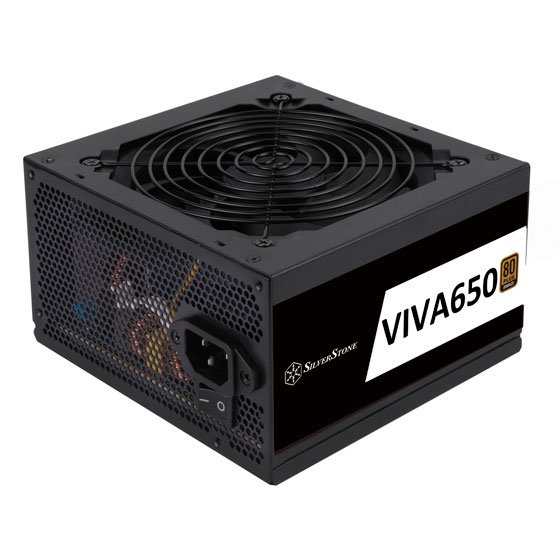

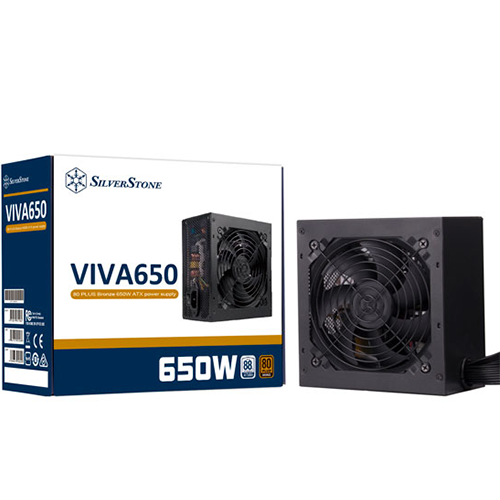

Silverstone VIVA 650W BRONZE
Availability:
Out of Stock
- High efficiency with 80 PLUS Bronze certification
- 24/7 continuous power output with 40℃ operating temperature
- Class-leading single +12V rail
- Silent running 120mm fan with 18 dBA minimum

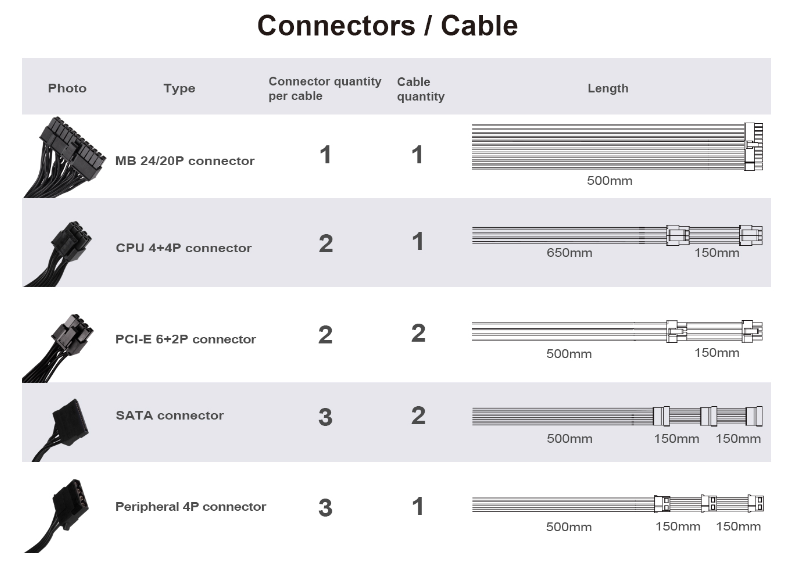

- PCIe 8 pin and PCIe 6 pin connectors support
- All black flat cables
- Multiple protection circuitry
- Active PFC
Note: Price may change without notice! Message us by clicking "Inquire now" for the updated price and availability.
SOLD OUT
Out of Stock
| Max. DC Output | 650W |
| Color | Black（Lead-Free Paint） |

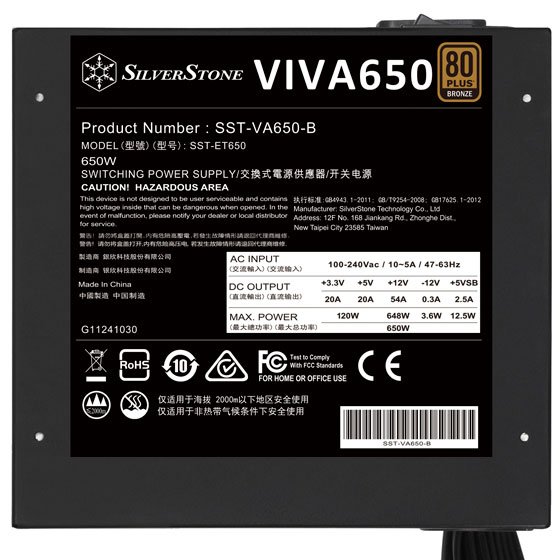

| Model (safety certification) | SST-ET650 |
| Combined +3.3V & +5V | 120W |
| Combined +12V | 648W |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC（PF>0.9 at full load） |
| Efficiency | 82% ~ 85% (at 20% ~ 100% loading) |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 40°C |
| Protection | Over power protection Over voltage protection Short circuit protection |

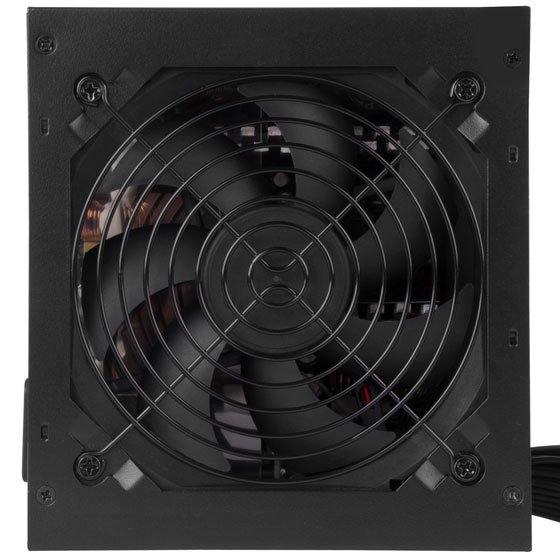

| Cooling System | Single 120mm silent fan |
| Form factor | ATX |
| Noise Level | 18dBA minimum |
| Dimension | 150 mm (W) x 86 mm (H) x 140 mm (D) |
| Weight | 1.52kg |
| Load Range | |||||
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
|---|---|---|---|---|---|
| Max.(Amps) | 20A | 20A | 54A | 3.0A | 0.3A |
| Peak (Amps) | / | / | / | / | / |
| Min.(Amps) | 2.05A | 2.05A | 9.2A | 0.41A | 0.05A |
| Range (%) | ±5% | ±5% | ±5% | ±5% | ±10% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 50mV | 50mV | 120mV | 50mV | 120mV |
