AM4

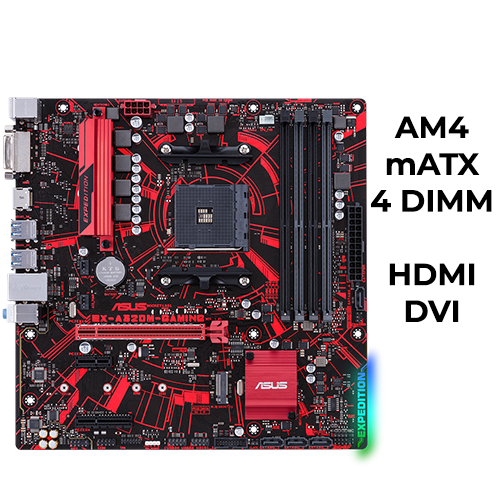

ASUS EX A320M GAMING
Availability:
Out of stock
- Non-stop action: The best choice for iCafés, built-to-order gaming systems and quality-driven businesses.
- Non-stop durability: Unbeatable features including anti-moisture coating, gold-plated PCIe x16 and LAN design, USB Guard, plus 5X Protection III.
- Non-stop gaming: Aura sync, ASUS Beyond VR ready, Epic audio experiences
- Non-stop challenger: ASUS iCafe LAB-certified reboot- and compatibility-tested for diskless-system use, top games and 100+ peripherals, 1000+ CPUs, memory modules, graphics cards, and more.
SOLD OUT
Out of stock
Compare| CPU | AMD AM4 Socket for AMD Ryzen™/7th Generation A-series/Athlon™ Processors Supports CPU up to 8 cores |
| Chipset | AMD A320 |
| Memory | 4 x DIMM, Max. 64GB |
| Graphic | Integrated Graphics Processor Multi-VGA output support : HDMI/DVI-D ports – Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz – Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 2048 MB |
| Expansion Slots | AMD Ryzen™ Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD 7th Generation A-series/Athlon™ Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD A320 chipset 1 x PCIe 2.0 x4 (x2 mode) 1 x PCIe x1 |
| Storage | AMD Ryzen™ Processors : 1 x M.2 x4 Socket 3(SATA 6Gb/s & PCI-E Gen3 x4 link), AMD 7th Generation A-series/Athlon™ Processors : 1 x M.2 Socket 3, AMD A320 chipset : 4 x SATA 6Gb/s port(s), |
| LAN | Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) |
| Audio | Realtek® ALC887 8-Channel High Definition Audio CODEC Audio Feature : – Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals – Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity – Unique de-pop circuit: Reduces start-up popping noise to audio outputs |
| USB Ports | 6 x USB 3.0 port(s) (4 at back panel, , 2 at mid-board) |
| Special Features | ASUS 5X Protection III : – ASUS SafeSlot Core: Fortified PCIe Slot prevents damage – ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! – ASUS Overvoltage Protection: World-class circuit-protecting power design – ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! – ASUS DIGI+ VRM: 6 Phase digital power design Non-stop Durability : – Anti-moisture coating – Outstanding protection against moisture and corrosion – USBGuard- 120% higher voltage tolerance Non-stop Gaming : – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals – Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity – Unique de-pop circuit: Reduces start-up popping noise to audio outputs Non-stop Challenger : – ASUS iCafe Labs Certified – Top games and 100+ peripherals tested AURA : – Aura Lighting Control – Aura RGB Strip Headers – Aura Lighting Effects Synchronization with compatible ASUS ROG devices ASUS Q-Design : – ASUS Q-Slot – ASUS Q-DIMM Digi+VRM |
| Back I/O Ports | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 1 (blue) 2 x USB 2.0 3 x Audio jack(s) |
| Internal I/O Ports | 1 x AAFP connector 1 x RGB Header(s) 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x 14-1 pin TPM connector 1 x COM port header 1 x AIO PUMP Header |
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
