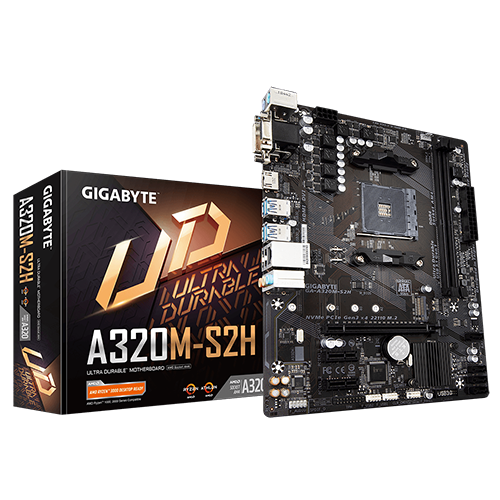

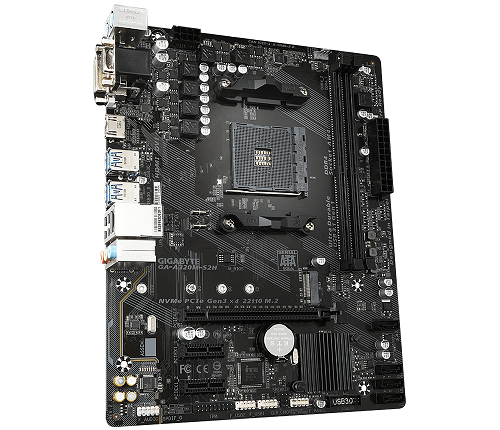

Gigabyte A320M S2H

Gigabyte
Availability:

Out of stock


  • Supports AMD 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • Hybrid Digital VRM Solution with Low RDS(on) MOSFETs
  • Ultra-Fast NVMe PCIe 3.0 x4 & SATA Mode M.2
  • Multiple Display with HDMI, DVI and D-Sub
  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software
  • Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
  • Anti-Sulfur Resistors Design

SOLD OUT

Out of stock

Compare
Brand

Gigabyte

CPU AM4 Socket: Supports AMD 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors
Chipset AMD A320
Memory 2 x DDR4 DIMM sockets supporting up to 64 GB
Onboard Graphics 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz

1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.

1 x HDMI port, supporting a maximum resolution of 4096×2160@24 Hz
* Support for HDMI 1.4 version.

Audio Realtek® audio codec
LAN Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* Actual support may vary by CPU.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
Storage Interface 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2(Note) SSD support)
* Actual support may vary by CPU.4 x SATA 6Gb/s connectors
USB 2 x USB 3.1 Gen 1 ports available through the internal USB header

6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2×10 pin, for the GC-TPM2.0 module only)
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header

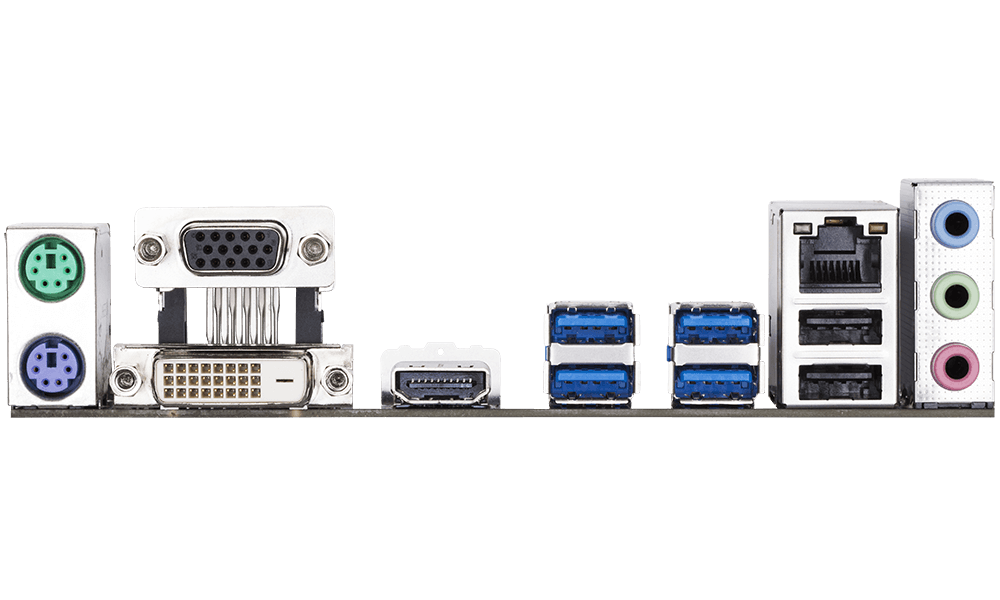

Back Panel Connectors 1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)
Form Factor Micro ATX Form Factor; 24.4cm x 19.5cm
