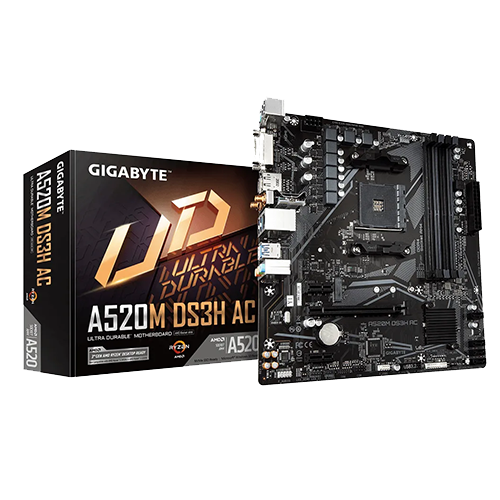

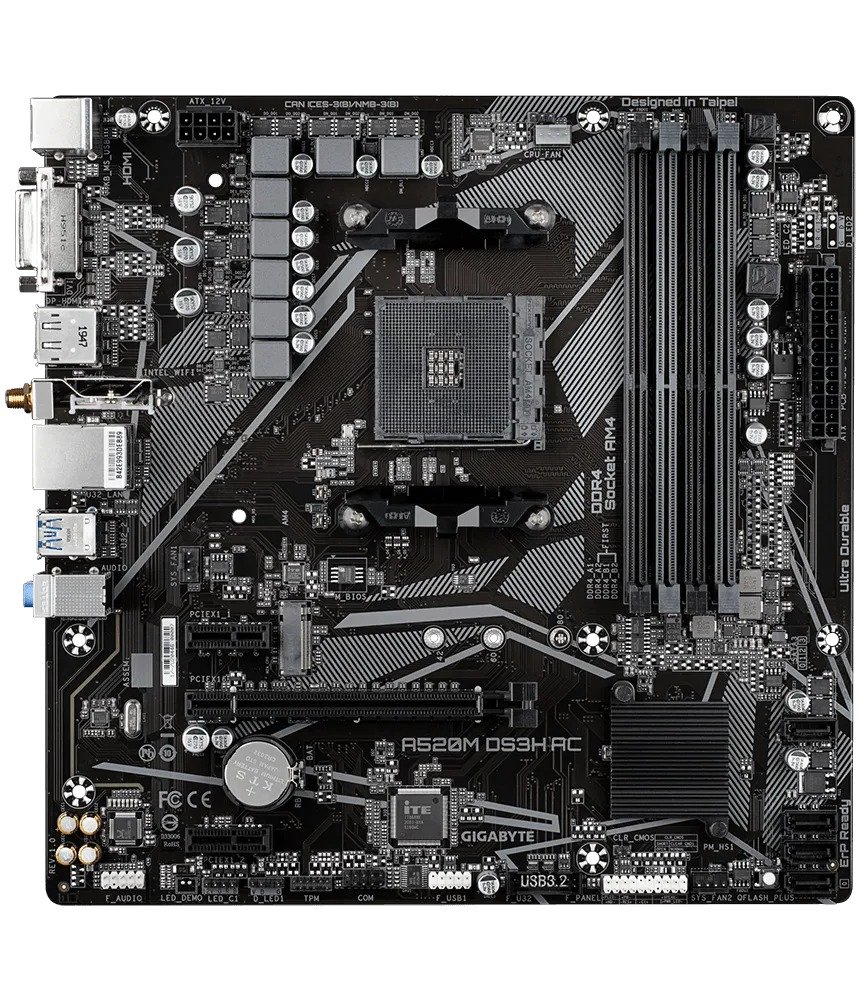

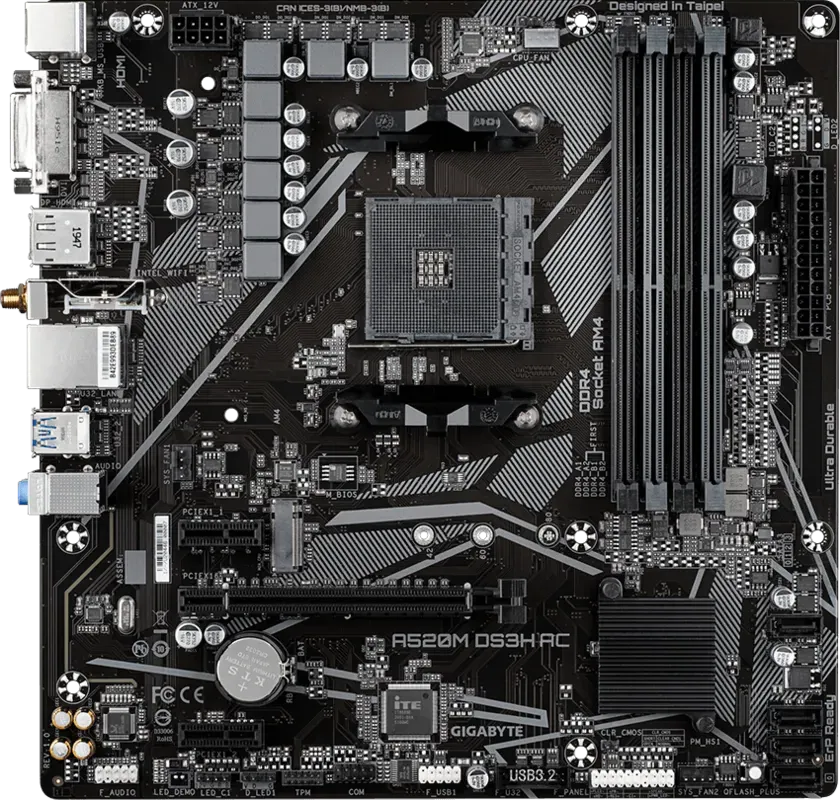

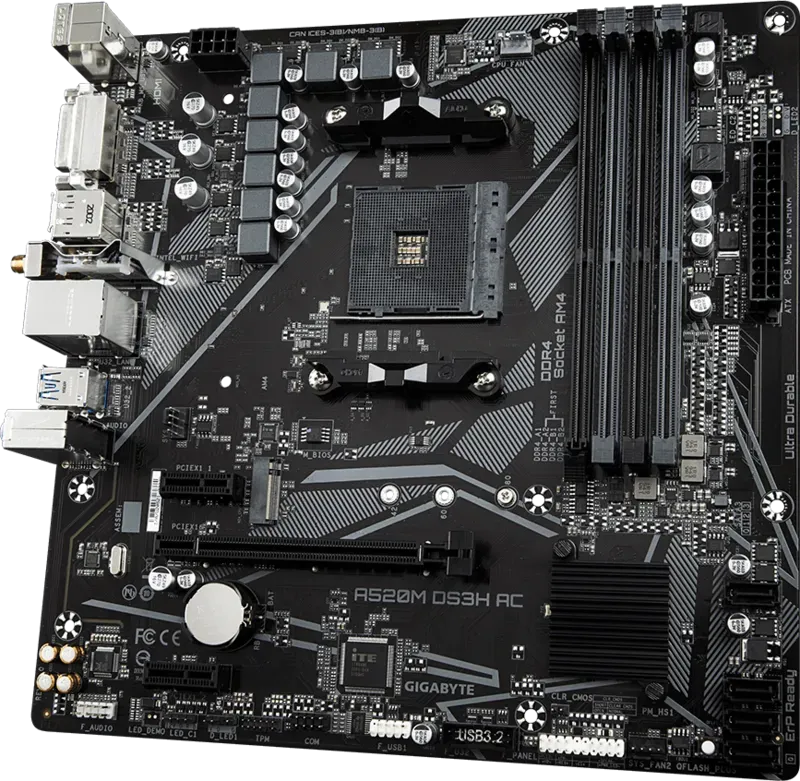

Gigabyte A520M DS3H AC (WIFI/Bluetooth)

Availability:

Out of stock
Add to wishlist
Compare

SOLD OUT

Out of stock

Compare

More info @ https://www.gigabyte.com/Motherboard/A520M-DS3H-AC-rev-1x#kf

CPU AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
Chipset AMD A520
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  2. AMD Ryzen™ 5000 G-series / Ryzen™ 5000 Series/ 3rd Generation AMD Ryzen™ processors:
    Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  3. 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
    Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  4. Dual channel memory architecture
  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  7. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:

  1. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  2. 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz
    * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
  3. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Support for up to 3 displays at the same time
Maximum shared memory of 16 GB
Audio
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
LAN Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
Wireless Communication module
  1. WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 4.2
  3. Support for 11ac wireless standard and up to 433 Mbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

Chipset:

  1. 2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2)
Storage Interface CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)

Chipset:

  1. 4 x SATA 6Gb/s connectors
  2. Support for RAID 0, RAID 1, and RAID 10
USB CPU:

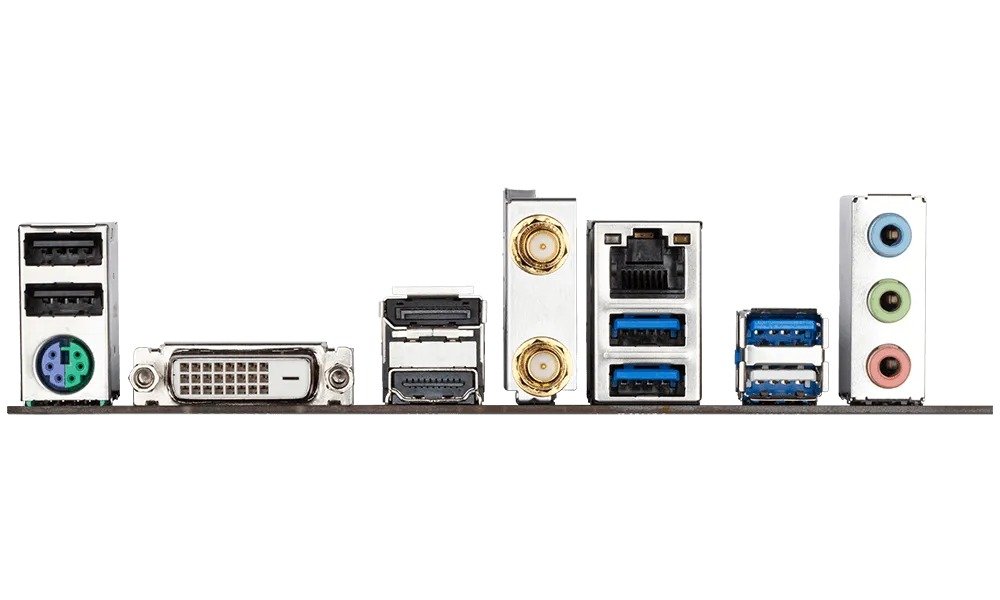

  1. 4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

  1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
  2. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
