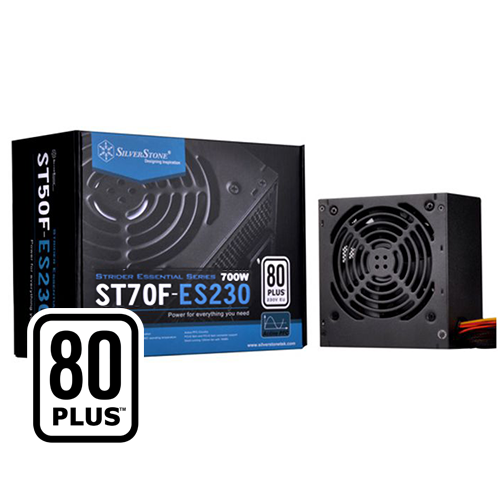

| Product No. | SST-ST70F-ES230 |
| Max. DC Output | 700W |
| Combined +12V | 648W |
| Combined +3.3V & +5V | 130W |
| Input Voltage | 180V~264V |
| Input Frequency Range | 47Hz~63Hz |
| PFC | Active PFC（PF>0.9 at full load） |
| Efficiency | 82% ~ 85% at 20% ~ 100% loading |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 40°C |
| Protection | Over power protection Over voltage protection Short circuit protection |
| Cooling System | Single 120mm silent fan |
| Noise Level | 18 dBA minimum |
| Certification | 80 PLUS |
| Form factor | ATX |
| Dimension | 150 mm (W) x 86 mm (H) x 140 mm (D) |
| Weight | 1.43 kg |
| Connectors | 1 x 24 / 20-Pin motherboard connector（500mm）
1 x 8 / 4-Pin EPS / ATX 12V connector（750mm） 4 x 8 / 6-Pin PCIE connector（”500mm / 150mm” x 2） 4 x SATA connector（”500mm / 150mm” x 2） 3 x 4-Pin Peripheral connector（500mm / 150mm / 150mm） 1 x 4-Pin Floppy connector（500mm / 150mm / 150mm / 150mm） |
