Silverstone ST50F-ES230 500W 80+


  • High efficiency with 80 PLUS certification
  • 24/7 continuous power output with 40℃ operating temperature
  • Class-leading single +12V rail
  • Active PFC Circuitry
  • PCI-E 8pin and PCI-E 6pin connector support
  • Silent running 120mm fan with 18dBA

1,950 2,150

Estimated delivery on 1 - 3 October, 2023
Compare
Model No. SST-ST50F-ES230
Max. DC Output
500W
Input Voltage
180 ~ 264Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC.(PF>0.9 at Full Load)
Efficiency
82%~85% @ 20% ~ 100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over power protection (OPP)
Over voltage protection (OVP)
Short circuit protection (SCP)
Cooling System
Silent 120mm fan
Noise Level
18 dBA minimum
Dimension
150 mm (W) x 86 mm (H) x 140 mm (D)
5.91″ (W) x 3.39″ (H) x 5.51″ (D)
Weight
1.31kg
Certification
80 PLUS

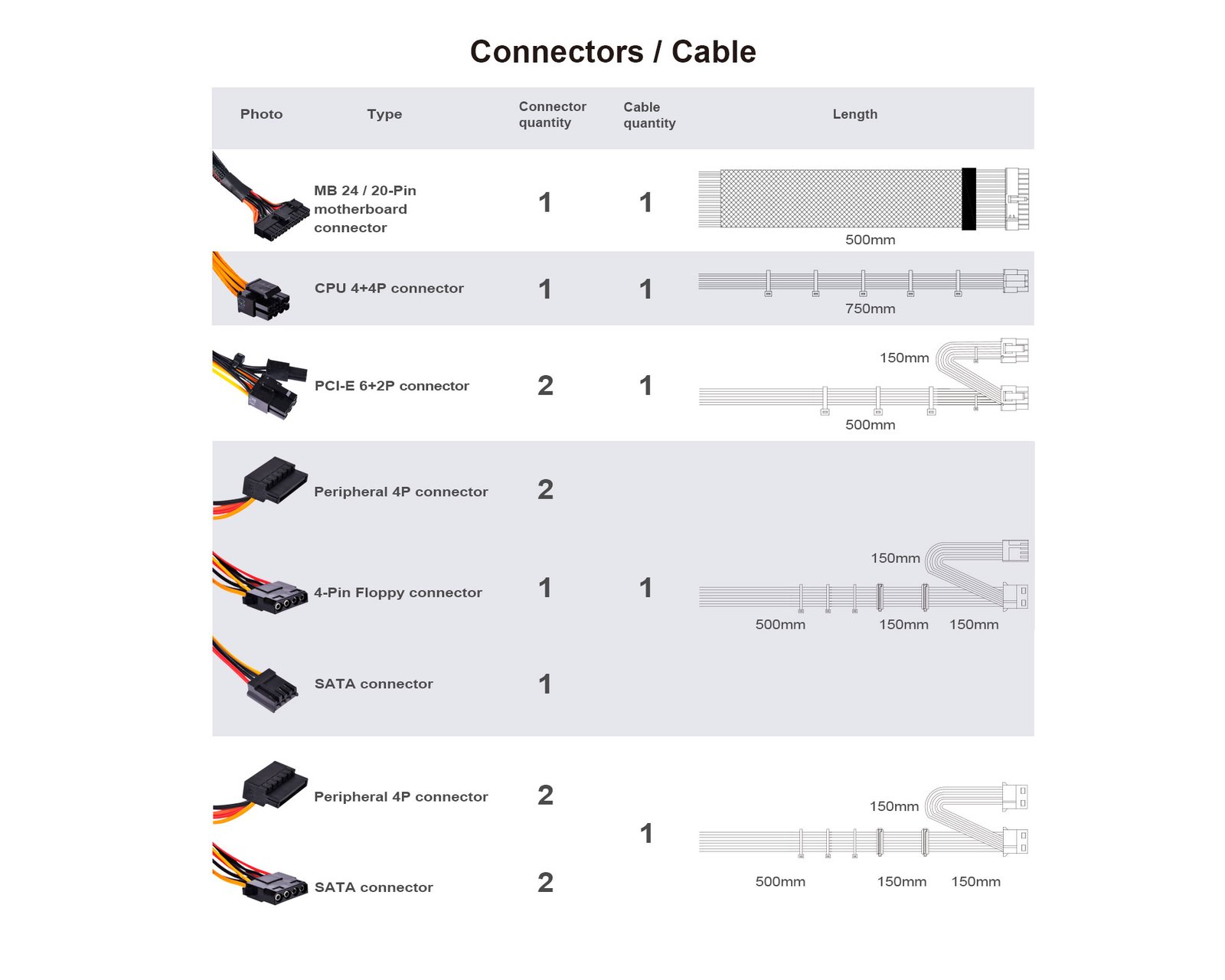

Connectors
1 x 24 / 20-Pin motherboard connector(500mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(750mm)
2 x 8 / 6-Pin PCIE connector(”500mm / 150mm”)
2 x SATA connector and
1 x 4-Pin Peripheral connector and
1 x 4-Pin Floppy connector (500mm / 150mm / 150mm / 150mm)
2 x SATA connector and
2 x 4-Pin Peripheral connector(500mm / 150mm / 150mm / 150mm)
