-6%

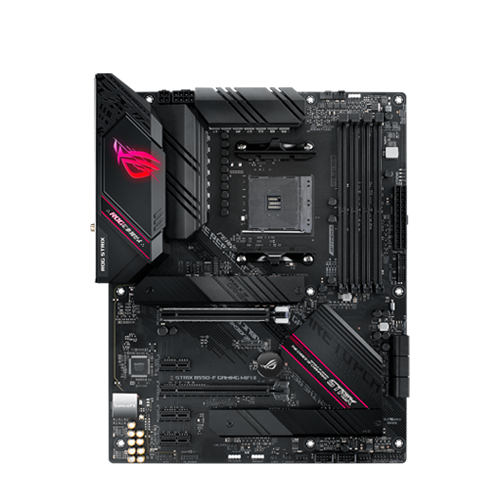

ASUS ROG STRIX B550-F GAMING WIFI II

Availability:

Out of stock
Add to wishlist
Compare
  • Form Factor: ATX
  • Socket: AM4 (Ryzen 2000, 3000, 4000, 5000 series)
  • Memory Type: DDR4
  • RAM Slot: 4
  • SATA Port: 6
  • M.2 Slot: 2 (1x Gen4, 1x Gen3)
  • Display Connector: HDMI, VGA
  • WiFi/Bluetooth: WIFI 6E 2.4/5GHz, Bluetooth 5.2
  • 3-Pin ARGB Sync: Yes

SOLD OUT

Out of stock

Compare
Socket

AM4
Memory Type

DDR4
Brand

ASUS
Form Factor

ATX
CPU AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset B550
Memory 4 x DIMM, Max. 128GB, DDR4
Graphics 1 x DisplayPort 1.2
1 x HDMI® 2.1
*Graphics specifications may vary between CPU types
Expansion Slots 1 x PCIe 4.0 x16 SafeSlot (supports x16 mode)

1 x PCIe 3.0 x16 slot (supports x4 mode)*

3 x PCIe 3.0 x1 slots

*Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3
Storage Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Ethernet 1 x Intel® 2.5Gb Ethernet
1 x Intel® I225-V 2.5Gb EthernetASUS LANGuard
Wireless & Bluetooth Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)Supports 2.4/5/6GHz frequency band*Bluetooth v5.2
USB
Rear USB:Total 8 ports

2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports

Front USB:Total 6 ports

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio

ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A

– Impedance sense for front and rear headphone outputs
– Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/192kHz playback*

Audio Features
– SupremeFX Shielding Technology
– Dual OP Amplifiers
– Premium audio capacitors
– Audio cover

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 8-Channel audio.
Back Panel I/O Ports

2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports
1 x Wi-Fi Module
1 x DisplayPort
1 x HDMI® port
1 x Intel® I225-V 2.5G Ethernet
1 x Optical S/PDIF out
5 x Audio jacks
1 x BIOS FlashBackTM button
Internal I/O Connectors

Fan and cooling related
1 x 4-Pin AIO_Pump header
1 x 4-Pin CPU fan header
1 x 4-Pin CPU_OPT fan header
3 x 4-Pin Chassis fan headers

Power related
1 x 24-pin main power connector
1 x 8-pin +12V power connector
1 x 4-pin +12V power connector

Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous
1 x Addressable Gen 2 header
2 x AURA RGB headers
1 x Clear CMOS header
1 x Front panel audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal sensor header
1 x Thunderbolt™ header
Special Features

ASUS Q-Design
– ASUS Q-DIMM
– ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)
– ASUS Q-Slot

ASUS Thermal Solution
– M.2 heatsink

AURA Sync
– AURA RGB headers
– Addressable Gen 2 RGB headers

ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Clear CMOS header
– ProCool
– Pre-mounted I/O shield
– SafeSlot
Accessories

Cables
1 x Addressable RGB extension cable
4 x SATA 6Gb/s cables

Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Rubber Package
1 x M.2 SSD screw package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card

Installation Media
1 x Support DVD
Documentation
1 x User manual
Form Factor

ATX
30.5cm x 24.4cm
