AM4

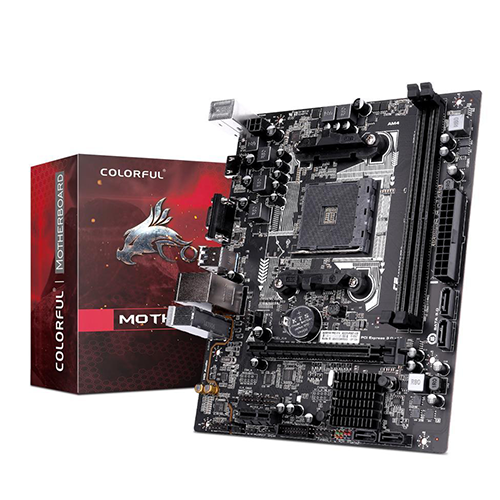

Colorful A320M-K PRO (HDMI/VGA)
Availability:
Out of stock
- AMD AM4 socket
- Supports Dual Channel DDR4 2666(OC)/2400/2133MHz memory
- 4*SATA3.0 ports
- RTL8111H 1000M LAN
- Realtek ALC662 6-ch audio chipset
- VGA+HDMI ports
- 4*USB2.0 and 4*USB3.0 ports(include headers)
- Audio isolated LED light
SOLD OUT
Out of stock
Compare| Motherboard Series | AMD chipset, COLORFUL series |
| Chipset | AMD A320 |
| Processor | AMD Ryzen™ processor supporting AM4 interface/AMD Ryzen processor with integrated Radeon graphics core (*The above specifications are for reference only, please visit Colorful official website for the latest processor support list) |
| Memory | 2 DIMM slots，support dual channel DDR4 2666（OC）/2400/2133MHz memory |
| Graphics Support | 1*PCI Express3.0X16 slot |
| SATA Ports | 4*SATA3.0 6Gb/s ports |
| Board I/O | 2*PS2 ports，1*VGA port,1*HDMI port,1*RJ45 lan，3*audio ports,4*USB2.0 and 4*USB3.0(including headers) |
| Expansion Slots | 1*PCI Express x1 slot; |
| BIOS | 128M UEFI |
| Power Management | support 65W processors |
| Hardware Monitor | CPU Fan speed Controlled，SYSTEM Fan speed Monitoring,CPU Temperature Monitoring，System Temperature Monitoring，and Voltage monitoring |
| LAN | Realtek RTL8111H 1000M LAN，Provides 10/100/1000Mb Ethernet |
| Audio | ALC662 6-channel audio chipset |
| Configuration | 180 x 215 mm mATX |
| Other Features | Support S4, S5 wake-up;Support startup after power failure, timing boot, network S5 wake-up |
