AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
Chipset
AMD A520
Memory
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Onboard Graphics
Integrated Graphics Processor:
1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface
CPU:
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset:
4 x SATA 6Gb/s connectors
USB
CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

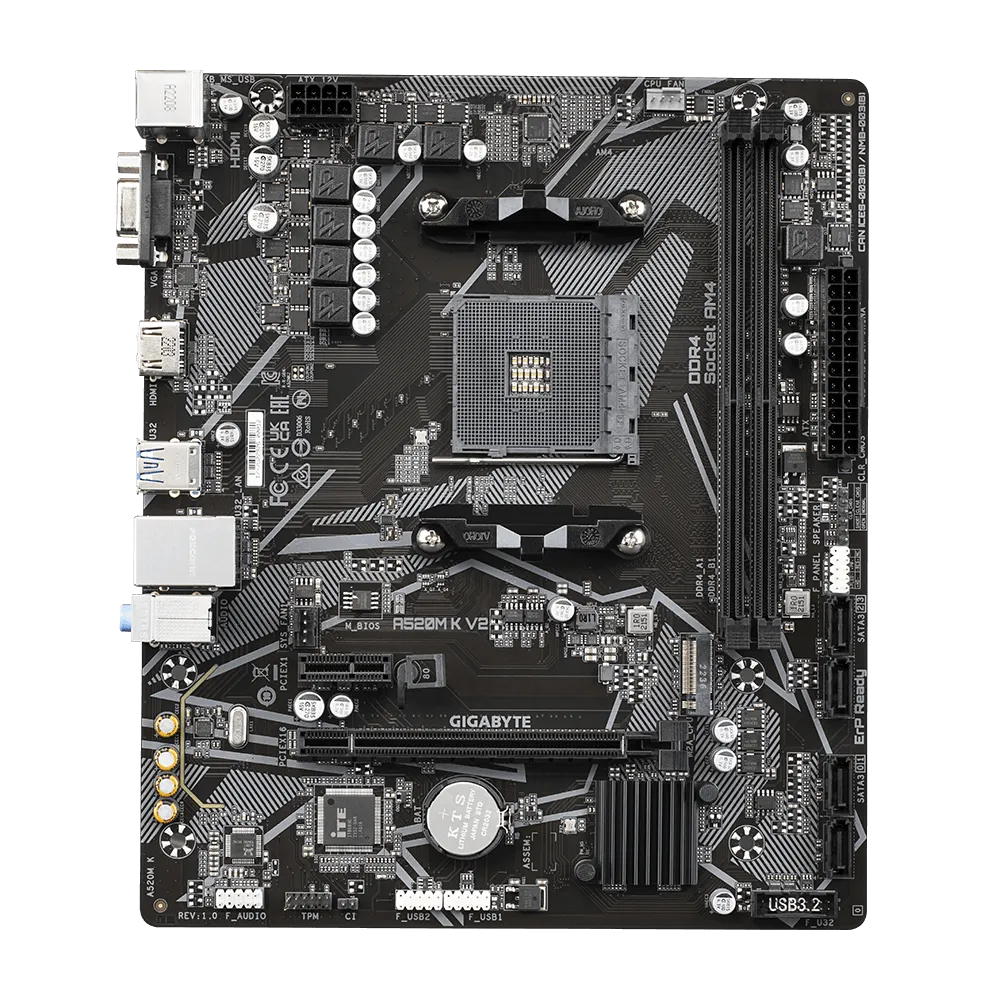

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header

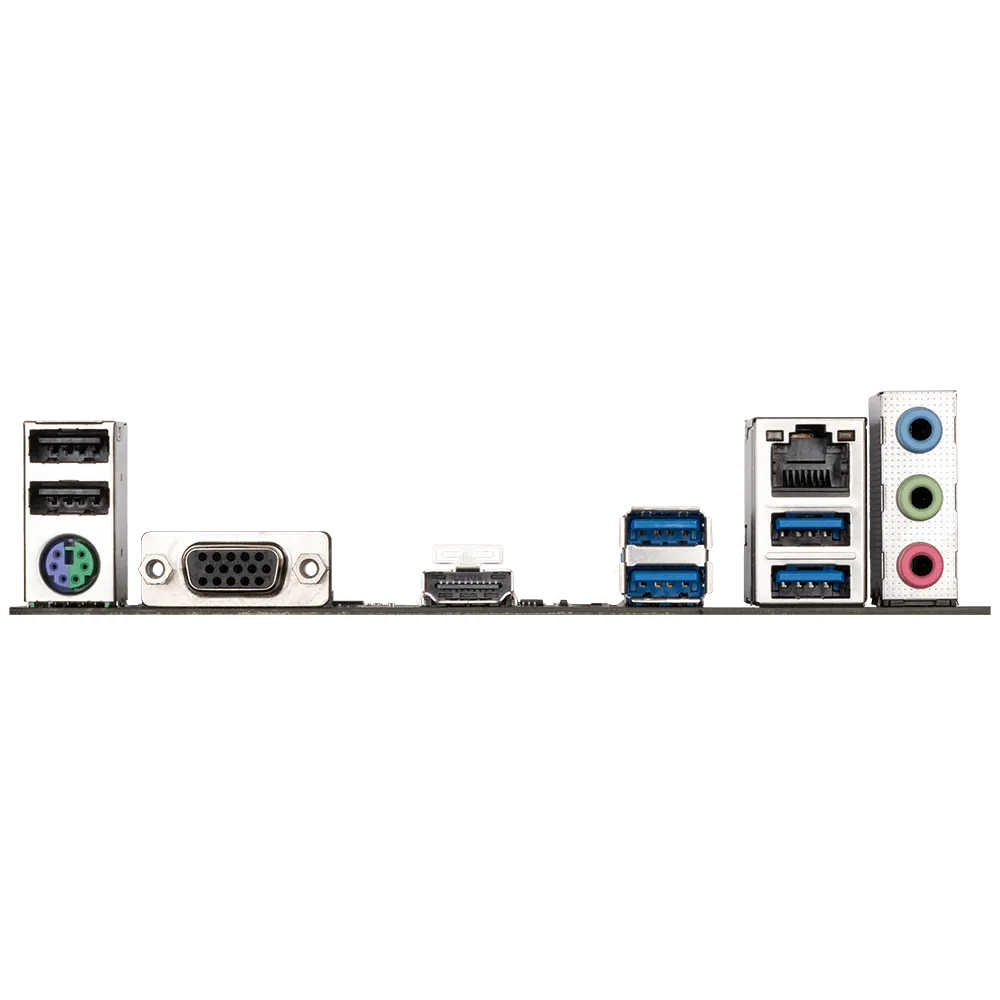

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
