Gigabyte B550M AORUS PRO AX (w/ WiFi/Bluetooth)

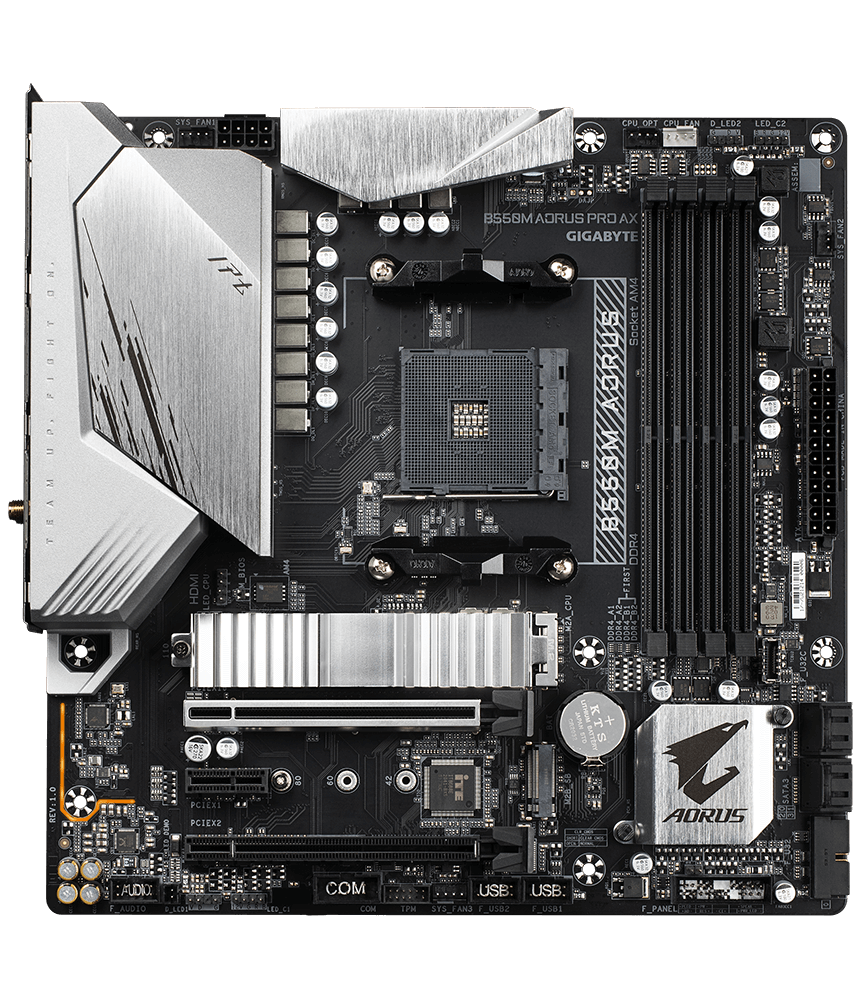

Gigabyte B550M AORUS PRO AX (w/ WiFi/Bluetooth) - Image 2

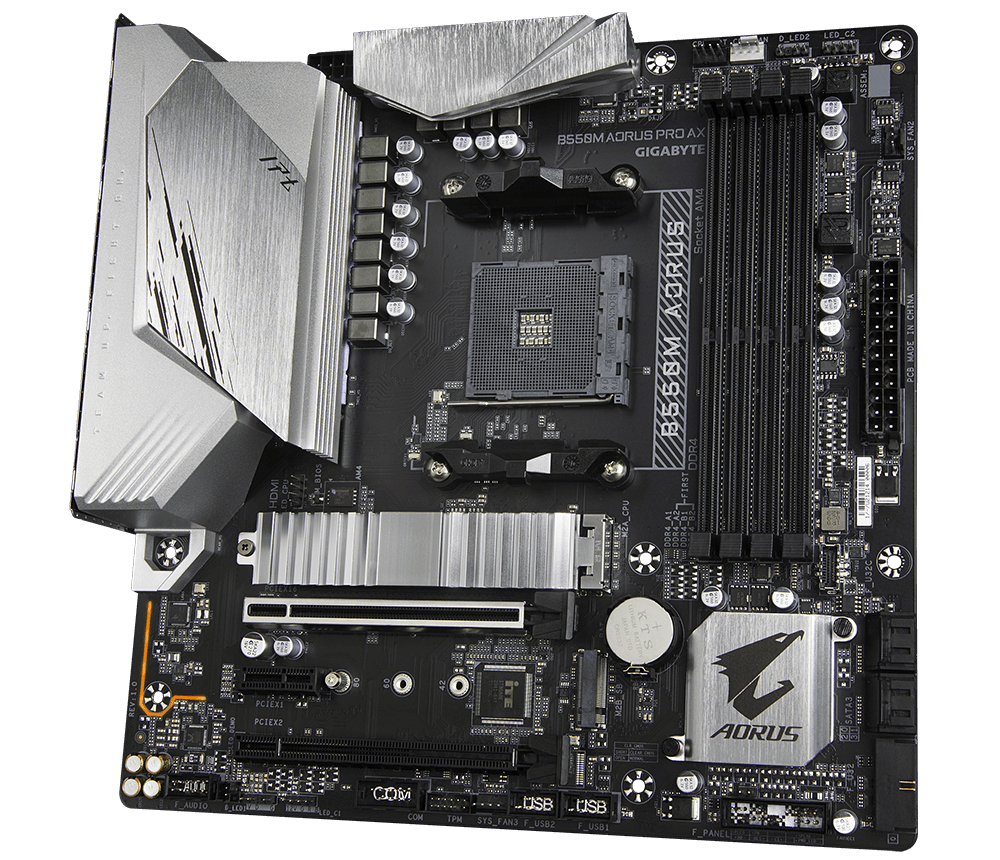

Gigabyte B550M AORUS PRO AX (w/ WiFi/Bluetooth) - Image 3

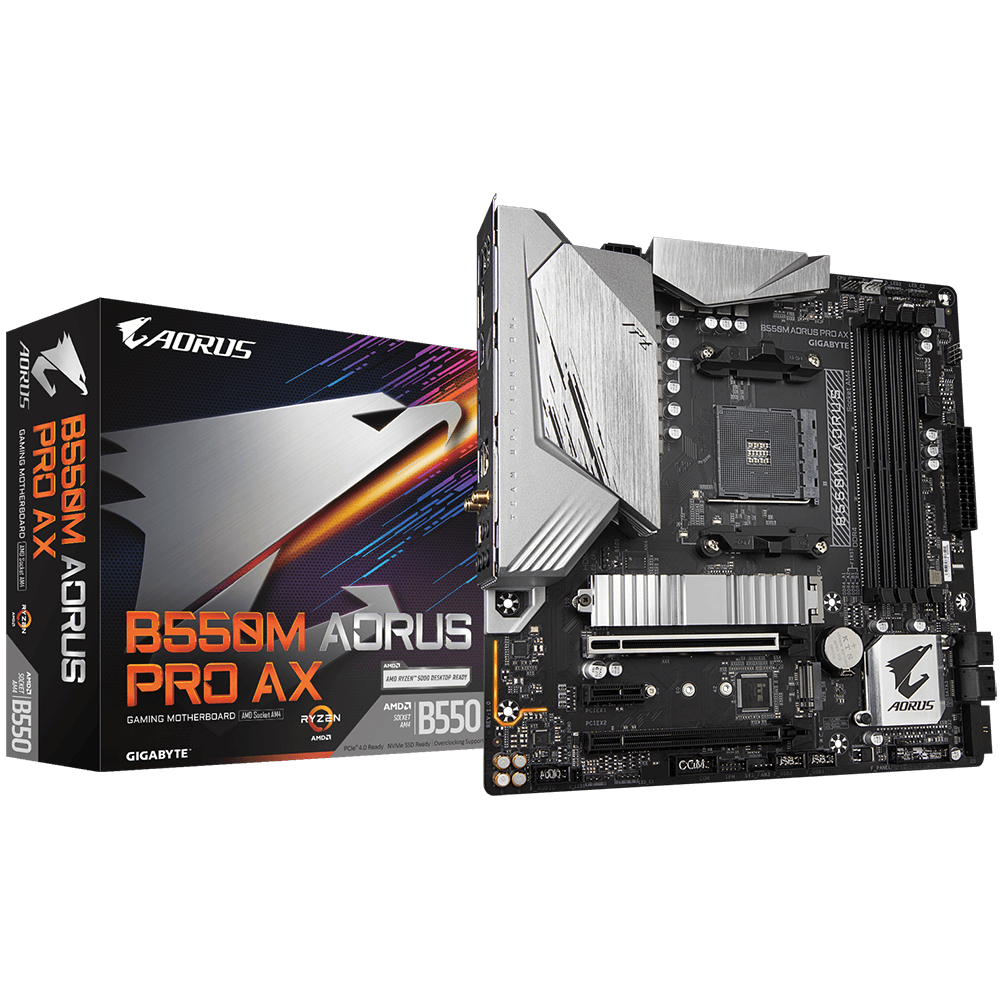

Gigabyte B550M AORUS PRO AX (w/ WiFi/Bluetooth) - Image 4

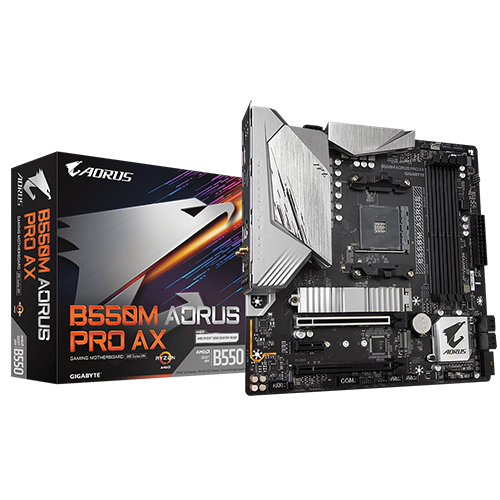

Gigabyte B550M AORUS PRO AX (w/ WiFi/Bluetooth)

Availability:

Out of stock
Add to wishlist
Compare
  • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • 10+2 Phases Digital Twin Power Design with 50A DrMOS
  • Advanced Thermal Design with Enlarged VRM Heatsinks
  • Ultra Durable™ PCIe 4.0 Ready x16 Slot
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with One Thermal Guard
  • Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • AMP-UP Audio with ALC1200 and Premium Audio Capacitors
  • Blazing Fast 2.5GbE LAN with Bandwidth Management
  • DisplayPort & HDMI for Multiple Display
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Pre-installed IO Shield for Easy and Quick Installation

SOLD OUT

Inquire Now!

Note: Price may change without notice! Message us by clicking "Inquire now" for the updated price and availability.

DIY PC Builder

DIY PC Packages

Out of stock

Compare
CPU AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
Chipset AMD B550
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  2. Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
    * ECC memory (ECC mode) support varies by CPU
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor:

  1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
  2. 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz
    * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

Maximum shared memory of 16 GB
Audio
  1. Realtek® ALC1200 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LAN Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication module Intel® Wi-Fi 6 AX200

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5.1
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

  1. AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
  2. AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:

  1. Supporting PCIe 3.0 x2 mode

1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:

  1. Supporting PCIe 3.0 x1 mode
Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

  1. 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
  2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:

  1. Supporting SATA and PCIe 3.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors, integrated in the Chipset:

  1. Support for RAID 0, RAID 1, and RAID 10
USB CPU:

  1. 3 x USB 3.2 Gen 1 ports on the back panel
  2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

CPU+1 USB 2.0 Hub:

  1. 2 x USB 2.0/1.1 ports on the back panel

Chipset:

  1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
  2. 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
  3. 2 x USB 3.2 Gen 1 ports available through the internal USB header
  4. 3 x USB 2.0/1.1 ports (2 ports on the back panel, 1 port available through the internal USB header)

Chipset+1 USB 2.0 Hub:

  1. 3 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 3 x system fan headers
  6. 2 x addressable LED strip headers
  7. 2 x RGB LED strip headers
  8. 1 x CPU cooler LED strip/RGB LED strip header
  9. 2 x M.2 Socket 3 connectors
  10. 4 x SATA 6Gb/s connectors
  11. 1 x front panel header
  12. 1 x front panel audio header
  13. 1 x USB Type-C® header, with USB 3.2 Gen 1 support
  14. 1 x USB 3.2 Gen 1 header
  15. 2 x USB 2.0/1.1 headers
  16. 1 x serial port header
  17. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
  18. 1 x Clear CMOS jumper

＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

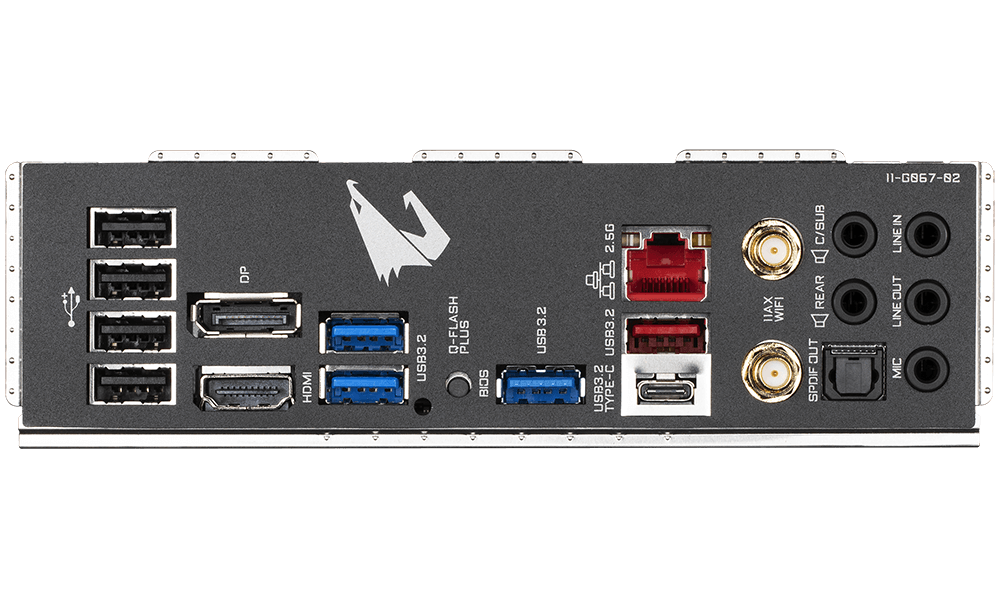

Back Panel Connectors
  1. 4 x USB 2.0/1.1 ports
  2. 2 x SMA antenna connectors (2T2R)
  3. 1 x DisplayPort
  4. 1 x HDMI port
  5. 3 x USB 3.2 Gen 1 ports
  6. 1 x USB 3.2 Gen 2 Type-A port (red)
  7. 1 x USB Type-C® port, with USB 3.2 Gen 2 support
  8. 1 x Q-Flash Plus button
  9. 1 x RJ-45 port
  10. 1 x optical S/PDIF Out connector
  11. 5 x audio jacks
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Form Factor
  1. Micro ATX Form Factor; 24.4cm x 24.4cm
