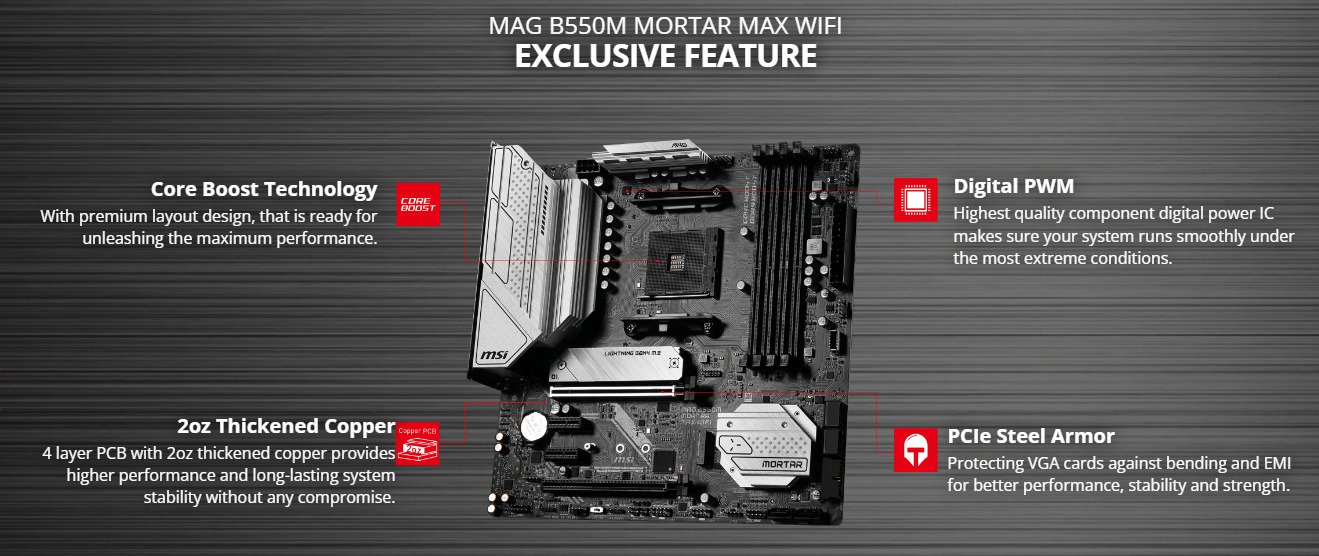

MSI B550M MORTAR MAX WIFI

Availability:

Out of stock


  • Form Factor: mATX
  • Socket: AM4 (Ryzen 2000, 3000, 4000, 5000 series)
  • Memory Type: DDR4
  • RAM Slot: 4
  • SATA Port: 6
  • M.2 Slot: 2 (1x Gen4, 1x Gen3)
  • Display Connector: HDMI, DP
  • WiFi/Bluetooth: WIFI 6E 2.4/5GHz, Bluetooth 5.2
  • 3-Pin ARGB Sync: Yes

SOLD OUT

Inquire Now!

Note: Price may change without notice! Message us by clicking "Inquire now" for the updated price and availability.

DIY PC Builder

DIY PC Packages

Out of stock

Compare

Category:
Socket

AM4

Memory Type

DDR4

Brand

MSI

Form Factor

mATX

PROCESSOR Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
CHIPSET AMD B550 Chipset
MEMORY 4x DDR4 memory slots, support up to 128GB
EXPANSION SLOT 1x PCIe 3.0/ 4.0 x16 slot (PCI_E1)
1x PCIe 3.0 x16 slot (PCI_E4), supports x4 mode
2x PCIe 3.0 x1 slots
MULTI-GPU Supports 2-Way AMD CrossFire™ Technology
ONBOARD GRAPHICS 1x HDMI 2.1 port, supports a maximum resolution of 4096×2160 @60Hz

Support HDCP 1.4 & 2.3
1x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz

STORAGE 6x SATA 6Gb/s ports
2x M.2 slots (Key M)

  • M2_1 slot (from AMD processor)
    • Supports PCIe 4.0/ 3.0 x4
    • Supports SATA 6Gb/s
    • Supports 2242/ 2260/ 2280 storage devices
  • M2_2 slot (from AMD B550 chipset)
    • Supports PCIe 3.0×4
    • Supports 2242/ 2260/ 2280 storage devices
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)

6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AUDIO Realtek® ALC1220P Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
WIRELESS LAN & BLUETOOTH® AMD® Wi-Fi 6E

  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX
  • Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.2
INTERNAL CONNECTORS
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 3x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 1xTPM module connector
  • 1x Clear CMOS jumper
BACK PANEL PORTS
  • DisplayPort 1.4
  • PS/2 Combo Port
  • 2.5G LAN Port
  • USB 3.2 Gen 2 10Gbps Type-A
  • Wi-Fi / Bluetooth Antenna
  • HD Audio Connectors
  • HDMI 2.1 Port
  • Flash BIOS Button
  • USB 2.0 Port
  • USB 3.2 Gen 1 5Gbps Type-A
  • USB 3.2 Gen 2 10Gbps Type-C
  • Optical S/PDIF OUT
DIMENSIONS Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
