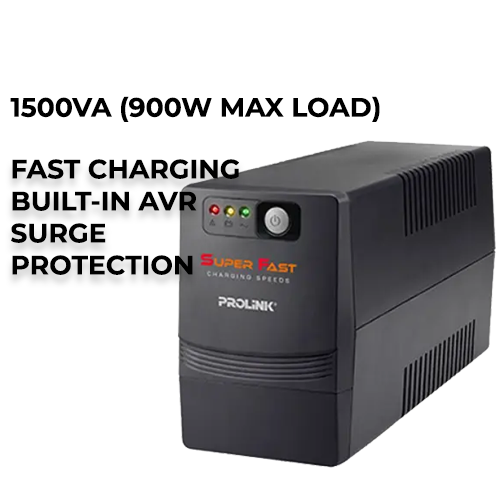

| Capacity | 1500VA (up to 900w concurrent load) |
| Dimension (mm) | 320 x 130 x 182 (D x W x H) |
| Weight (kg) | 10.4 |
| No. of socket | 4 |
| INPUT | |
| Nominal Voltage | 230VAC |
| Voltage Range |
140 – 300 VAC ± 5% |
| Nominal Frequency |
50 or 60Hz (Auto sensing) |
| OUTPUT | |
| Voltage Regulation |
± 10% |
| Frequency |
50 or 60Hz ± 1Hz |
| Transfer Time (typical) |
2 – 6ms |
| Waveform |
Simulated Sinewave |
| BATTERY | |
| Number of Battery | 12 V/10 Ah x 2 |
| Recharge Time (typical) |
2-4 hours recover to 90% capacity |
| ALAM / INDICATOR | |
| LED Display |
AC Mode – Green Lighting
Battery Mode – Yellow Flashing every 10 seconds Overload – Red Flashing every second Fault – Red Lighting |
| Sounding |
Battery Mode – Sounding every 10 seconds
Low Battery – Sounding every second Overload – Sounding every 0.5 second Battery Replacement Alarm – Sounding every 2 seconds Fault – Continuously sounding
|
