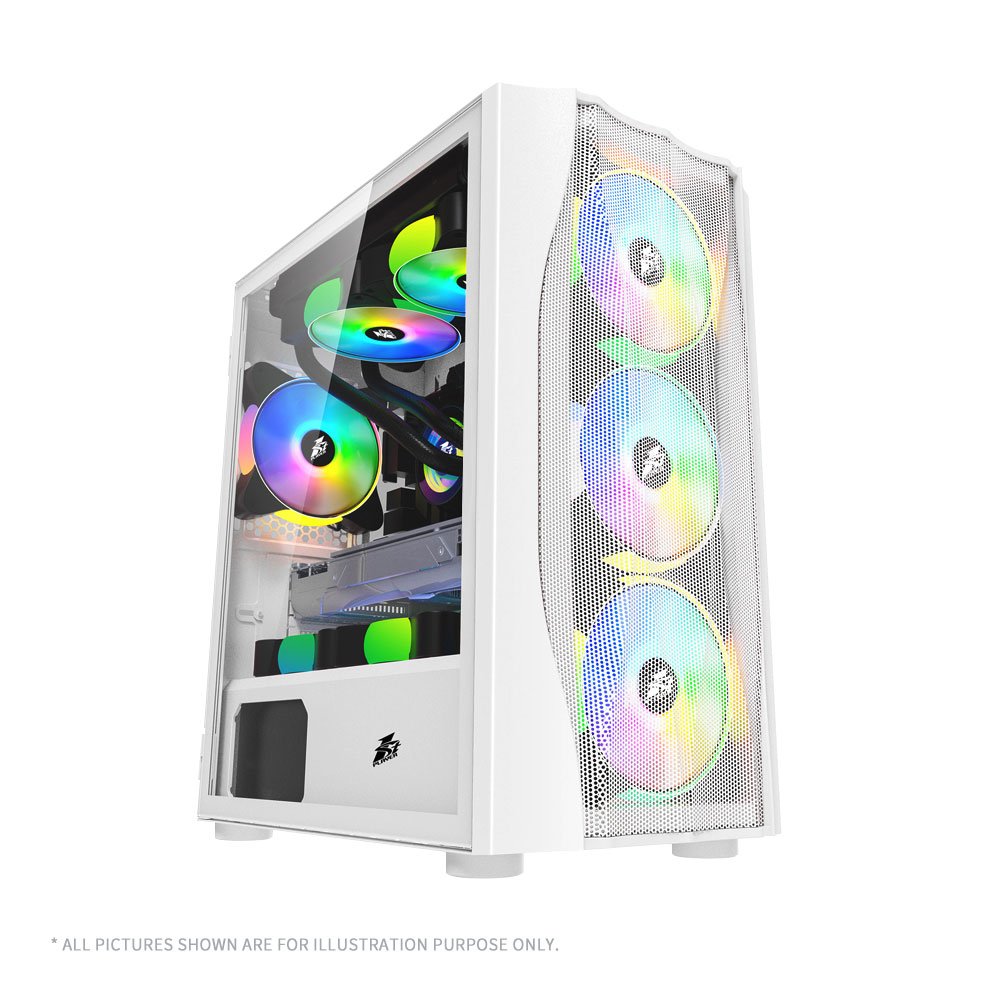

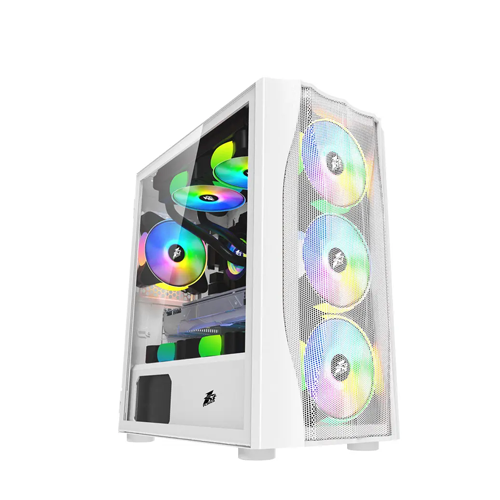

Model | X3-M |
Structure Dimensions(L*W*H) | 335*210*404MM |
Product Dimensions(L*W*H) | 388*210*423MM |
Structure Thickness | 0.5MM |
Materials | SPCC 0.5MM L&R side panel: Tempered Glass Front side panel: Metal Mesh |
Form Factor | M-ATX/ITX |
Drive Bays | 2x 3.5″ HDD + 2x 2.5″ SSD OR 1x 3.5″ HDD + 3x 2.5″ SSD |
CPU MAX Height | 160MM |
VGA MAX Length | 330MM |
I/O Panel | HD AUDIO+USB3.0*1+USB2.0*2 |
PCI Card Slot | 4 |
Fan Support | FRONT: 3x 120 MM REAR: 1x 120 MM TOP: 2x 120MM BOTTOM: 2x 120MM |
Liquid Cooling Support | TOP: 240 MM |
Power Supply Support | BOTTOM MOUNT(ATX) |
Net Weight | 4.5KG / 9.92lbs |
