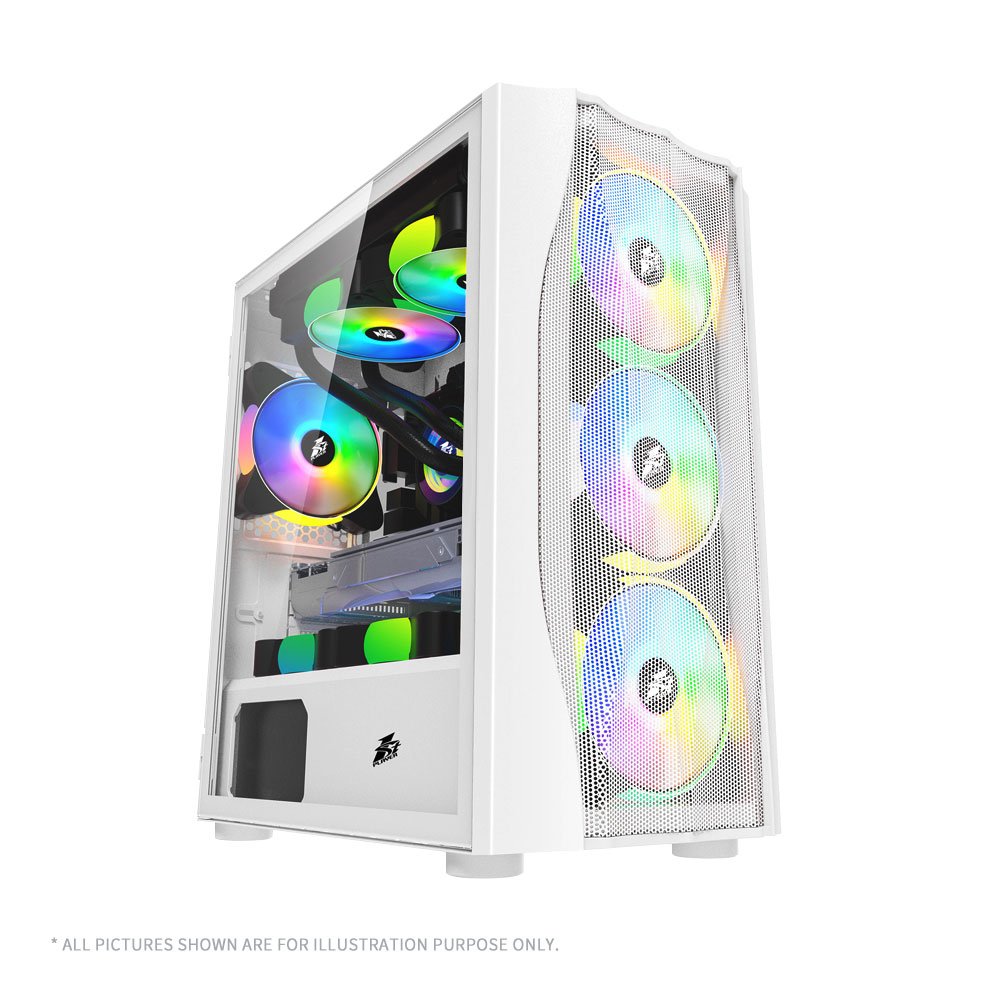

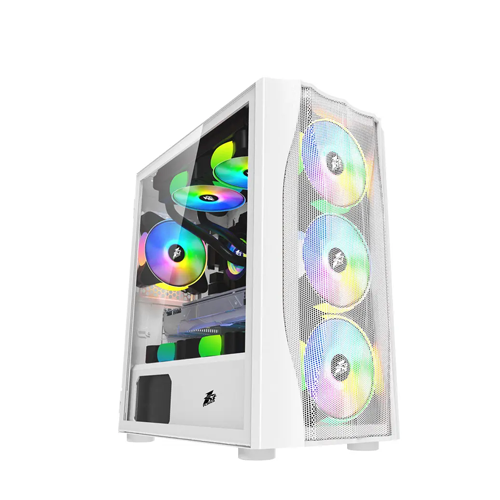

| Model | X3-M |
| Structure Dimensions(L*W*H) | 335*210*404MM |
| Product Dimensions(L*W*H) | 388*210*423MM |
| Structure Thickness | 0.5MM |
| Materials | SPCC 0.5MM L&R side panel: Tempered Glass Front side panel: Metal Mesh |
| Form Factor | M-ATX/ITX |
| Drive Bays | 2x 3.5″ HDD + 2x 2.5″ SSD OR 1x 3.5″ HDD + 3x 2.5″ SSD |
| CPU MAX Height | 160MM |
| VGA MAX Length | 330MM |
| I/O Panel | HD AUDIO+USB3.0*1+USB2.0*2 |
| PCI Card Slot | 4 |
| Fan Support | FRONT: 3x 120 MM REAR: 1x 120 MM TOP: 2x 120MM BOTTOM: 2x 120MM |
| Liquid Cooling Support | TOP: 240 MM |
| Power Supply Support | BOTTOM MOUNT(ATX) |
| Net Weight | 4.5KG / 9.92lbs |
