Motherboard

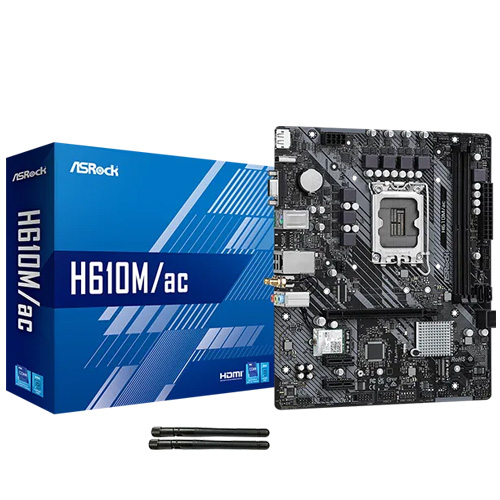

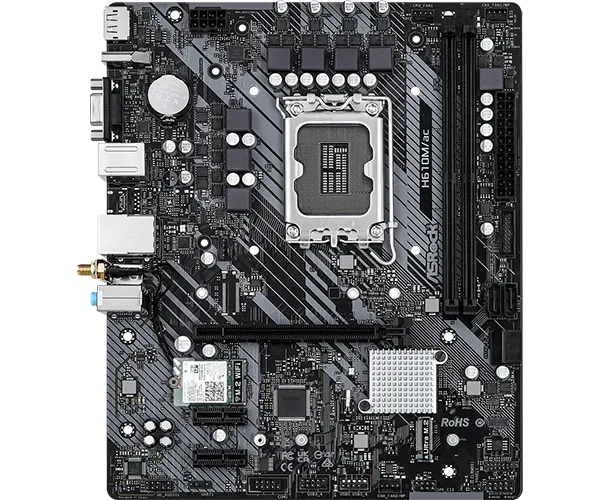

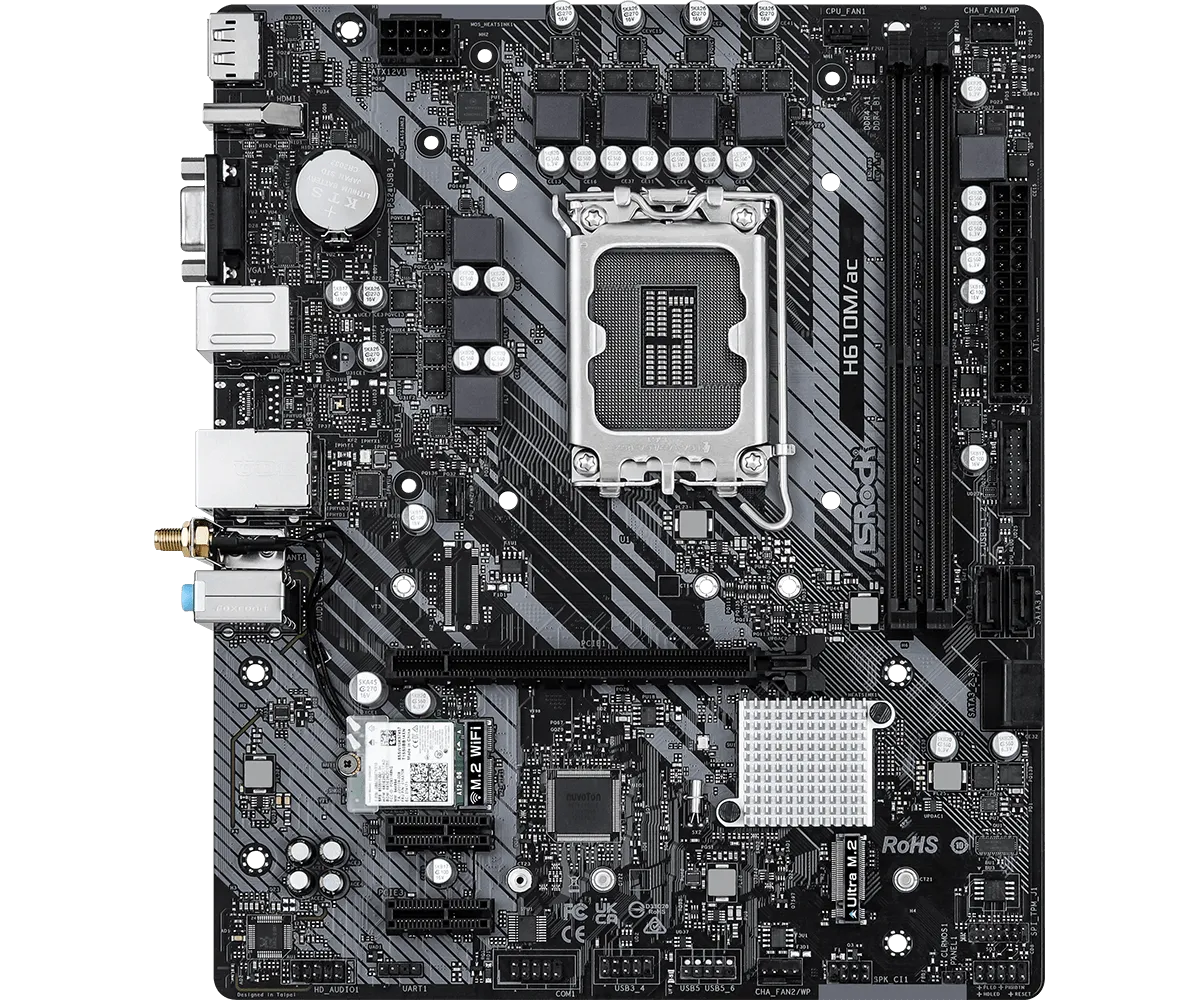

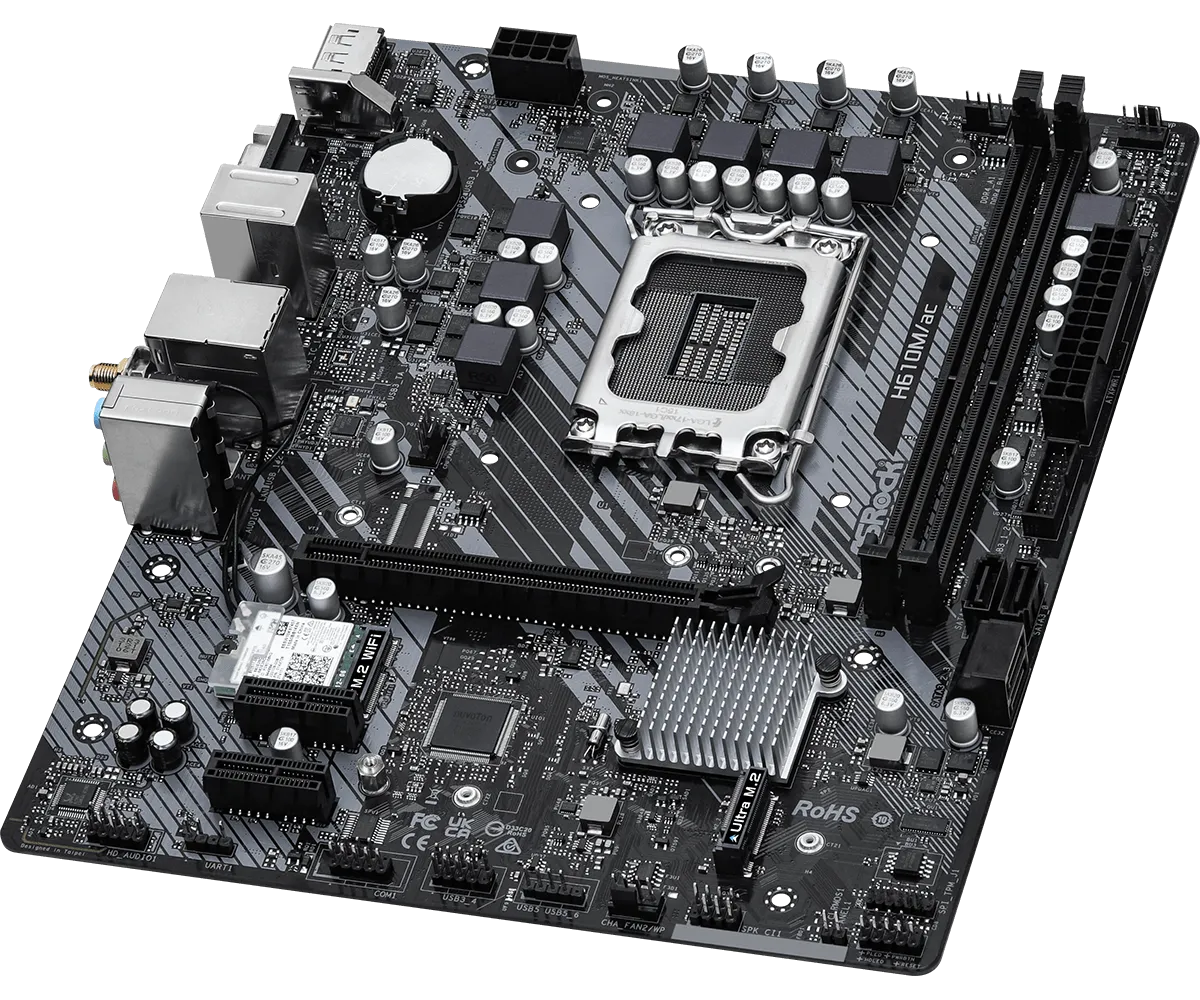

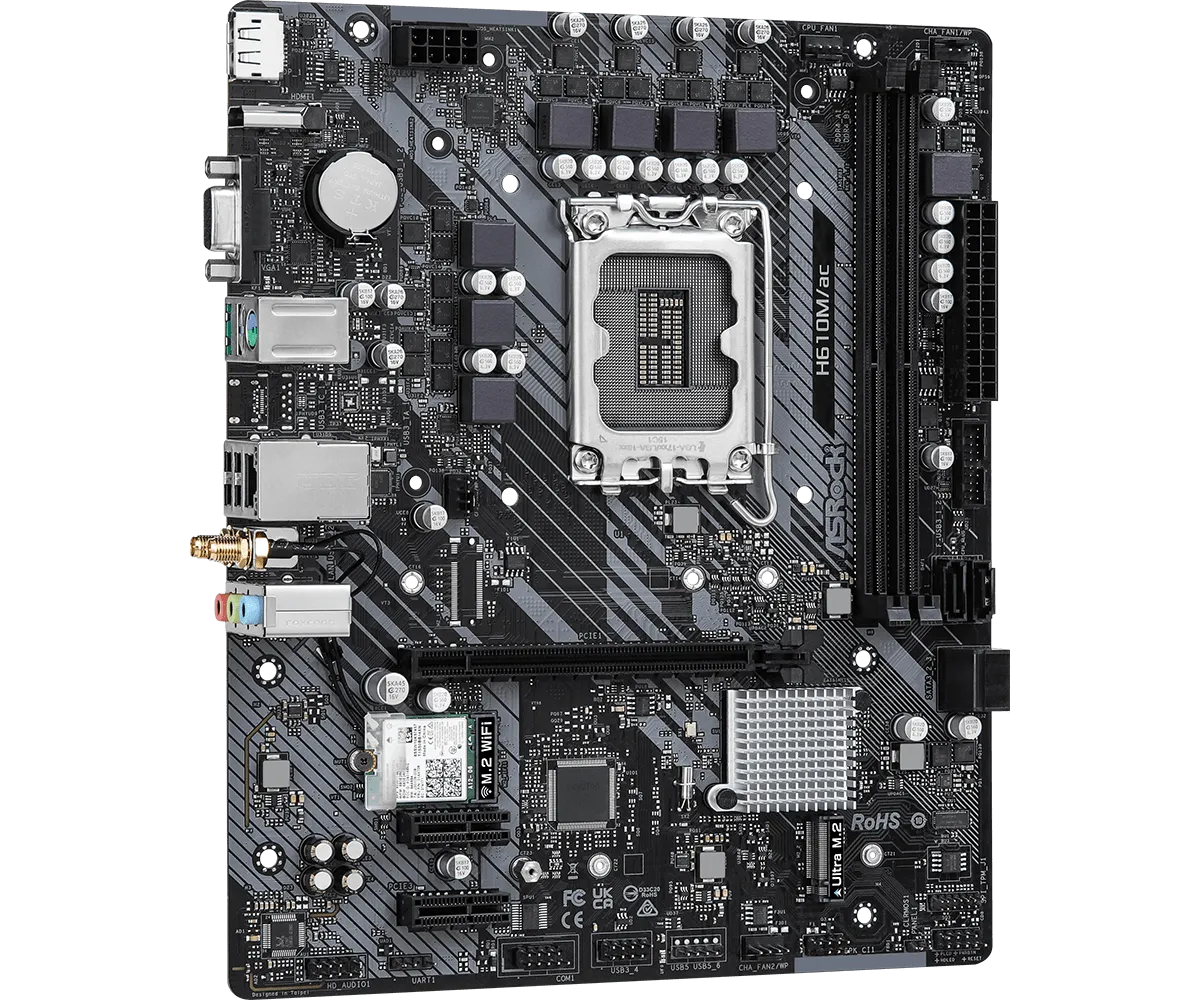

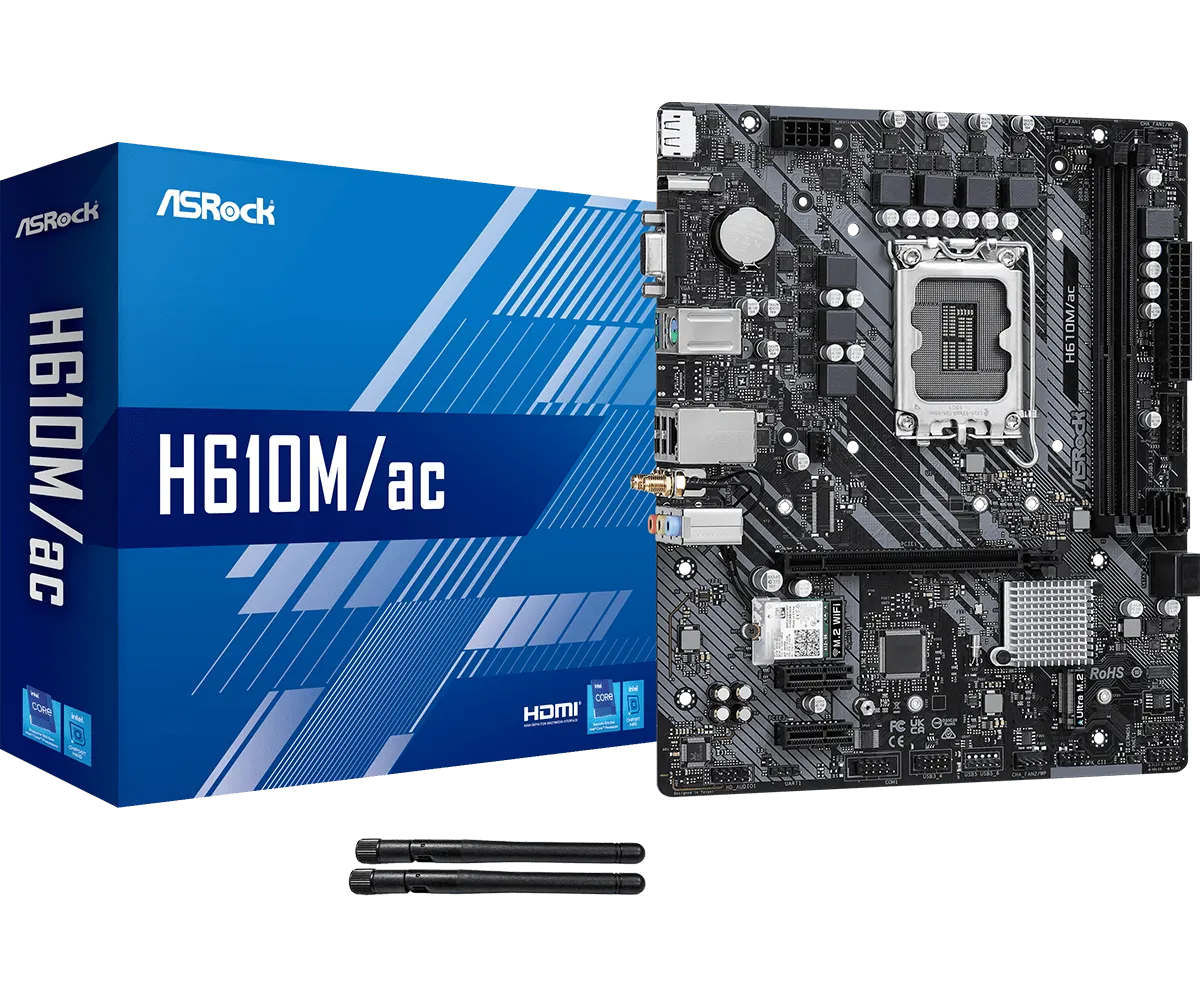

ASRock H610M/AC WIFI (VGA/HDMI/DP)
In Stock
₱4,950
₱5,800
Cash price
1
📱 Pay via GCash, Bank Transfer
📦 Cash on Delivery available
About this item
Specifications
| CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU |
| Chipset | Intel® H610 Express Chipset |
| Memory | Support for DDR4 up to 3200 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture |
| Onboard Graphics Ports | 1 x D-Sub (VGA) port 1 x HDMI 2.1 port 1 x DisplayPort 1.4 port |
| Audio | 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec) Supports Surge Protection |
| LAN | Gigabit LAN 10/100/1000 Mb/s |
| Wireless LAN | 802.11ac WiFi Module Supports IEEE 802.11a/b/g/n/ac Supports Dual-Band (2.4/5 GHz) Supports high speed wireless connections up to 433Mbps Supports Bluetooth 4.2 / 3.0 + High speed class II |
| Expansion Slots | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 2 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Storage Interface | 1 x M.2 connector up to PCIe 3.0 4 x SATA 6Gb/s connectors |
| Internal I/O Connectors | – 1 x COM Port Header – 1 x SPI TPM Header – 1 x Chassis Intrusion and Speaker Header – 1 x CPU Fan Connector (4-pin)* – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** – 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.**The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.***The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use. |

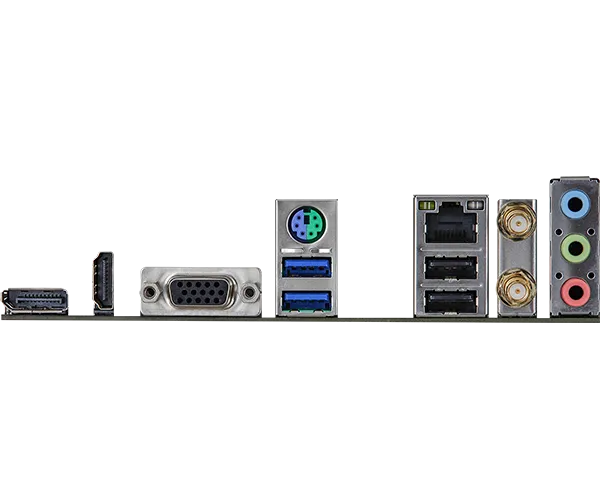

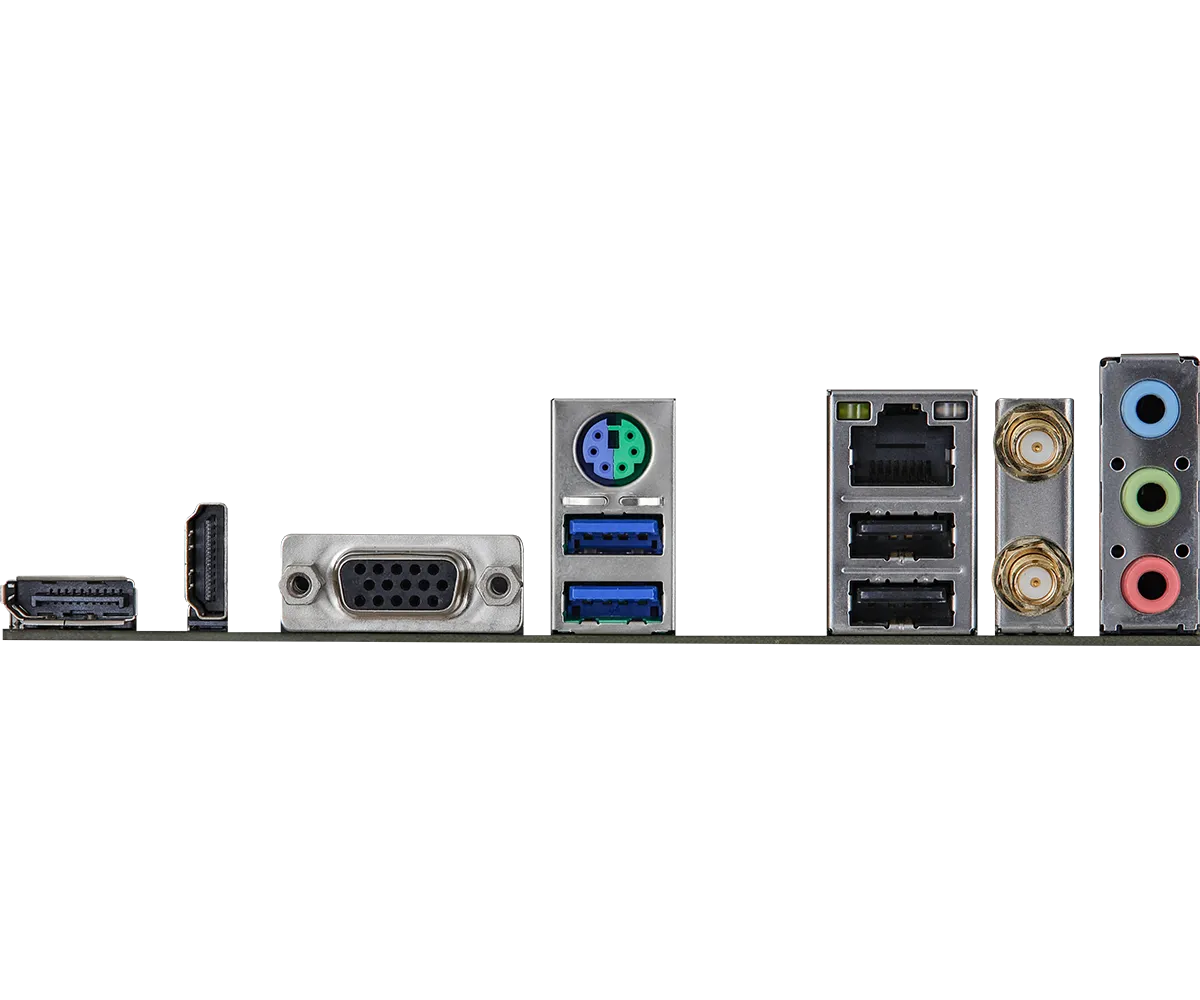

| Back Panel Connectors | 2 x Antenna Ports 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x HDMI Port 1 x DisplayPort 1.4 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) 2 x USB 2.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm |
Quick Info
🏷️ BrandASRock
🛡️ Warranty1 Year Service Center
30 days In-Store Replacement
30 days In-Store Replacement
🔗 Product PageView on ASRock Website
