AMD B550 Chipset
1 x PCIe 3.0 x16 (x4 mode) *
3 x PCIe 3.0 x1
1 x PCIe 4.0 x16 (x16 mode)
Storage
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
AMD B550 Chipset :
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
3rd Gen AMD Ryzen™ Processors :
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
LAN
Intel® I225-V 2.5Gb Ethernet
ASUS LANGuard
Audio
– Optical S/PDIF in port(s) at back panel
– Audio Shielding
– Premium Japanese audio capacitors
– Audio Cover
ROG SupremeFX8-Channel High Definition Audio CODEC S1220A
– SupremeFX Shielding™ Technology
– Gold-plated jacks
– Dual OP Amplifiers
– High quality120dBSNR stereo playback outputand113dBSNR recording input
– Impedance sense for front and rear headphone outputs
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 32-Bit/192kHz playback *
Audio Feature :
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
USB Ports
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
Rear USB Port ( Total 8 )
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
2 x USB 3.2 Gen 1 port(s)
2 x USB 2.0 port(s)
4 x USB 2.0 port(s)
ASUS Special Features
Aura Sync
– Standard RGB header(s)
– Addressable Gen 2 RGB header(s)
ASUS Q-Design
– ASUS Q-DIMM
– ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)
– ASUS Q-Slot

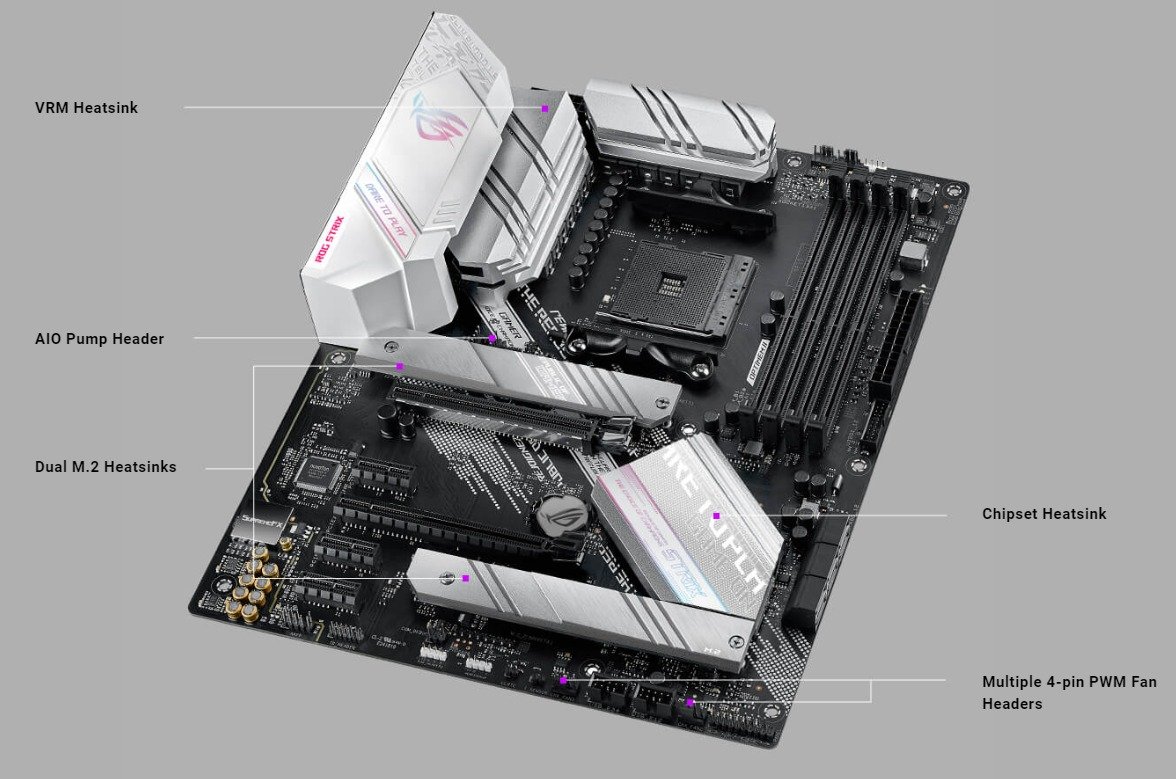

ASUS Thermal Solution
– Aluminum M.2 heatsink
ASUS EZ DIY
-BIOS FlashBack™ button
-BIOS FlashBack™ LED
-Clear CMOS header
-ProCool
-Pre-mounted I/O shield
– SafeSlot

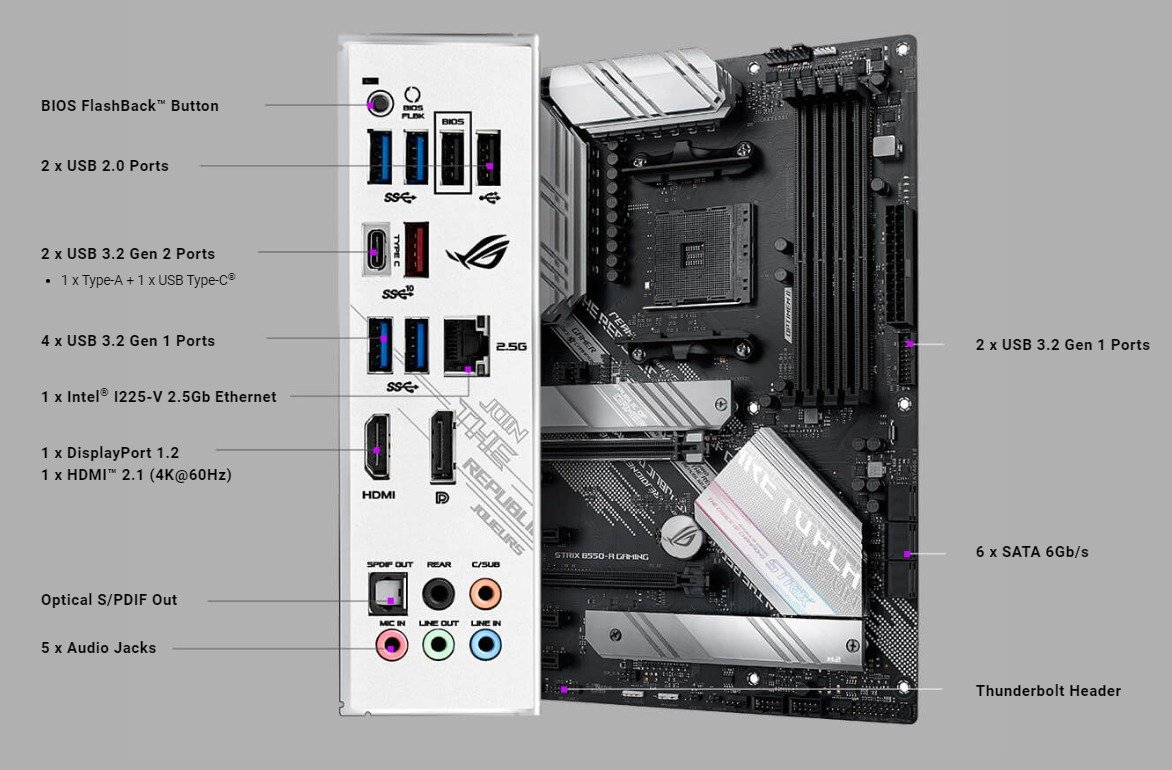

Back I/O Ports
1 x BIOS FlashBack™ Button(s)
2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
1 x Intel® I225-V 2.5Gb Ethernet
4 x USB 3.2 Gen 1
5 x Gold-plated audio jacks
ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)
