| MODEL | MPE-6501-ACAAB |
| ATX VERSION | ATX 12V V2.52 |
| PFC | ACTIVE PFC |
| INPUT VOLTAGE | 100-240V |
| INPUT CURRENT | 10-5A |
| INPUT FREQUENCY | 50-60HZ |
| DIMENSIONS (L X W X H) | 140 X 150 X 86 MM |
| FAN SIZE | 120MM |
| FAN BEARING | HDB |
| FAN SPEED | 2400 RPM |
| NOISE LEVEL @ 20% | 11.06 DBA |
| NOISE LEVEL @ 50% | 22.3 DBA |
| NOISE LEVEL @ 100% | 41.3 DBA |
| EFFICIENCY | 85% TYPICALLY |
| 80 PLUS RATING | 80 PLUS BRONZE |
| ERP 2014 LOT 3 | YES |
| OPERATING TEMPERATURE | 40°C |
| POWER GOOD SIGNAL | 100 – 500 MS |
| HOLD UP TIME | >18MS AT 100% FULL LOAD@230VAC |
| MTBF | >100,000 HOURS |
| PROTECTIONS | OVP, OPP, SCP, UVP, OTP |
| REGULATORY | CCC, CE, TUV-RH, RCM, EAC, CTUVUS, FCC, BSMI, KC, CB |

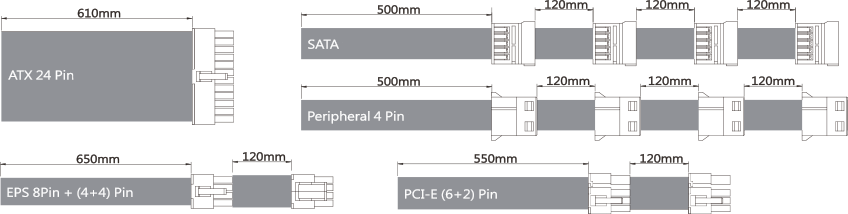

| ATX 24 PIN CONNECTORS | 1 |
| EPS 4+4 PIN CONNECTORS | 1 |
| EPS 8 PIN CONNECTOR | 1 |
| SATA CONNECTORS | 8 |
| PERIPHERAL 4 PIN CONNECTORS | 4 |
| PCI-E 6+2 PIN CONNECTORS | 4 |
| 80 PLUS | BRONZE |
| MODULAR | NO |
| WATTAGE | 650 |
