| MODEL | RPS0146 | |
|---|---|---|
| PART NO. | CP-9020237 | |
| AC Input Rating | ||
| AC INPUT | 100-240V | |
| INPUT CURRENT | 10A-5A | |
| FREQUENCY | 47~63Hz | |
| Max Load | Max Output | |
| +5V | 20A | 130W |
| +3.3V | 24A | |
| +12V | 62A | 744W |
| -12V | 0.3A | 3.6W |
| +5VSB | 3A | 15W |
| TOTAL POWER | 750W | |

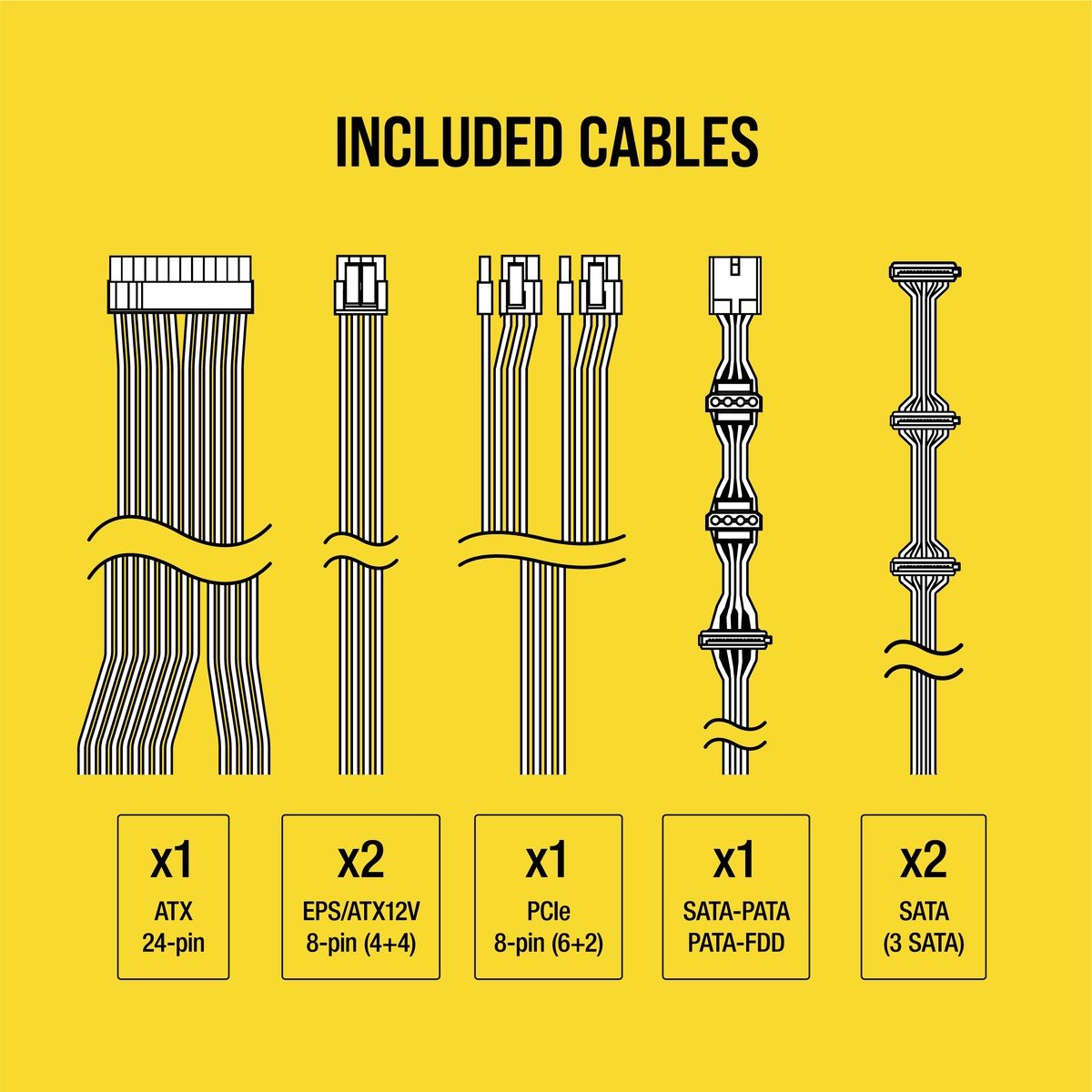

CV750 DC CABLE LISTING
| QTY | CABLE | CONNECTORS PER CABLE |
TOTAL CONNECTORS |
CONNECTOR SPACING |
TOTAL LENGTH |
|---|---|---|---|---|---|
| 1 | ATX Cable 24-pin
|
1 | 1 | – | 550mm (± 10mm) |
| 2 | EPS/ATX12V 8-pin (4+4) cable
|
1 | 2 | – | 600mm (± 10mm) |
| 1 | PCIe 8-pin (6+2) cable
|
2 | 2 | 550mm, 120mm | 670mm (± 10mm) |
| 2 | SATA Cable (3 SATA)
|
3 | 6 | 450mm, 120mm, 120mm | 690mm (± 10mm) |
| 1 | SATA-PATA-PATA-FDD
|
4 | 4 | 450mm, 120mm, 120mm, 120mm | 810mm (± 10mm) |
