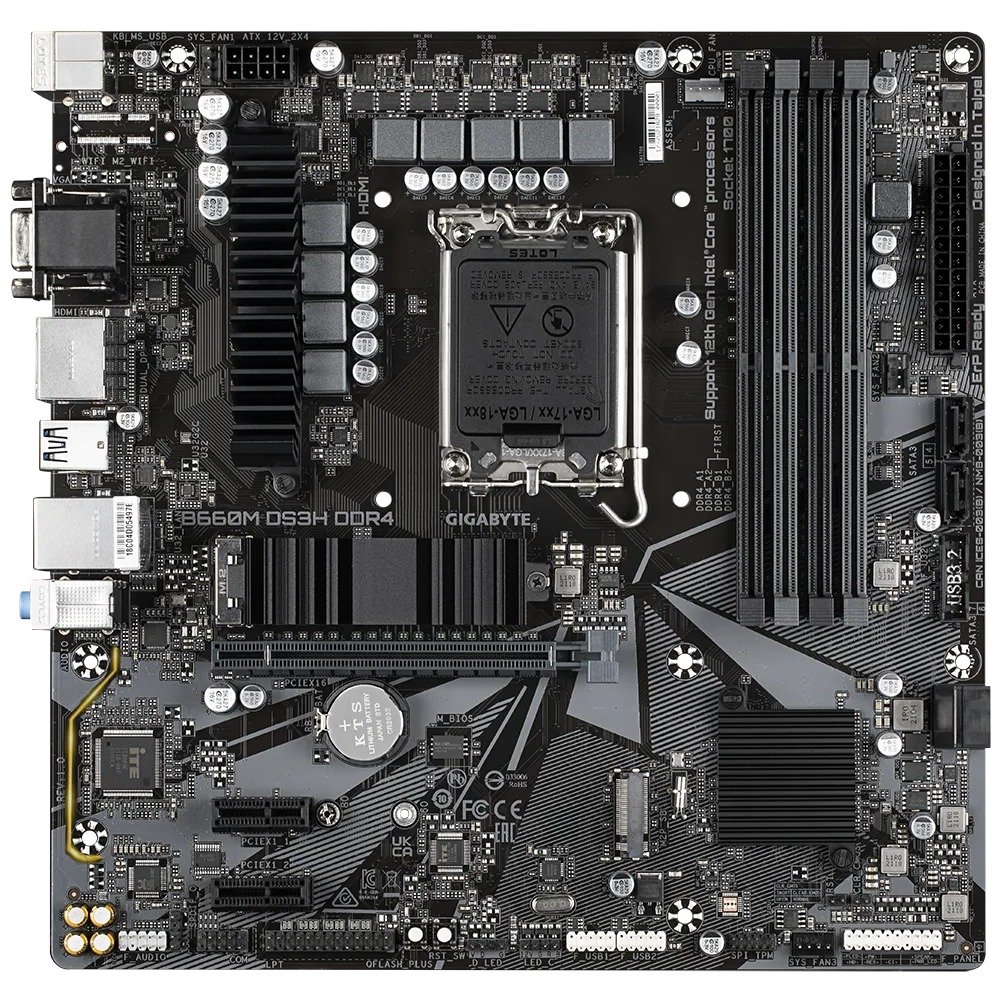

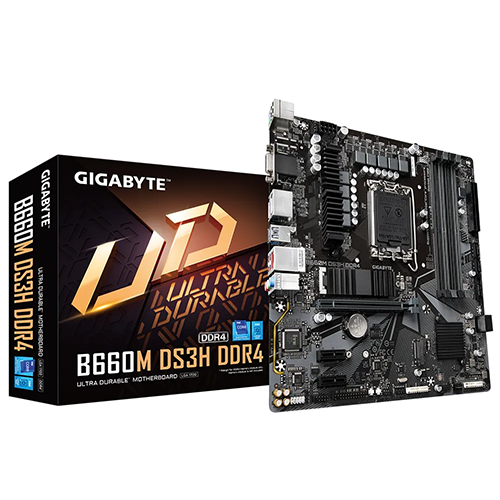

Gigabyte B660M DS3H (LGA 1700)
Gigabyte B660M DS3H (LGA 1700) - Image 2
Gigabyte B660M DS3H (LGA 1700) - Image 3
Gigabyte B660M DS3H (LGA 1700) - Image 4

Gigabyte B660M DS3H (LGA 1700)

Availability:

Out of stock
Add to wishlist
Compare

SOLD OUT

Inquire Now!

Note: Price may change without notice! Message us by clicking "Inquire now" for the updated price and availability.

DIY PC Builder

DIY PC Packages

Out of stock

Compare

More info @ https://www.gigabyte.com/Motherboard/B660M-DS3H-DDR4-rev-10/sp#sp

Chipset Intel® B660 Express Chipset
Memory
  1. Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules
  2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

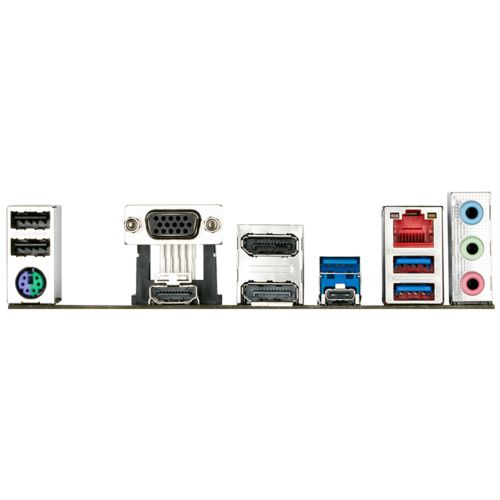

Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:

  1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
  2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support native HDMI 2.1 TMDS compatible ports.
  3. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3
  4. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
    * Support for DisplayPort 1.2 version.

(Graphics specifications may vary depending on CPU support.)

Support for up to 4 displays at the same time
Audio
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16
    (The PCIEX16 slot conforms to PCI Express 4.0 standard.)
  2. 2 x PCI Express x1 slots
    (The PCIEX1 slots conform to PCI Express 3.0 standard.)
Storage Interface CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  2. 4 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

Intel® Optane™ Memory Ready
* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connector supported by the Chipset.
USB Chipset:

  1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
  2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
  3. 2 x USB 2.0/1.1 ports on the back panel

Chipset+2 USB 2.0 Hubs:

  1. 4 x USB 2.0/1.1 ports available through the internal USB headers
