Gigabyte P550B 550W BRONZE


Out of stock

  • 80 PLUS Bronze certified

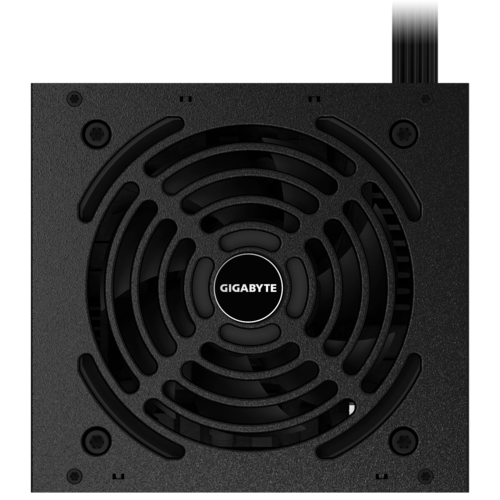

  • 120mm Silent Hydraulic Bearing (HYB) Fan
  • Reliable flat cable
  • Single +12V rail
  • OVP/OPP/SCP/UVP/OCP/OTP protection


Out of stock

Model P550B
Type ATX 12V v2.31
PFC Active PFC(>0.9 typical)
Input Voltage 100-240 Vac(full range)
Input Current 8-4 A
Input Frequency 60-50 Hz
Output Capacity 550W
Dimension 150 x 140 x 86 mm
Fan Type 120mm Hydraulic Bearing (HYB) Fan
80 PLUS Bronze
Efficiency 85% at typical load
MTBF >100,000 hours
Protection Over Voltage Protection
Over Power Protection
Short Circuit Protection
Under Voltage Protection
Over Current Protection
Over Temperature Protection
Power Good Signal 100-500ms
Hold Up Time Flat, All black
Connectors ATX/MB 20+4 Pin x 1 : 550mm*1
CPU/EPS 4+4 Pin x 1 : 600mm*1
PCI-e 6+2 Pin x 2 : 550mm+150mm*1
SATA x 6 : 500mm+120mm+120mm*2
4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm*1
