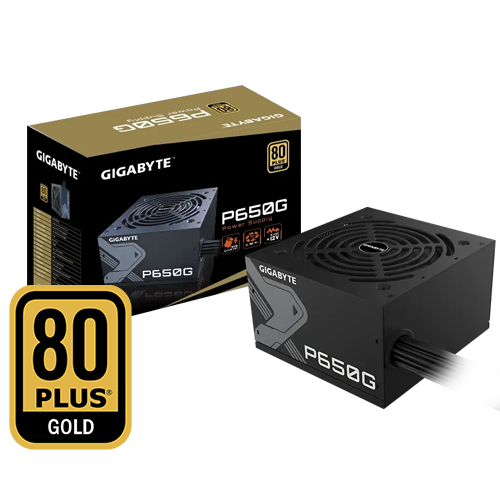

| Model | GP-P650G |
| Type | Intel Form Factor ATX 12V |
| PFC | Active PFC(>0.9 typical) |
| Input Voltage | 100-240 Vac(full range) |
| Input Current | 9-4A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 650W |
| Dimension | 150 x 140 x 86 mm |
| Fan Type | 120mm Hydraulic Bearing (HYB) Fan |
| 80 PLUS | Gold |

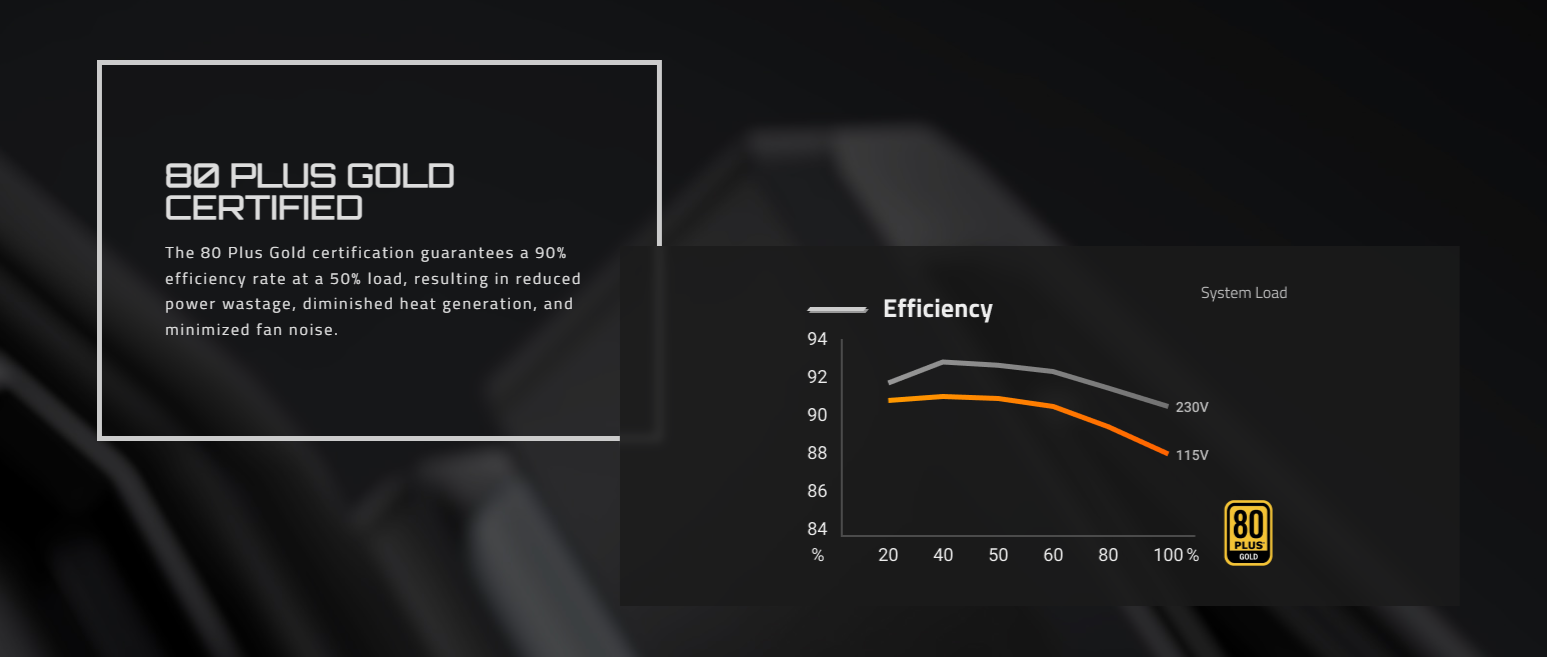

| Efficiency | 90% at typical load |
| MTBF | >100,000 hours |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-500ms |
| Hold Up Time | >16ms |
| Cable Type | Flat, All black |
| Connectors | ATX/MB 20+4 Pin x 1 : 600mm*1 CPU/EPS 4+4 Pin x 2 : 600mm+150mm*1 PCI-e 6+2 Pin x 4 : 500mm+150mm*2 SATA x 6 : 500mm+150mm+150mm*2 4 Pin Peripheral x 3: 500mm+150mm+150mm*1 |
