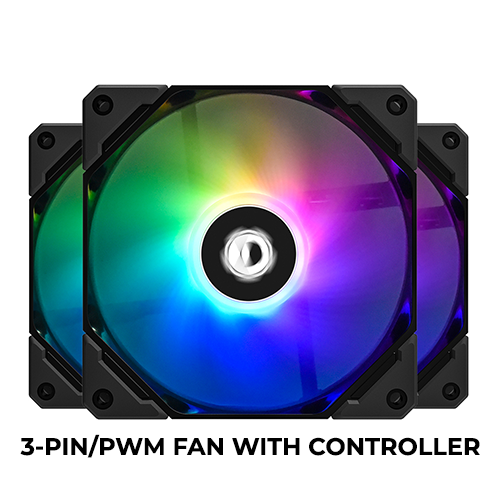

| Model | ID-Cooling TF12025 |
|---|
| Fan Dimension | 120×120×25mm(PWM) |
| Weight | 150g |
| Rated Voltage | 12VDC (PWM) / 5V (ARGB) |
| Operating Voltage | 10.8～13.2VDC |
| Starting Voltage | 7VDC |
| Rated Current | 0.25±10%A (Power)|0.4-0.5A Max (ARGB) |
| Power Input | 3W |
| Bearing Type | Hydraulic Bearing |
| Fan Speed | 500~1500±10%RPM |
| Max. Air Pressure | 1.87mmH2O |
| Max. Air Flow | 68.2CFM |
| Noise | 13.8~30.5dB(A) |
| Connector | 4pin PWM / 3pin 5V ARGB |
