AM4

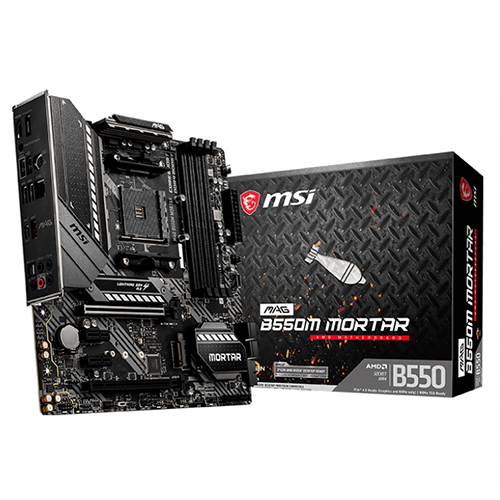

MSI MAG B550M Mortar
Availability:
Out of stock
- Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processorse
- Supports DDR4 Memory, up to 4400+(OC) MHz
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
- Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
- Enhanced Power Design: 8+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
- 2.5G LAN with LAN Manager: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
- Pre-installed I/O Shielding: Better EMI protection and more convenience for installation.
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
- Multi-GPU: With Steel Armor PCI-E slots. Supports 2-Way AMD Crossfire™
SOLD OUT
Note: Price may change without notice! Message us by clicking "Inquire now" for the updated price and availability.
Out of stock
Compare| CPU (Max Support) | up to RYZEN 9 |
| Socket | AM4 |
| Chipset | AMD B550 Chipset |
| DDR4 Memory | 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(JEDEC)/ 3000(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| Memory Channel | Dual |
| DIMM Slots | 4 |
| Max Memory (Gb) | 128 |
| PCI-E X16 | 2 |
| PCI-E X1 | 2 |
| SATA III | 6 |
| M.2 Slot | 2 |
| RAID | 0/1/10 |
| LAN | 1x Realtek® RTL8125B 2.5G LAN |
| Usb 3.2 Ports (Front) | 1(Gen 1, Type C), 2(Gen 1, Type A) |
| Usb 3.2 Ports (Rear) | 1(Gen 2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A) |
| Usb 2.0 Ports (Front) | 4 |
| Usb 2.0 Ports (Rear) | 2 |
| Audio Ports (Rear) | 5+ Optical S/PDIF (Realtek® ALC1200/ALC1220P Codec) |
| Displayport | 1 |
| HDMI | 1 |
| DirectX | 12 |
| Form Factor | Micro-ATX |
| Crossfire | Yes |
| Operating System | Support for Windows® 10 64-bit |
