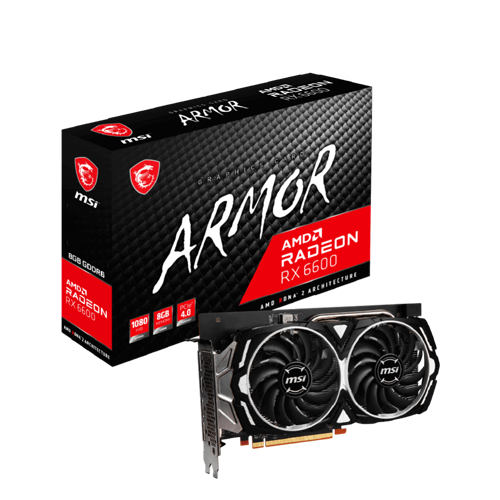

| MODEL NAME | Radeon™ RX 6600 ARMOR 8G |
| GRAPHICS PROCESSING UNIT | AMD Radeon™ RX 6600 |
| INTERFACE | PCI Express® 4.0 x8 |
| CORE CLOCKS | Boost: Up to 2491 MHz Game: Up to 2044 MHz |
| CUDA® CORES | 1792 Units |
| MEMORY SPEED | 14 Gbps |
| MEMORY | 8GB GDDR6 |
| MEMORY BUS | 128-bit |
| OUTPUT | DisplayPort x 3 (v1.4) HDMI x 1 (Supports 4K@120Hz/8K@60Hz and VRR as specified in HDMI 2.1) |
| HDCP SUPPORT | YES |
| POWER CONSUMPTION | 132W |
| POWER CONNECTORS | 8-pin x 1 |
| RECOMMENDED PSU | 500 W or greater |
| CARD DIMENSION (MM) | 238 x 128 x 39 mm |
| WEIGHT (CARD / PACKAGE) | 605 g / 1086 g |
| DIRECTX VERSION SUPPORT | 12 API |
| OPENGL VERSION SUPPORT | 4.6 |
| MULTI-GPU TECHNOLOGY | YES |
| AFTERBURNER OC | YES |
| MAXIMUM DISPLAYS | 4 |
| VR READY | YES |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
