Boost Clock: Up to 3060 MHz
Game Clock: Up to 2520MHz
Stream Processors
4096
Compute Units
64 CUs (3rd Gen RT + 2nd Gen AI Accelerators)
Infinity Cache
64MB
Ray Accelerators
64
AI Accelerator
128
Memory Size/Bus
16GB/256 bit GDDR6
Memory Clock
20 Gbps Effective
Displays
4
Resolution
HDMI®: 7680×4320
DisplayPort™ 2.1a: 7680×4320
Interface
PCI-Express 5.0 x16
Output
2x HDMI®
2x DisplayPort™ 2.1a
Sapphire Features
Quick Connect MagniPlate
STEALTH Hidden Power Cable
12V-2×6(H++) External Power Connector (3×8-pin power adapter is also included if your PC’s Power Supply Unit does not have 12V-2×6)
Honeywell PTM7950 Thermal Interface Material (TIM)
AeroCurve Fan Blade
Free Flow
FrameDefense
Integrated Cooling Module
Cold Rolled Steel Frame
Tri-X Cooling Technology
High TG Copper PCB
Optimized Composite Heatpipes
Metal Backplate

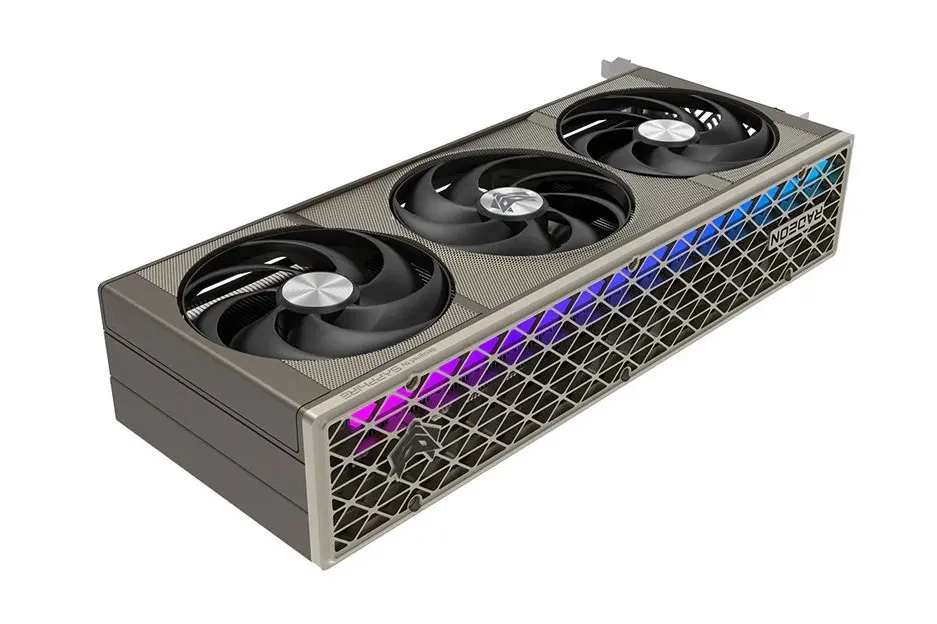

ARGB Light Bar
Fan Quick Connect
Two-Ball Bearing Fans
Premium 16-Phase Digital Power Design
Fuse Protection
Intelligent Fan Control
Precision Fan Control
TriXX Supported
Performance vs. Efficiency Quicksets
Glow!
Fan Check
TriXX Boost
External RGB LED MB Synchronization
Accessories Bundled
L-Shape Support Bracket
3pin 5V ARGB Cable

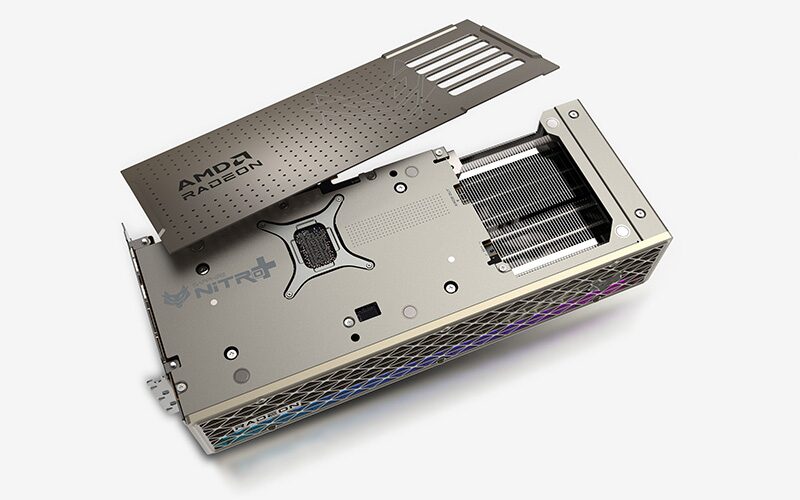

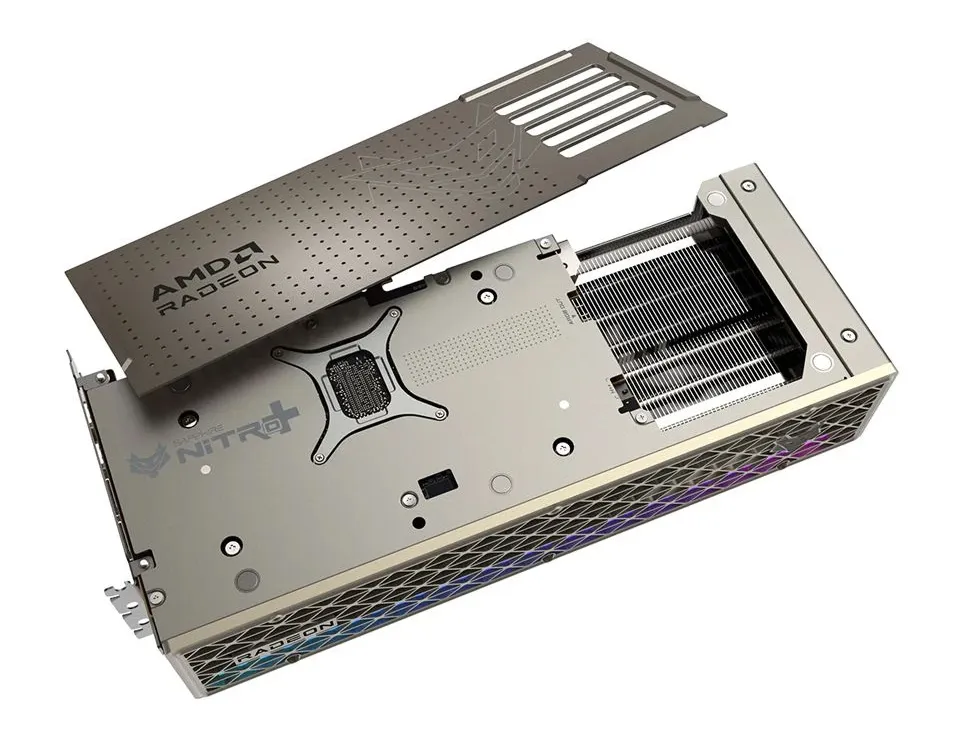

Magnetic Backplate
12V-2×6(H++) to PCI Express 3×8-pin power adapter
Minimum 750 Watt Power Supply
12V-2×6(H++) Power Connector (3×8-pin power adapter is also included if your PC’s Power Supply Unit does not have 12V-2×6)
