PSU Units

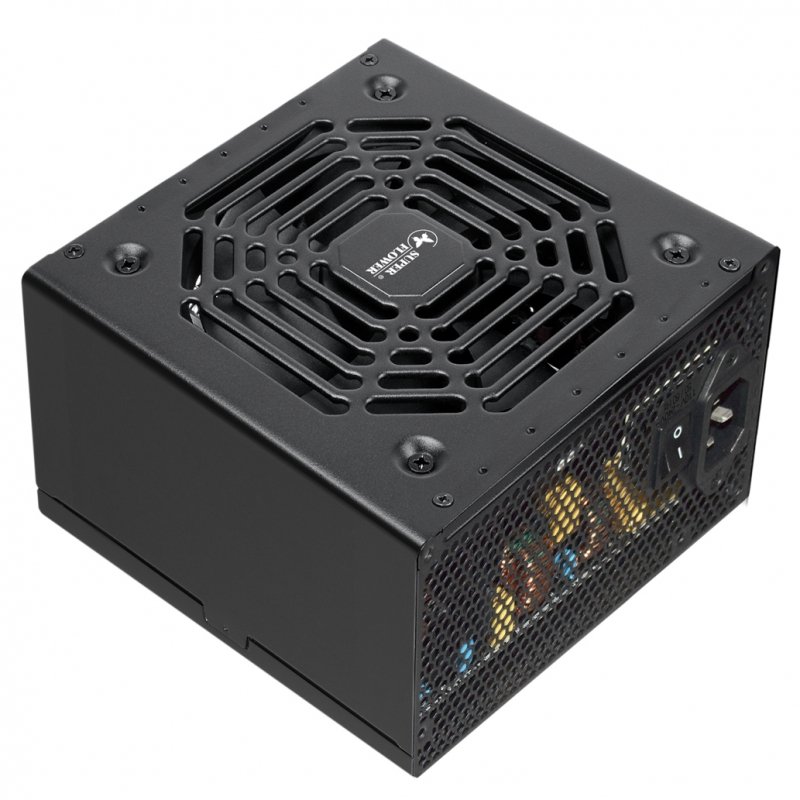

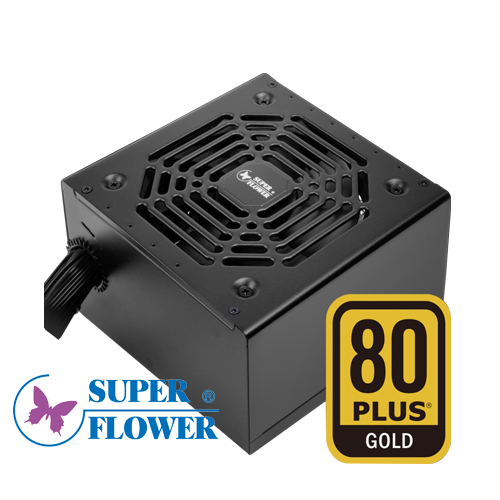

Super Flower LEGION HX 750W GOLD
Availability:
Out of Stock
♦ All Ultra Flexible Ribbon Cables For Easy Cable Management.
♦ 80 PLUS® Gold Certified,87% 90% 87% Efficiency At 20% 50% 100% Rated Load.
♦ 80 PLUS® Gold Certified,87% 90% 87% Efficiency At 20% 50% 100% Rated Load.
♦ Comply With Energy Star Standard & EuP (Energy Using Products) Regulation.
♦ Comply With ATX 12V v2.52, EPS 12V v2.92 Specification.
♦ Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / Low Voltage Protection / No Load Operation / Surge & Inrush Protection.
♦ Lead-Free Green Materials with RoHS / WEEE Compliance.
♦ Full Range Auto Voltage Detection Design from 100-240V(Active PFC).
♦ Japanese 105°C Main Capacitor.
♦ LLC Resonant Converter With DC-DC Platform.
♦ German well-known Brand “infineon” Low Rds (on) Cool Mos.
♦ Patent Core Enhancing Overall Efficiency.
♦ Comply With ATX 12V v2.52, EPS 12V v2.92 Specification.
♦ Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / Low Voltage Protection / No Load Operation / Surge & Inrush Protection.
♦ Lead-Free Green Materials with RoHS / WEEE Compliance.
♦ Full Range Auto Voltage Detection Design from 100-240V(Active PFC).
♦ Japanese 105°C Main Capacitor.
♦ LLC Resonant Converter With DC-DC Platform.
♦ German well-known Brand “infineon” Low Rds (on) Cool Mos.
♦ Patent Core Enhancing Overall Efficiency.
Note: Price may change without notice! Message us by clicking "Inquire now" for the updated price and availability.
SOLD OUT
Out of Stock
| Model No. | SF-750P14XE(HX) | |
| Transform Efficiency | >87% 90% 87% Efficiency At 20% 50% 100% Rated Load (115V) | |
| Intel Power Design Guide | EPS Ver. 2.92 & ATX 2.52 | |
| AC Input | Frequency | 100-240V | 60 / 50Hz , Full Range APFC | |

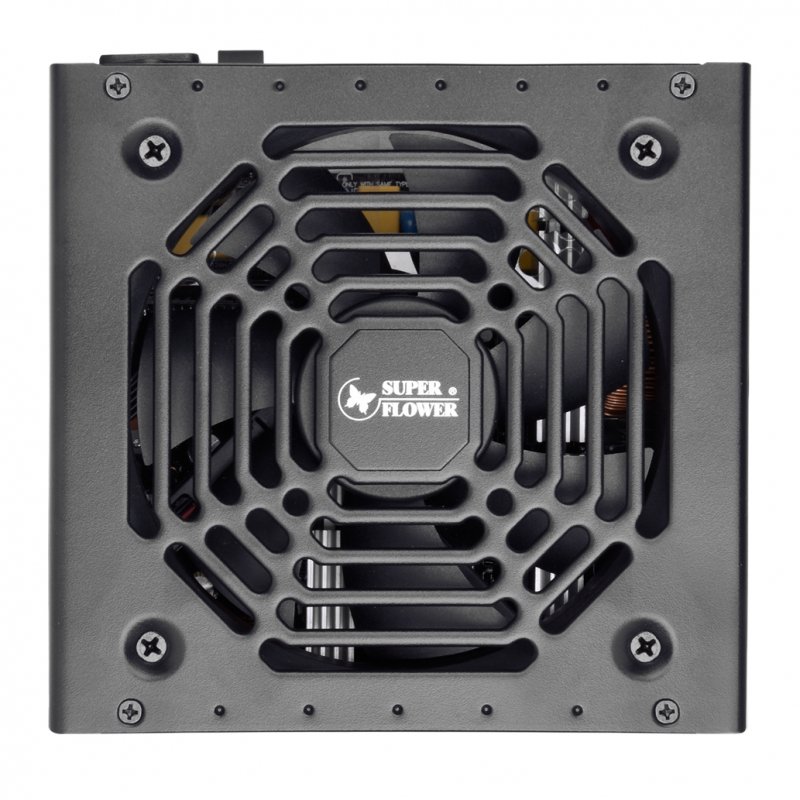

| Fan Size | 120mm H.L.B. Silent Fan | |
| Dimension | 140(D) x 150(W) x 86(H) mm | |
| Protection | Over Voltage Protection Over Current Protection Over Power Protection Short Circuit Protection Under Voltage Protection Over Temperature Protection Low Voltage Protection No Load Operation Surge & Inrush Protection |
|
| Safety Certificates | cTÜVus / TÜV / CB / CE / FCC / RCM / BSMI / EAC / KCC / RoHS | |
| Temperature | Passed 50℃ Hot Testing | |
| Cable Wires | ||
| 20+4 Pin | Fixed Cables | One Cable (600mm) |
| 8(4+4) Pin CPU | Two Cables (700mm) | |
| SLI (2 x PCI 6+2 Pin) | Two Cables (550+150mm) | |
| 4 SATA | One Cable (550+130+130+130mm) | |
| 3 SATA | One Cable (550+130+130mm) | |
| 4 Molex | One Cable (550+150+150+150mm) | |
