Motherboard

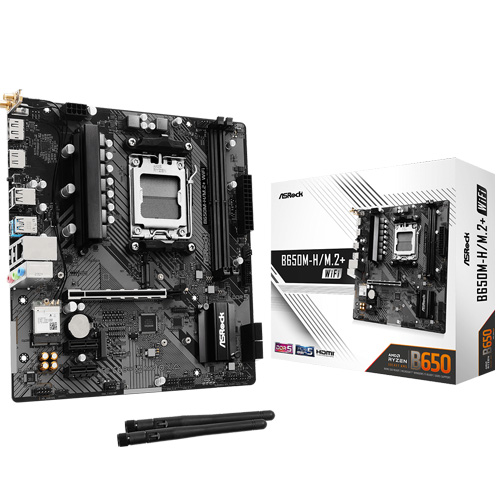

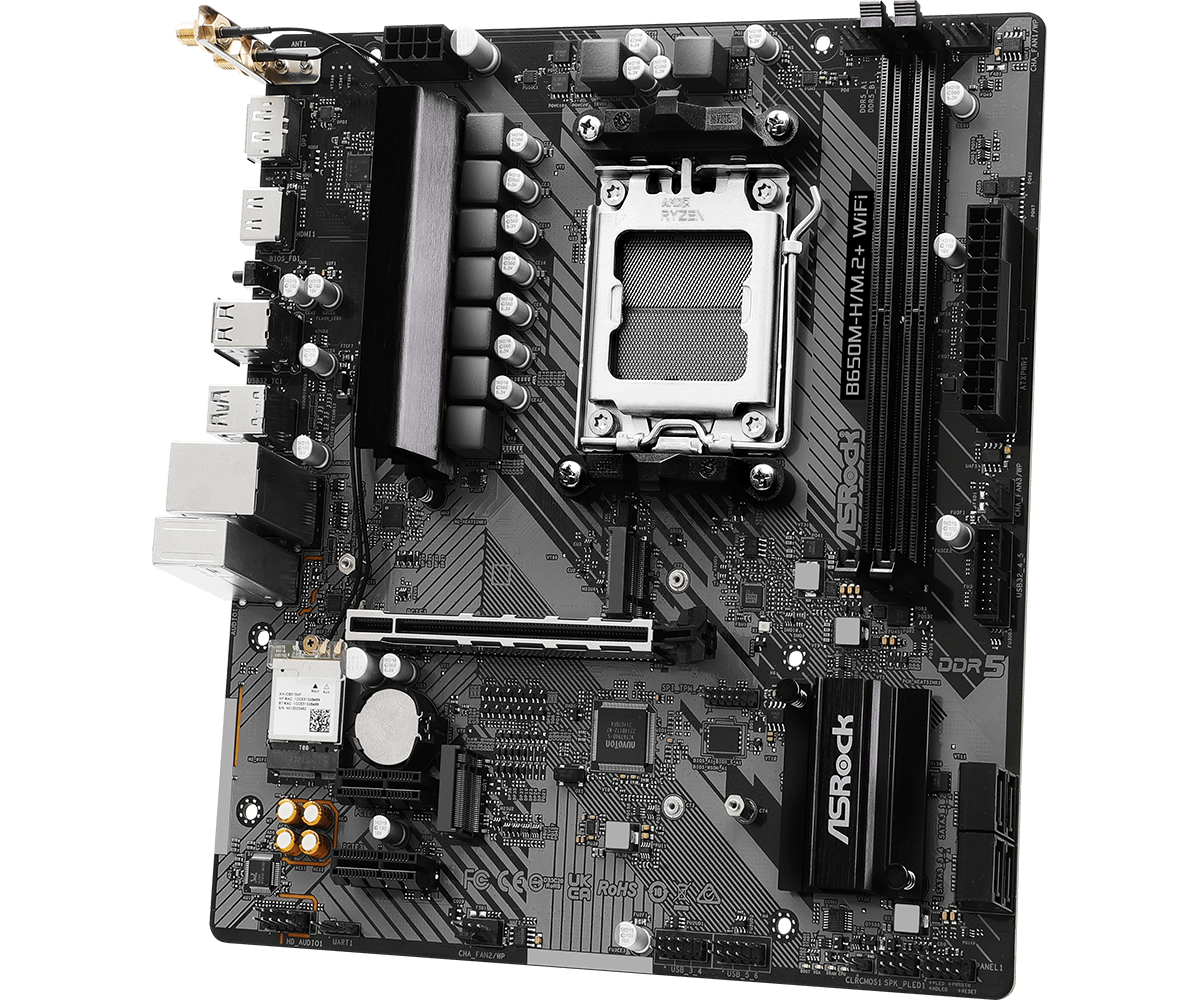

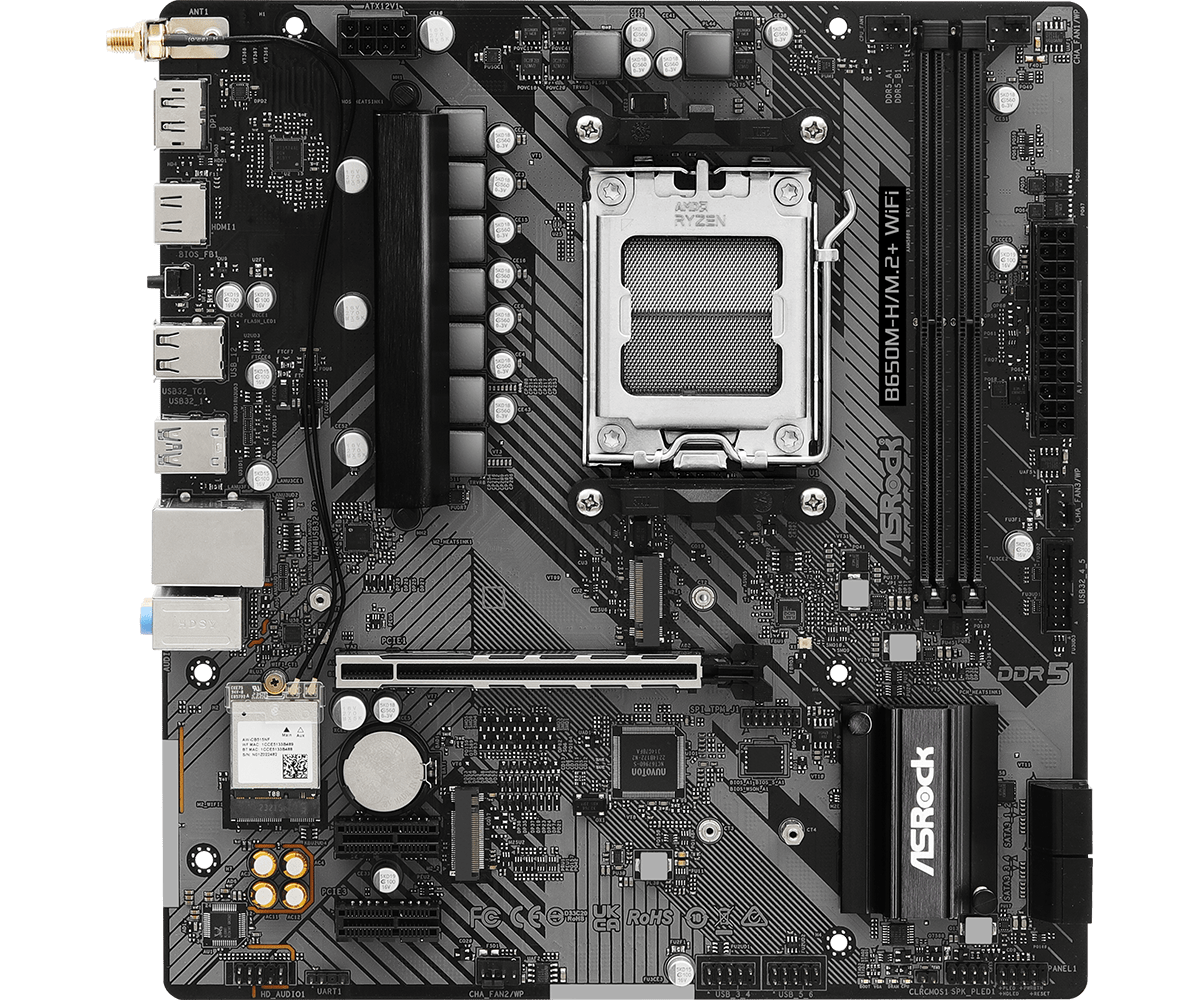

ASRock B650M-H/M.2 WIFI (AM5)
Incoming Stock
✓ Synced with our store inventory
SRP: ₱8,100
₱6,850
Discounted cash price
1
✨ 100% Brand New
🛡️ Secure payments via GCash or Bank Transfer
🛵 Same day delivery within Lucena and nearby areas
📦 Shipping available via J&T Express
🏬 In-store pickup available
About this item
| General | |
| CPU Socket | AMD Socket AM5 |
| Supported Processors | AMD Ryzen™ 9000 Series AMD Ryzen™ 8000 Series AMD Ryzen™ 7000 Series |
| Chipset | AMD B650 |
| Form Factor | Micro-ATX |
| Dimensions | 244 × 226 mm |
| Power Design | |
| Power Phase | 6+1+1 |
| VCore Power Stage | 50A Dr.MOS |
| Memory | |
| Memory Support | 2 x DDR5 DIMM |
| Maximum Capacity | 128GB |
| Memory Type | ECC / Non-ECC Unbuffered DDR5 |
| Maximum Memory Speed | DDR5-6400+ (OC) |
| Memory Architecture | Dual Channel |
| Memory Profiles | Intel® XMP AMD EXPO™ |
| Graphics | |
| Integrated Graphics Support | AMD RDNA™ Graphics (CPU Dependent) |
| Display Outputs | 1 x HDMI 2.1 1 x DisplayPort 1.4 |
| HDMI Maximum Resolution | 3840 × 2160 @ 120Hz |
| DisplayPort Maximum Resolution | 3840 × 2160 @ 120Hz |
| HDR Support | Yes |
| HDCP Support | HDCP 2.3 |
| Expansion Slots | |
| Primary PCIe Slot | 1 x PCIe 4.0 x16 |
| Additional PCIe Slots | 2 x PCIe 4.0 x1 |
| Wireless M.2 Slot | 1 x M.2 Key-E 2230 |
| PCIe Slot Feature | 15μ Gold Contact (Primary x16 Slot) |
| Storage | |
| M.2 Slots | 2 |
| M.2_1 | PCIe Gen5 x4 (128 Gb/s) Type 2280 |
| M.2_2 | PCIe Gen4 x4 (64 Gb/s) Type 2260 / 2280 |
| SATA Ports | 4 x SATA 6Gb/s |
| RAID Support | RAID 0 / 1 / 10 (SATA) RAID 0 / 1 / 10 (NVMe) |
| Network | |
| LAN | Realtek® RTL8111H Gigabit Ethernet |
| LAN Speed | 10 / 100 / 1000 Mb/s |
| Wireless | |
| Wi-Fi | 802.11ac |
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac |
| Wi-Fi Bands | 2.4 GHz 5 GHz |
| Maximum Wi-Fi Speed | Up to 433 Mbps |
| Bluetooth | Bluetooth® 5.0 |
| Audio | |
| Audio Codec | Realtek® ALC897 |
| Audio Channels | 7.1-Channel HD Audio |
| Audio Features | Nahimic Audio |
| USB | |
| Rear USB | 1 x USB 3.2 Gen 1 Type-C 3 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 |
| Front USB | 2 x USB 3.2 Gen 1 4 x USB 2.0 |
| USB Protection | ESD Protection |
| Rear I/O | |
| Wireless | 2 x Antenna Ports |
| Video Outputs | 1 x HDMI 1 x DisplayPort 1.4 |
| USB | 1 x USB 3.2 Gen 1 Type-C 3 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 |
| Network | 1 x RJ-45 |
| Audio | Line-In Front Speaker Microphone |
| Buttons | BIOS Flashback |
| Internal Connectors | |
| Power | 1 x 24-pin ATX 1 x 8-pin 12V |
| Cooling | 1 x 4-pin CPU Fan Header 3 x 4-pin Chassis / Water Pump Fan Headers |
| USB Headers | 1 x USB 3.2 Gen 1 Header 2 x USB 2.0 Headers |
| Other Headers | 1 x SPI TPM Header 1 x Power LED / Speaker Header 1 x Front Panel Audio Header |
| BIOS | |
| BIOS | 256Mb AMI UEFI BIOS |
| BIOS Features | ASRock Full HD UEFI ASRock Instant Flash BIOS Flashback |
| Features | |
| Motherboard Utility | ASRock A-Tuning |
| Driver Installation | ASRock Auto Driver Installer |
| Diagnostics | ASRock Post Status Checker |
| Accessories | |
| Included Accessories | 1 x I/O Shield 2 x Wi-Fi 2.4 / 5 GHz Antennas 2 x SATA Data Cables 2 x M.2 Screws |
| Operating System | |
| OS Support | Windows® 11 64-bit Windows® 10 64-bit |
