Motherboard

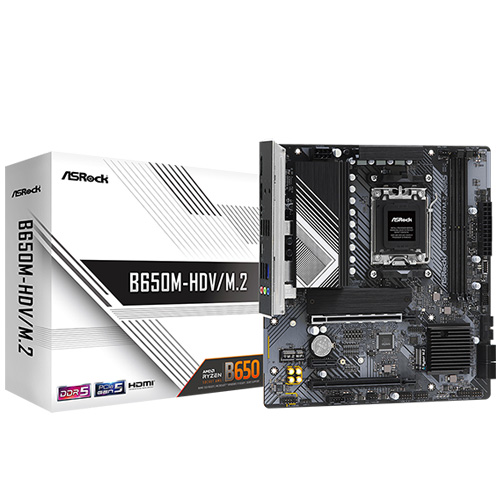

ASRock B650M-HDV/M.2
✓ Synced with our store inventory
SRP: ₱8,200
₱6,950
Discounted cash price
✨ 100% Brand New
🛡️ Secure payments via GCash or Bank Transfer
🛵 Same day delivery within Lucena and nearby areas
📦 Shipping available via J&T Express
🏬 In-store pickup available
About this item

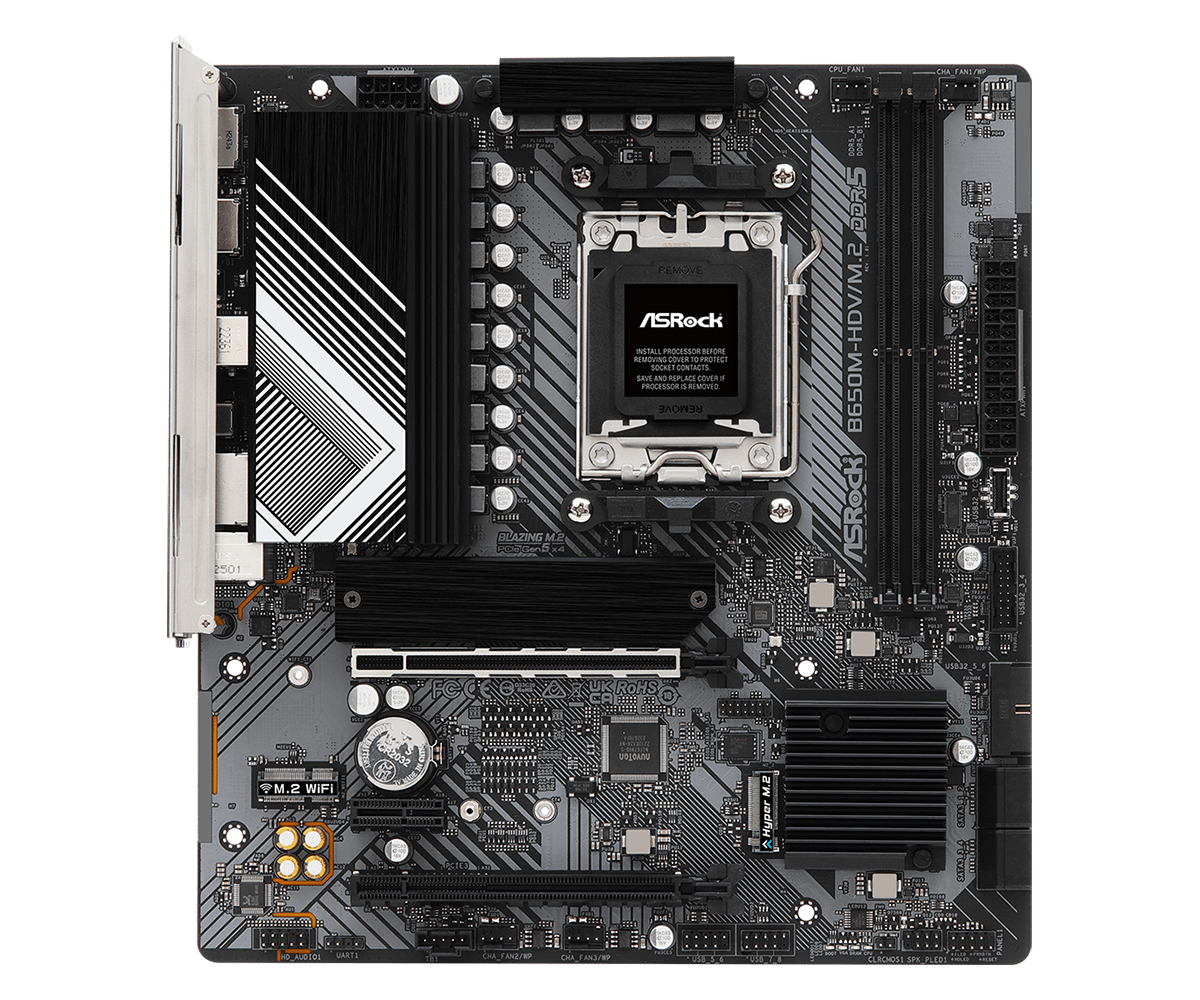

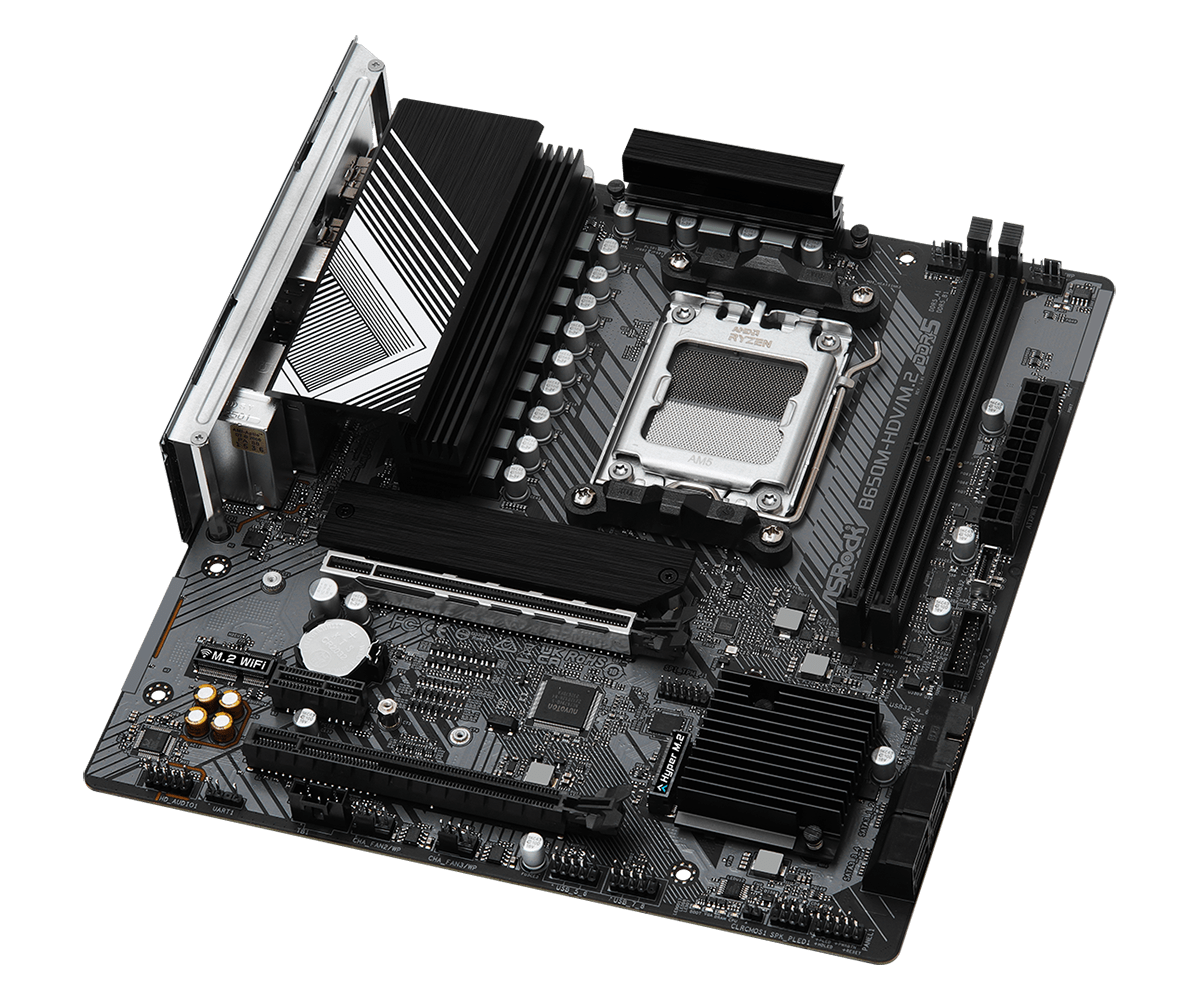

Build a powerful and future-ready PC with the ASRock B650M-HDV/M.2 Motherboard, designed for AMD Ryzen 7000, 8000, and 9000 Series processors with the AM5 socket. Powered by the AMD B650 chipset, this Micro-ATX motherboard features dual-channel DDR5 memory support, PCIe 4.0 x16 graphics connectivity, and an 8+2+1 phase Dr.MOS power design for reliable gaming and productivity performance. Equipped with PCIe 5.0 M.2 SSD support, 2.5 Gigabit LAN, and advanced cooling features, it delivers fast storage, stable networking, and excellent upgrade potential for modern AMD gaming PC builds
| General | |
| Chipset | AMD B650 |
| Form Factor | Micro-ATX |
| Dimensions | 244 × 226 mm |
| PCB | 2 oz Copper |
| Operating System | Windows 11 64-bit Windows 10 64-bit |
| CPU | |
| Socket | AM5 |
| CPU Support | AMD Ryzen 9000 Series AMD Ryzen 8000 Series AMD Ryzen 7000 Series |
| Power Design | 8+2+1 Power Phase |
| VRM | 50A Dr.MOS |
| Memory | |
| Memory Type | DDR5 |
| DIMM Slots | 2 |
| Maximum Memory | 128GB |
| Memory Architecture | Dual Channel |
| Memory Speed | Up to DDR5 7200+ MT/s (OC) |
| Memory Support | ECC / Non-ECC Unbuffered |
| Memory Profiles | Intel XMP AMD EXPO |
| Graphics | |
| Integrated Graphics | AMD RDNA Graphics (CPU Dependent) |
| HDMI | 1 × HDMI 2.1 (TMDS / FRL 8G) |
| HDMI Maximum Resolution | 4K @ 120Hz |
| HDMI HDR | Yes |
| HDMI HDCP | 2.3 |
| DisplayPort | 1 × DisplayPort 1.4 with DSC |
| DisplayPort Maximum Resolution | 4K @ 120Hz |
| DisplayPort HDCP | 2.3 |
| Expansion Slots | |
| PCIe x16 Slots | 2 |
| PCIE1 | PCIe 4.0 x16 (CPU, x16 Mode) |
| PCIE3 | PCIe 4.0 x16 (CPU, x4 Mode) |
| PCIe x1 Slots | 1 × PCIe 4.0 x1 (Chipset) |
| M.2 Key E | 1 × Type 2230 Wi-Fi / Bluetooth Module Slot |
| Multi-GPU Support | AMD CrossFire |
| PCIe Slot Protection | 15μ Gold Contact (PCIE1) |
| NVMe Boot Support | Yes |
| PCIe Availability | Varies by CPU |
| Storage | |
| M.2 Slots | 2 |
| M2_1 | PCIe 5.0 x4 (128 Gb/s) Type 2280 From CPU |
| M2_2 | PCIe 4.0 x4 (64 Gb/s) Type 2260 / 2280 From Chipset |
| SATA | 4 × SATA 6Gb/s |
| SATA RAID | RAID 0 / 1 / 10 |
| NVMe RAID | RAID 0 / 1 / 10 |
| NVMe RAID 10 | Requires Additional M.2 NVMe Expansion Cards |
| NVMe Boot Support | Yes |
| Networking | |
| Ethernet | Dragon Realtek RTL8125BG 2.5GbE LAN |
| Ethernet Speed | 10 / 100 / 1000 / 2500 Mbps |
| LAN Software | Dragon 2.5G LAN Software |
| Bandwidth Control | Smart Auto Adjust |
| Traffic Prioritization | Customizable |
| Network Monitoring | Visual Network Usage Statistics |
| Network Profiles | Gaming Browser Streaming |
| Wireless | |
| Wi-Fi Module | Not Included |
| Wi-Fi Expansion | 1 × M.2 Key E 2230 |
| Antenna Mounting Points | 2 |
| USB | |
| Rear USB 5Gbps Type-C | 1 |
| Rear USB 5Gbps Type-A | 2 |
| Rear USB 2.0 | 4 |
| Front USB 10Gbps Type-C | 1 |
| Front USB 5Gbps Type-A | 4 |
| Front USB 2.0 | 4 |
| USB Protection | ESD Protection on All Ports |
| Audio | |
| Audio Codec | Realtek ALC897 |
| Audio Channels | 7.1-Channel High Definition Audio |
| Audio Enhancement | Nahimic Audio |

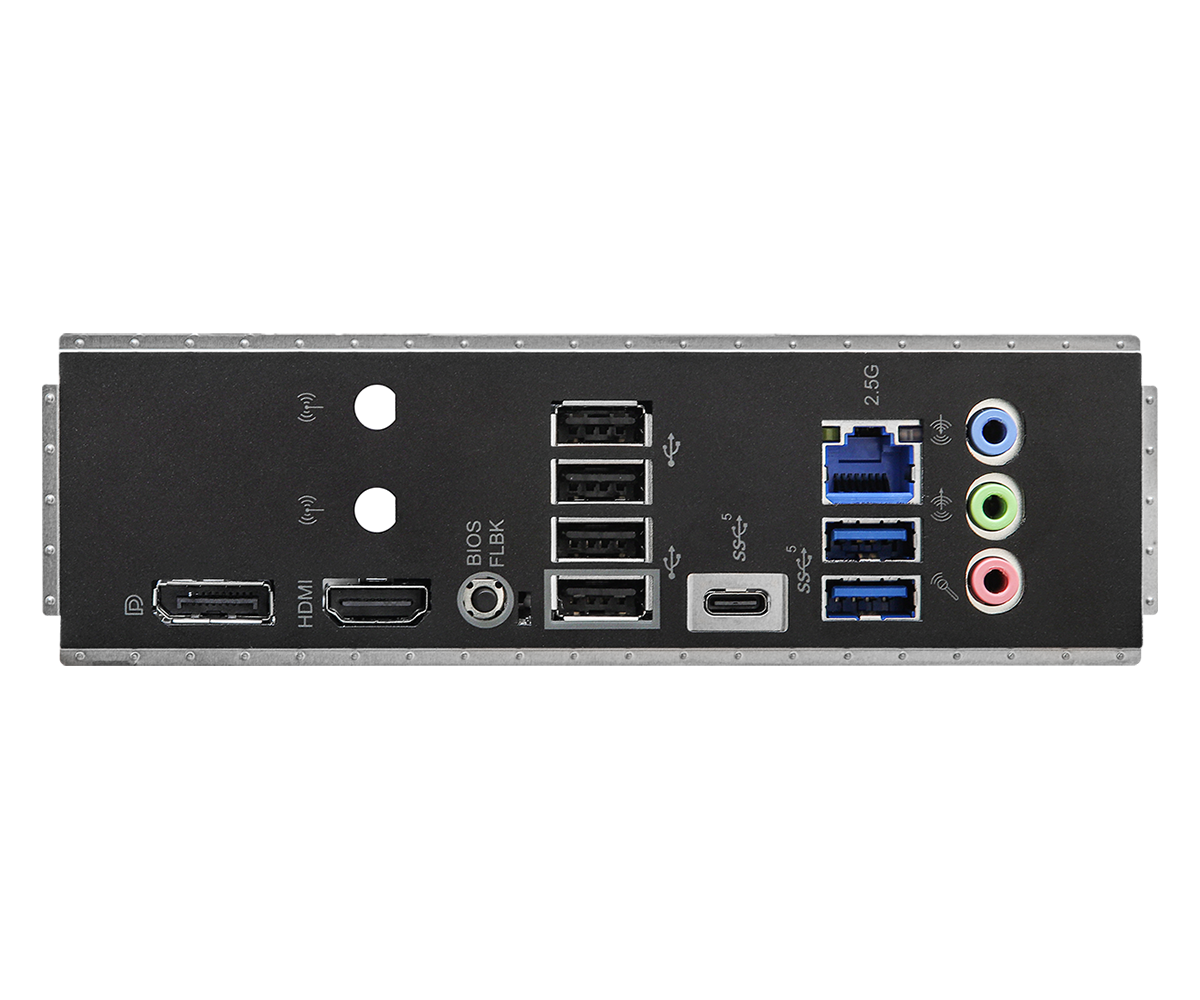

| Rear Panel I/O | |
| Display Outputs | 1 × HDMI 2.1 1 × DisplayPort 1.4 |
| USB | 1 × USB 5Gbps Type-C 2 × USB 5Gbps Type-A 4 × USB 2.0 Type-A |
| Network | 1 × RJ-45 (2.5GbE) |
| Wireless | 2 × Antenna Mounting Points |
| Audio | Line-In Front Speaker Microphone |
| BIOS Flashback | 1 × Button |
| I/O Shield | Pre-Installed |
| Internal Connectors | |
| Main Power | 1 × 24-pin ATX |
| CPU Power | 1 × 8-pin ATX 12V |
| CPU Fan | 1 × 4-pin (1A / 12W) |
| Chassis / Water Pump Fans | 3 × 4-pin (2A / 24W Each) |
| Fan Control | Smart Fan Speed Control |
| Fan Detection | Automatic 3-pin / 4-pin Detection |
| Front Panel Audio | 1 × Header |
| Power LED / Speaker | 1 × Header |
| USB 2.0 | 2 × Headers (4 Ports) |
| USB 5Gbps | 2 × Headers (4 Type-A Ports) |
| USB 10Gbps Type-C | 1 × Header |
| TPM | 1 × SPI TPM Header |
| Thunderbolt | 1 × 5-pin Thunderbolt AIC Connector |
| Thunderbolt Expansion | Supports ASRock Thunderbolt 4 AIC Card |
| BIOS | |
| BIOS Size | 256Mb |
| BIOS Type | AMI UEFI with GUI |
| BIOS Interface | ASRock Full HD UEFI |
| BIOS Flashback | Yes |
| BIOS Update | ASRock Instant Flash |
| Auto Driver Installer | Yes |
| Features | |
| Post Status Checker | Yes |
| PCIe 5.0 M.2 Support | Yes |
| Pre-Installed I/O Shield | Yes |
| 2 oz Copper PCB | Yes |
| Software | |
| ASRock Motherboard Utility | A-Tuning |
| ASRock Dragon 2.5G LAN Software | Supported |
| ASRock Auto Driver Installer | Supported |
| Software Download | ASRock Live Update & APP Shop |
| Accessories | |
| Included Accessories | 1 × User Manual 2 × SATA Data Cables 3 × M.2 Socket Screws |
