Motherboard

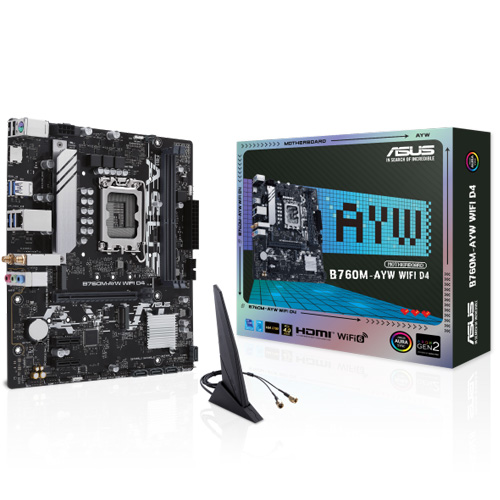

ASUS B760M AYW WIFI D4 (HDMI)
Limited Stock
✓ Synced with our store inventory
✨ New Arrival
SRP: ₱9,400
₱7,950
Discounted cash price
1
✨ 100% Brand New
🛡️ Secure payments via GCash or Bank Transfer
🛵 Same day delivery within Lucena and nearby areas
📦 Shipping available via J&T Express
🏬 In-store pickup available
About this item
| General | |
| Model | B760M-AYW WIFI D4 |
| Form Factor | Micro-ATX |
| Dimensions | 24.4 × 21.1 cm (9.6 × 8.3 in) |
| Operating System | Windows 11 / Windows 10 64-bit |
| CPU | |
| Socket | LGA1700 |
| CPU Support | Intel Core 14th Gen / 13th Gen / 12th Gen, Pentium Gold, Celeron |
| CPU Technologies | Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0 (CPU dependent) |
| Chipset | |
| Chipset | Intel B760 |
| Memory | |
| Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum Memory | 64GB |
| Memory Architecture | Dual Channel |
| Memory Speeds | 5333(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 |
| Memory Type Support | Non-ECC, Un-buffered |
| Memory Profile | Intel XMP |
| Graphics | |
| Onboard Display Output | 1 × HDMI 2.1 |
| Maximum HDMI Resolution | 4K @ 60Hz |
| Graphics Support | Requires CPU with integrated graphics |
| Expansion Slots | |
| PCIe x16 | 1 × PCIe 4.0 x16 |
| PCIe x1 | 2 × PCIe 4.0 x1 |
| Storage | |
| M.2 Slots | 2 |
| M.2_1 | PCIe 4.0 x4, Type 2242/2260/2280 |
| M.2_2 | PCIe 4.0 x4, Type 2242/2260/2280 |
| SATA | 4 × SATA 6Gb/s |
| RAID | SATA RAID 0 / 1 / 5 / 10 |
| Networking | |
| Ethernet | Realtek 2.5Gb Ethernet |
| LAN Protection | ASUS LANGuard |
| Wi-Fi | Wi-Fi 6 (802.11 a/b/g/n/ac/ax) |
| Wi-Fi Bands | 2.4GHz / 5GHz |
| Bluetooth | Bluetooth 5.2 |
| USB | |
| Rear USB 3.2 Gen 1 | 4 × Type-A |
| Rear USB 2.0 | 2 × Type-A |
| Front USB 3.2 Gen 1 | 2 ports via 1 header |
| Front USB 2.0 | 2 ports via 1 header |
| Total Rear USB | 6 |
| Total Front USB Support | 4 |
| Audio | |
| Audio Codec | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Maximum Playback | 24-bit / 192kHz |
| Audio Features | Jack Detection / Multi-streaming / Front Panel Jack Retasking / Audio Shielding / Premium Audio Capacitors / Dedicated Audio PCB Layers |
| Back Panel I/O | |
| USB | 4 × USB 3.2 Gen 1 Type-A / 2 × USB 2.0 Type-A |
| Display | 1 × HDMI |
| Network | 1 × Realtek 2.5Gb Ethernet |
| Wireless | Wi-Fi Module |
| Audio | 3 × Audio Jacks |
| Legacy Port | 1 × PS/2 Keyboard/Mouse Combo |
| Internal Connectors | |
| CPU Fan | 1 × 4-pin |
| Chassis Fan | 1 × 4-pin |
| Main Power | 1 × 24-pin ATX |
| CPU Power | 1 × 8-pin +12V |
| M.2 | 2 × Key M |
| SATA | 4 × SATA 6Gb/s |
| USB 3.2 Gen 1 Header | 1 |
| USB 2.0 Header | 1 |
| Addressable RGB | 2 × Addressable Gen 2 Headers |
| RGB | 1 × Aura RGB Header |
| Other Headers | Clear CMOS / COM / Front Panel Audio / S/PDIF Out / Speaker / SPI TPM / System Panel |
| Features | |
| Protection | ASUS 5X PROTECTION III |
| Protection Features | DIGI+ VRM / LANGuard / Overvoltage Protection / SafeSlot Core / Stainless-Steel Back I/O |
| Q-Design | Q-DIMM / Q-LED Core / Q-Slot |
| Cooling | VRM Heatsink Design |
| RGB | Aura Sync |
| DIY Feature | ProCool |
| BIOS | |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS |
| BIOS Features | ASUS CrashFree BIOS 3 / ASUS EZ Flash 3 / ASUS UEFI BIOS EZ Mode |
| Software | |
| Software | Armoury Crate / Aura Sync / Fan Xpert / Power Saving / AI Suite 3 / DIGI+ VRM / PC Cleaner / ASUS CPU-Z / MyASUS / Norton 360 Deluxe Trial / WinRAR |
| Manageability | |
| Manageability | WOL by PME / PXE |
| Accessories | |
| Included Accessories | 2 × SATA 6Gb/s Cables / ASUS Wi-Fi Moving Antennas / I/O Shield / 2 × M.2 Anchors / User Guide |
