Motherboard

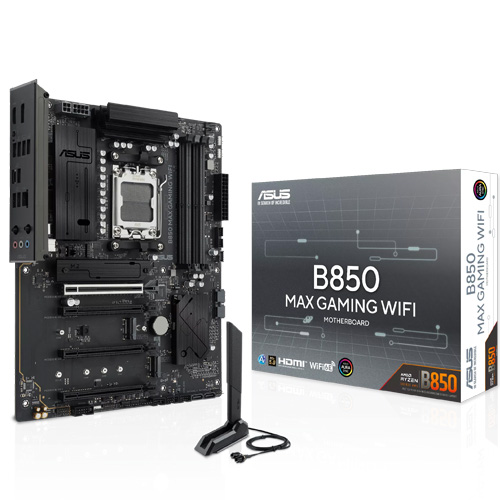

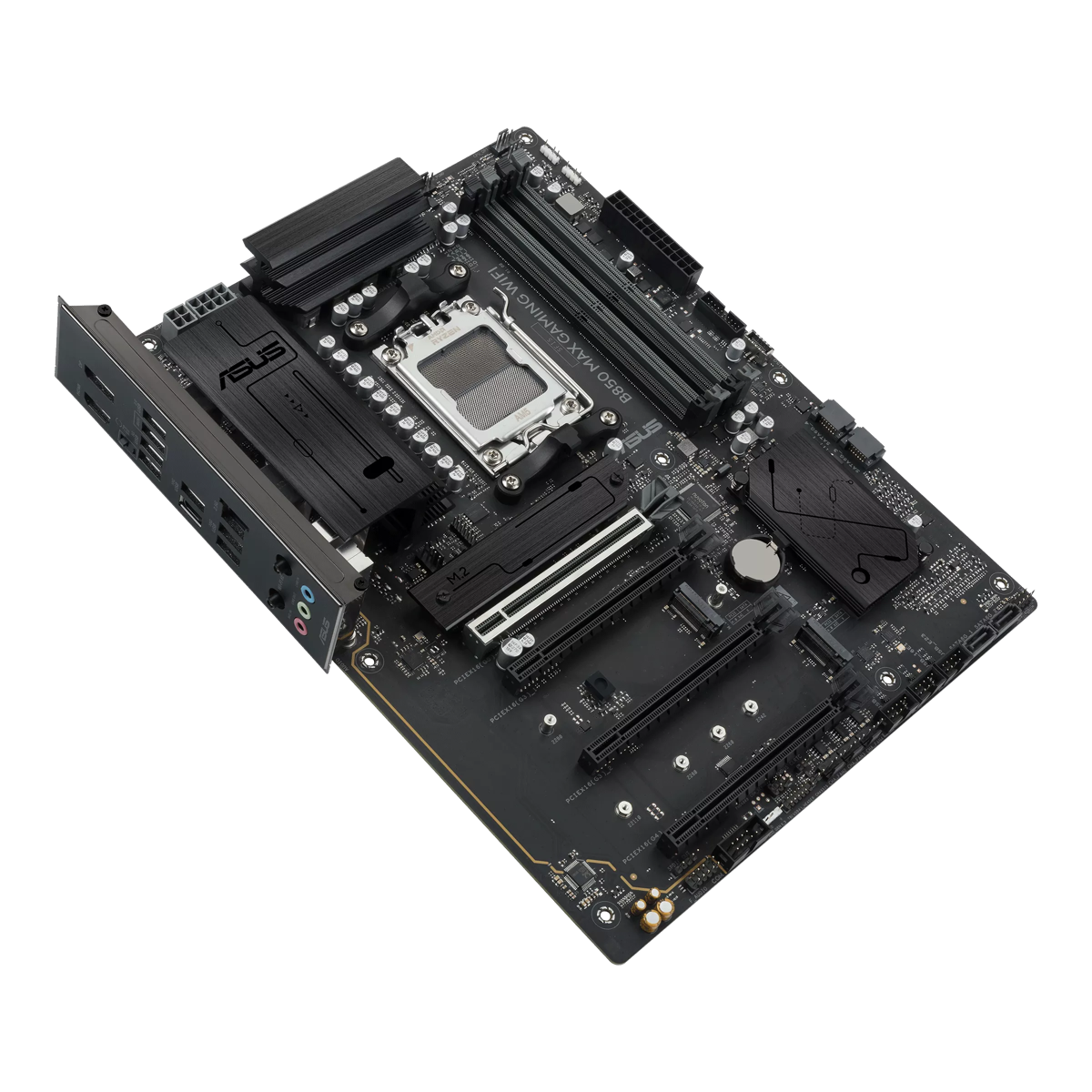

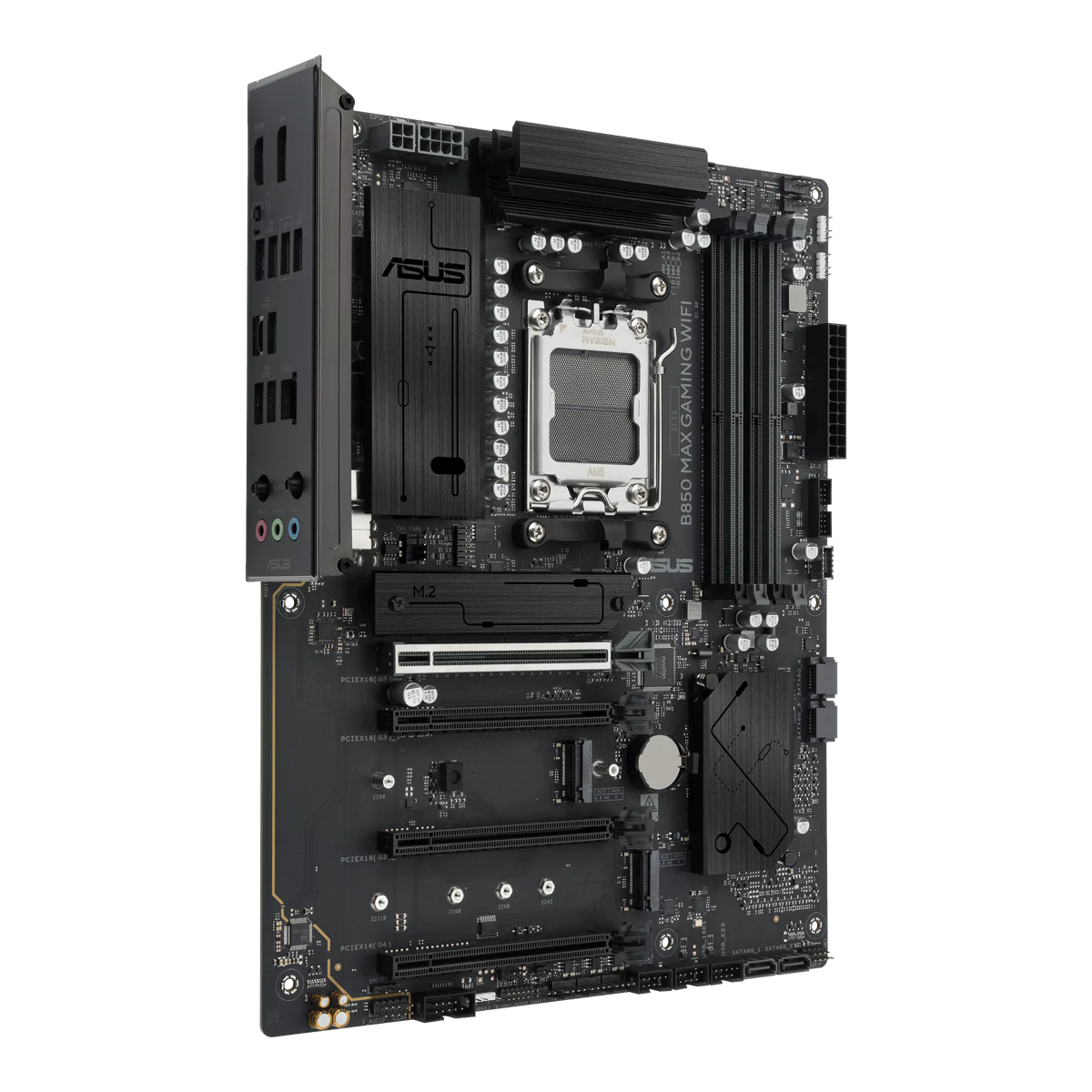

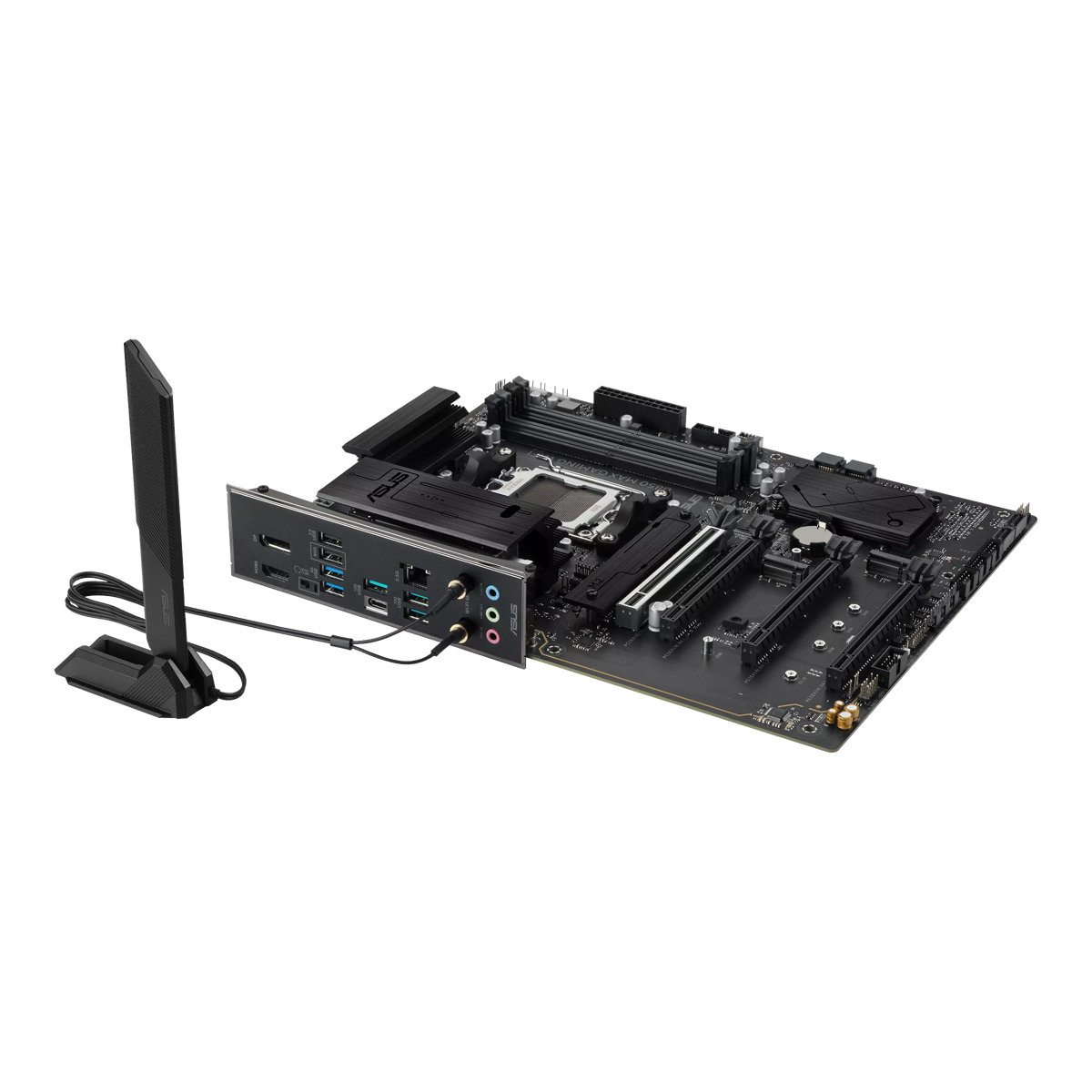

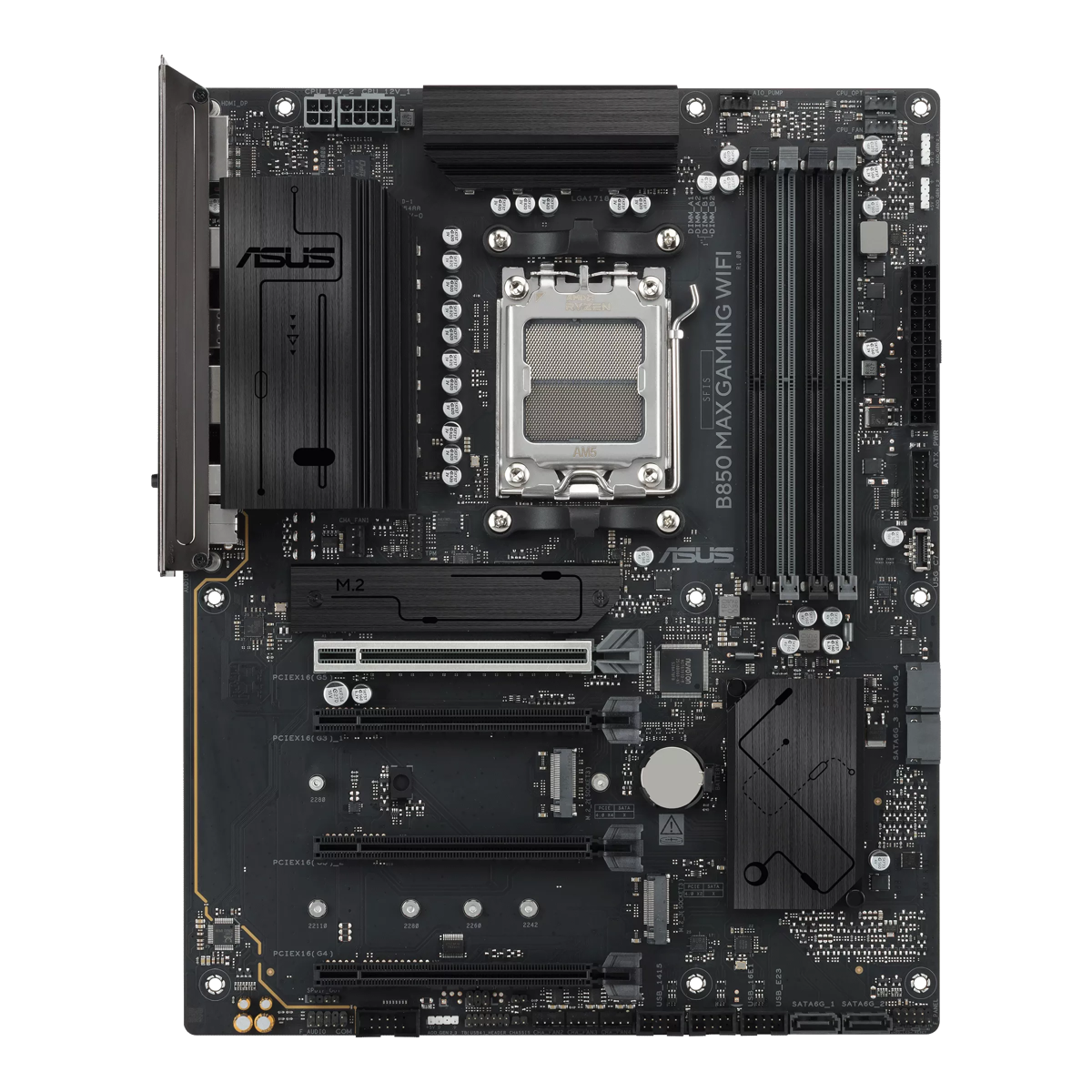

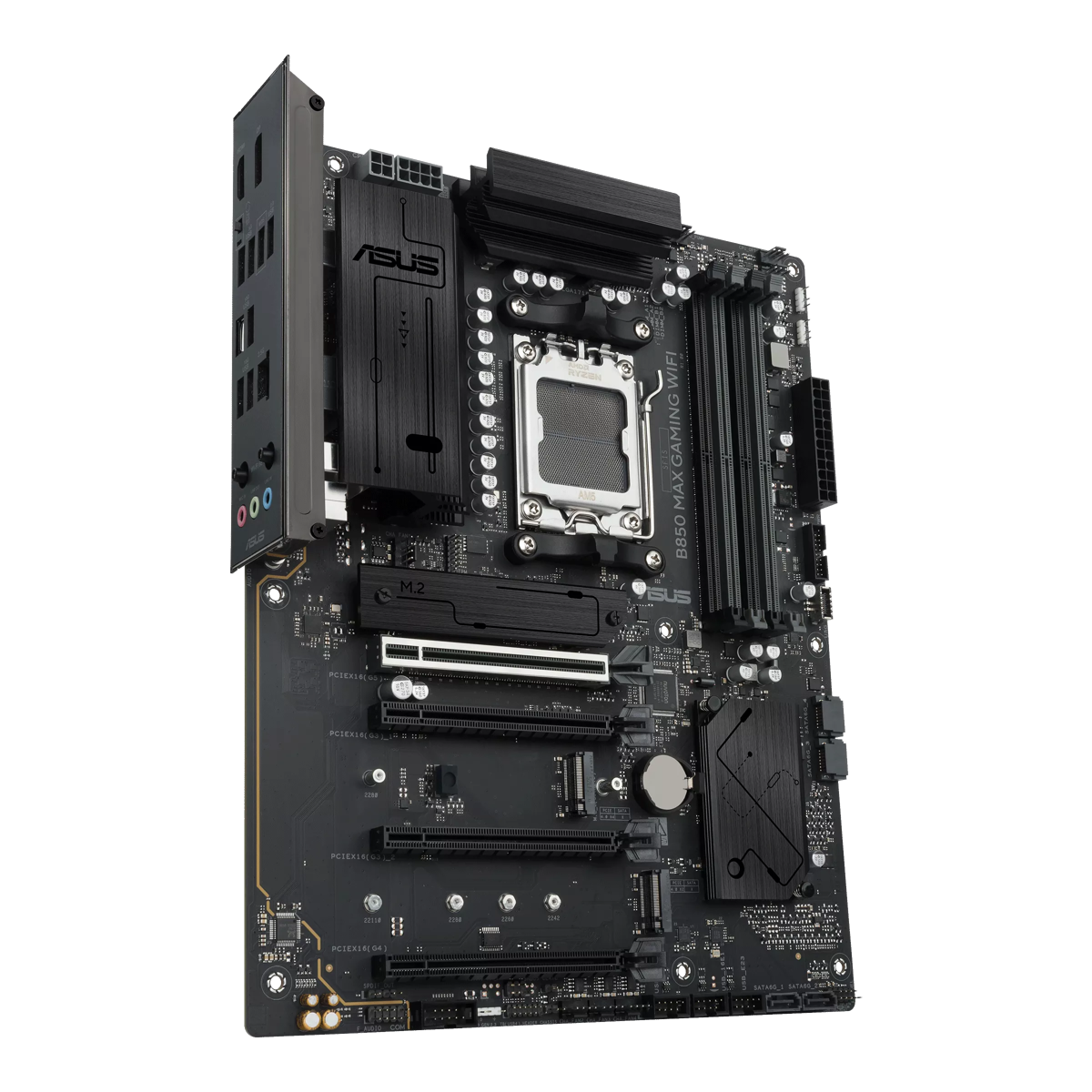

ASUS B850 MAX GAMING WIFI (AM5)
Limited Stock
✓ Synced with our store inventory
SRP: ₱17,200
₱14,750
Discounted cash price
1
✨ 100% Brand New
🛡️ Secure payments via GCash or Bank Transfer
🛵 Same day delivery within Lucena and nearby areas
📦 Shipping available via J&T Express
🏬 In-store pickup available
About this item
Specifications
| General | |
| Model | B850 MAX GAMING WIFI |
| CPU Socket | AMD Socket AM5 |
| Supported Processors | AMD Ryzen™ 9000 Series AMD Ryzen™ 8000 Series AMD Ryzen™ 7000 Series |
| Maximum CPU Support | Up to 170W |
| Chipset | AMD B850 |
| Form Factor | ATX |
| Dimensions | 305 × 244 mm |
| Memory | |
| Memory Support | 4 x DDR5 DIMM |
| Maximum Capacity | 256GB |
| Memory Type | ECC and Non-ECC Unbuffered DDR5 |
| Memory Architecture | Dual Channel |
| Ryzen 9000 Memory Speed | Up to 8400+ MT/s Manual OC Up to 8200+ MT/s EXPO / AEMP |
| Ryzen 8000 Memory Speed | Up to 9000+ MT/s Manual OC Up to 8600+ MT/s EXPO / AEMP |
| Ryzen 7000 Memory Speed | Up to 8000+ MT/s Manual OC Up to 8000+ MT/s EXPO / AEMP |
| Memory Profiles | AMD EXPO™ ASUS Enhanced Memory Profile (AEMP) |
| On-Die ECC | Supported on Non-ECC DDR5 |
| Graphics | |
| Integrated Graphics Support | Yes (CPU Dependent) |
| Display Outputs | 1 x DisplayPort 1.4 1 x HDMI 2.1 |
| DisplayPort Resolution | Up to 7680 × 4320 @ 30Hz |
| HDMI Resolution | Up to 3840 × 2160 @ 60Hz |
| Expansion Slots | |
| Primary PCIe Slot | 1 x PCIe 5.0 x16 with Ryzen 9000 / 7000 PCIe 4.0 x8 or x4 with Ryzen 8000 |
| Chipset PCIe Slots | 1 x PCIe 4.0 x16 (x4 Mode) 2 x PCIe 3.0 x16 (x1 Mode) |
| Slot Sharing | PCIe 3.0 x16 Slots Share Bandwidth with SATA6G_1 / SATA6G_2 |
| Storage | |
| M.2 Slots | 3 |
| M.2_1 | PCIe 5.0 x4 with Ryzen 9000 / 7000 PCIe 4.0 x4 with Ryzen 8000 Type 2280 |
| M.2_2 | PCIe 4.0 x4 with Ryzen 9000 / 7000 PCIe 4.0 x4 or x2 with Ryzen 8000 Type 2280 |
| M.2_3 | PCIe 4.0 x2 Type 2242 / 2260 / 2280 / 22110 |
| SATA Ports | 4 x SATA 6Gb/s |
| RAID Support | RAID 0 / 1 / 5 / 10 |
| Network | |
| LAN | Realtek® 2.5Gb Ethernet |
| LAN Features | ASUS LANGuard |
| Wireless | 2x2 Wi-Fi 6E |
| Wi-Fi Standards | 802.11ax |
| Wi-Fi Bands | 2.4 GHz 5 GHz 6 GHz |
| Bluetooth | Bluetooth® 5.4 with LE Audio |
| USB | |
| Rear USB | 4 x USB 10Gbps (3 Type-A + 1 Type-C) 2 x USB 5Gbps Type-A 2 x USB 2.0 Type-A |
| Front USB | 1 x USB 5Gbps Type-C 2 x USB 5Gbps Type-A 6 x USB 2.0 |
| Front USB Type-C Power | Up to 5V / 3A |
| Audio | |
| Audio Codec | Realtek® 7.1 Surround Sound HD Audio Codec |
| Maximum Playback Quality | 24-bit / 192kHz |
| Audio Features | Jack Detection Multi-Streaming Front Panel Jack Retasking Audio Shielding Premium Audio Capacitors Dedicated Audio PCB Layers |

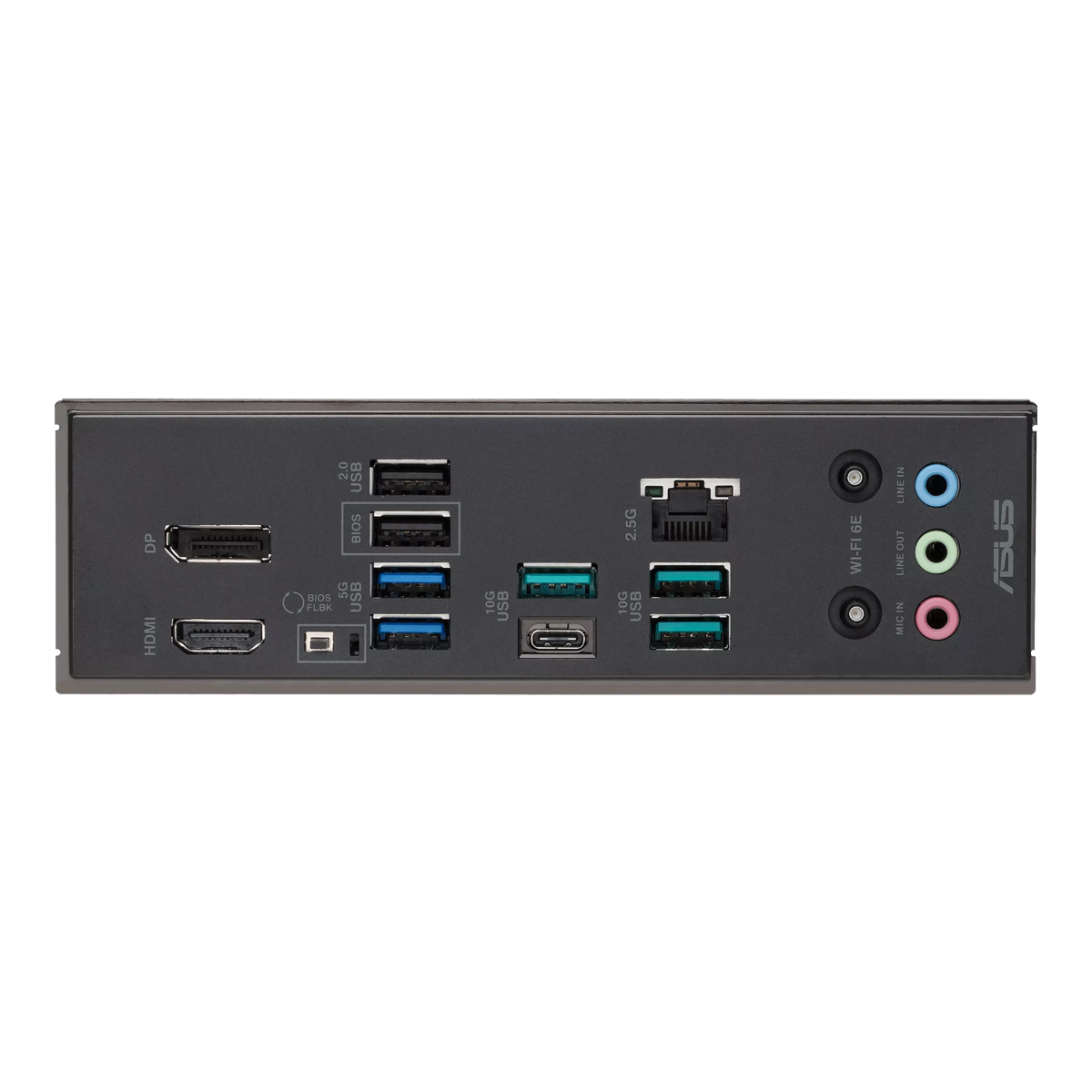

| Rear I/O | |
| Video Outputs | 1 x DisplayPort 1 x HDMI |
| USB | 4 x USB 10Gbps 2 x USB 5Gbps 2 x USB 2.0 |
| Network | 1 x Realtek® 2.5Gb Ethernet |
| Wireless | Wi-Fi Module |
| Audio | 3 x Audio Jacks |
| Buttons | BIOS FlashBack™ |
| Internal Connectors | |
| Power | 1 x 24-pin ATX 1 x 8-pin CPU 1 x 4-pin CPU |
| Cooling | 1 x CPU Fan Header 1 x CPU Optional Fan Header 1 x AIO Pump Header 4 x Chassis Fan Headers |
| Storage | 3 x M.2 Slots 4 x SATA 6Gb/s |
| USB Headers | 1 x USB 5Gbps Type-C 1 x USB 5Gbps Header for 2 Ports 3 x USB 2.0 Headers for 6 Ports |
| Lighting | 3 x Addressable RGB Gen 2 Headers |
| Other Headers | Clear CMOS Chassis Intrusion COM Port Front Panel Audio S/PDIF Out SPI TPM Front Panel System Thunderbolt™ / USB4® Header |
| Features | |
| Protection Features | DIGI+ VRM LANGuard Overvoltage Protection SafeSlot Stainless-Steel Rear I/O |
| Q-Design Features | Q-Antenna Q-Dashboard Q-DIMM Q-LED Core Q-Slot |
| Thermal Features | Flexible M.2 Heatsink VRM Heatsink |
| EZ DIY Features | BIOS FlashBack™ Button and LED Pre-Mounted I/O Shield SafeSlot |
| Lighting | Aura Sync |
| Software | |
| Software | Armoury Crate Aura Creator Aura Sync Fan Xpert 2+ ASUS DriverHub ASUS MB Manager ASUS AI Advisor ASUS CPU-Z ASUS GlideX TurboV Core |
| Trial Software | Norton 360 Deluxe (60 Days) WinRAR (40 Days) |
| BIOS Utilities | ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode ASUS MyHotkey |
| BIOS | |
| BIOS | 32MB (256Mb) AMI UEFI BIOS |
| Manageability | |
| Manageability | Wake-on-LAN by PME PXE |
| Accessories | |
| Included Accessories | 2 x SATA 6Gb/s Cables 1 x ASUS WiFi Q-Antenna 1 x M.2 Rubber Package 3 x M.2 SSD Screw Packages 1 x Quick Start Guide |
| Operating System | |
| OS Support | Windows 11 Windows 10 64-bit |
