AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *
Chipset
AMD B450
Memory
4 x DIMM, Max. 128GB, DDR4
Onboard Monitor Ports
1 x D-Sub
1 x DVI-D
1 x HDMI™ port
Expansion Slots
1 x PCIe 3.0 x16 (x16/x8/x4 mode)
2 x PCIe 2.0 x1
Storage
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
LAN
Realtek® RTL8111H
ASUS LANGuard
Audio
Realtek ALC887/897 7.1-Channel
USB Ports
Rear USB Port ( Total 6 )
2 x USB 3.2 Gen 2 (up to 10Gbps) port(s)(2 x Type-A)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)

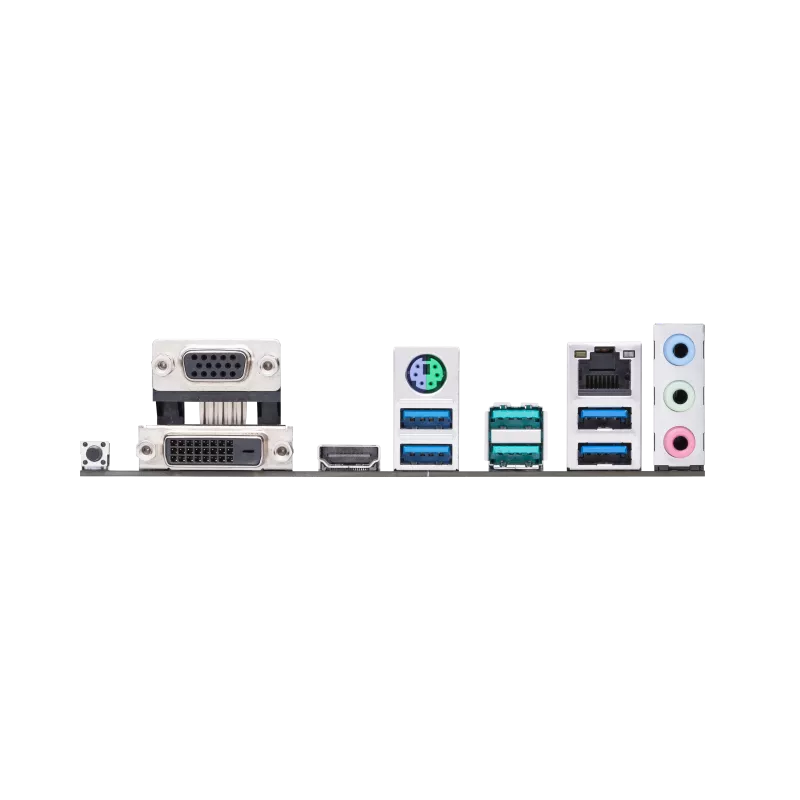

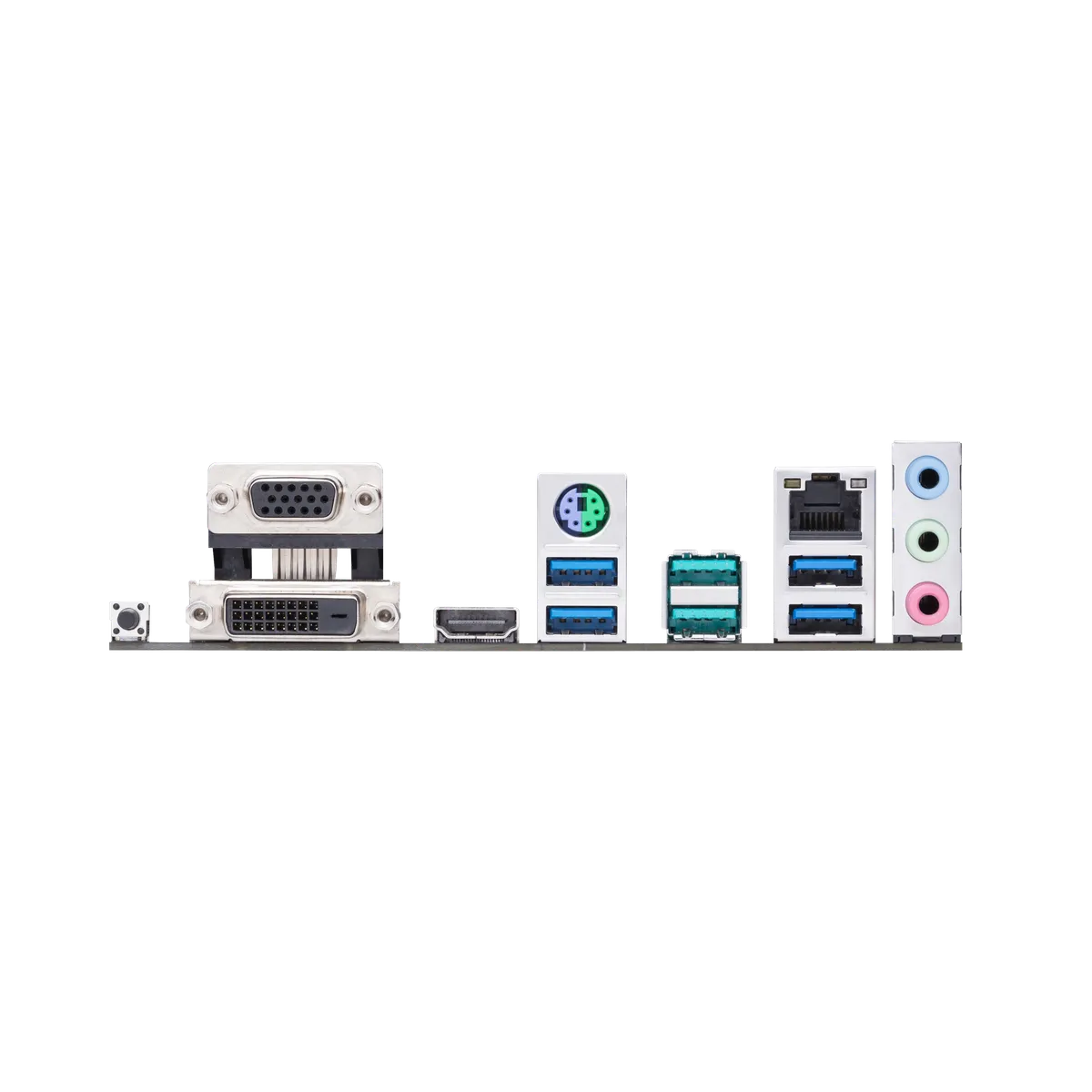

Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
4 x USB 3.2 Gen 1 (blue) Type-A
3 x Audio jack(s)
1 x BIOS FlashBack™ Button(s)
Internal I/O Ports
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x SPI TPM header
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x Speaker connector
1 x RGB Header
Accessories
User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
Form Factor
mATX Form Factor
9.6 inch x 9.5 inch ( 24.4 cm x 24 cm )
