Motherboard

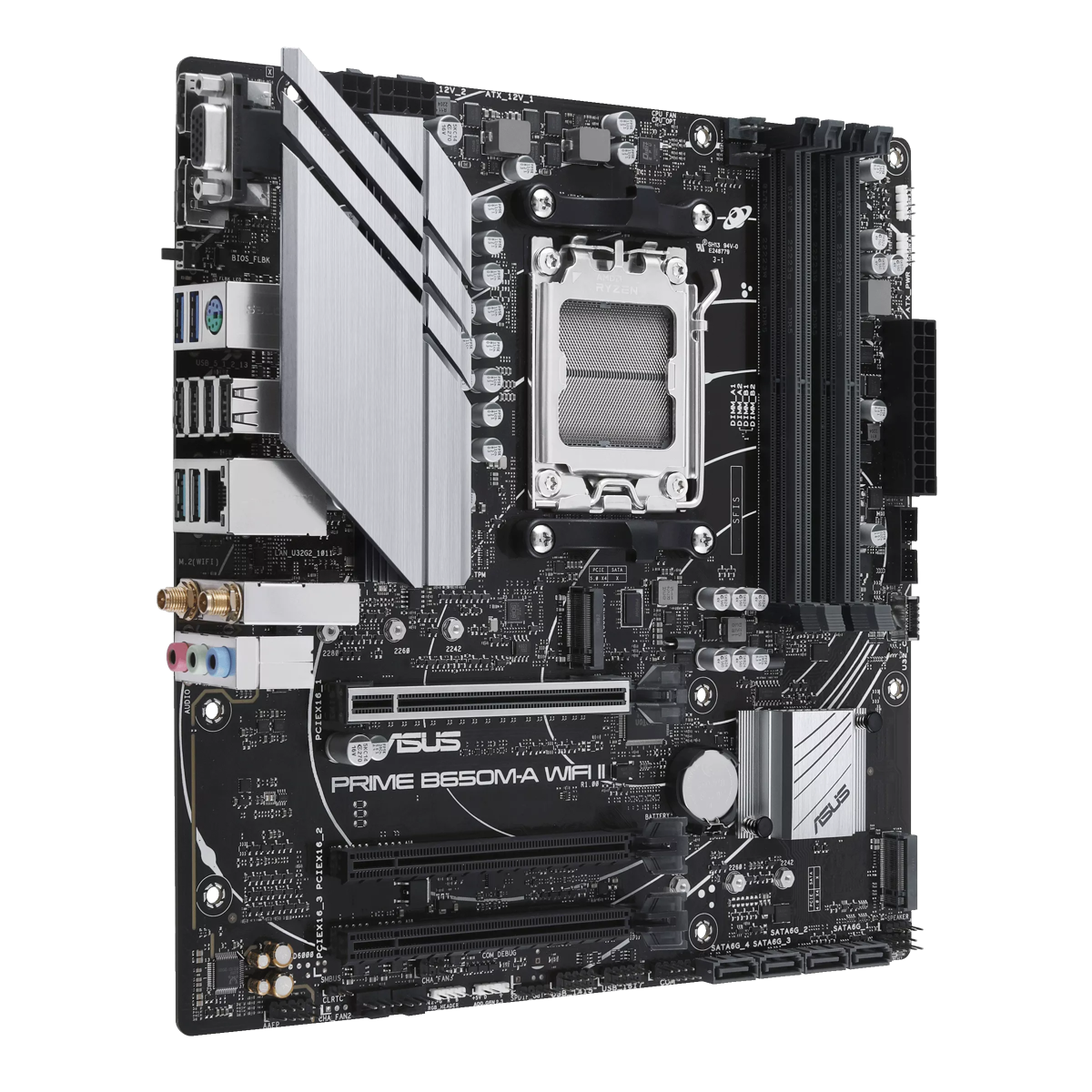

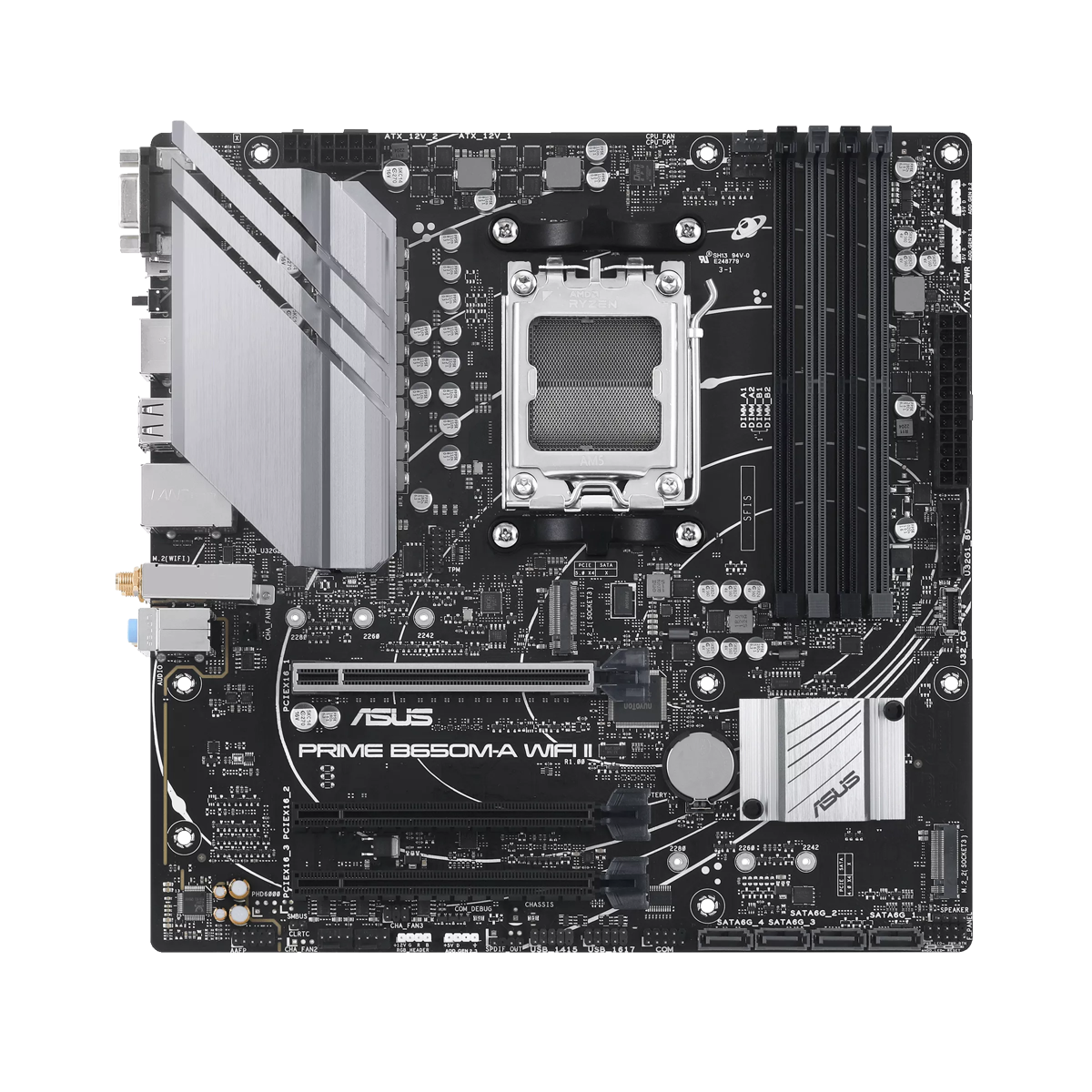

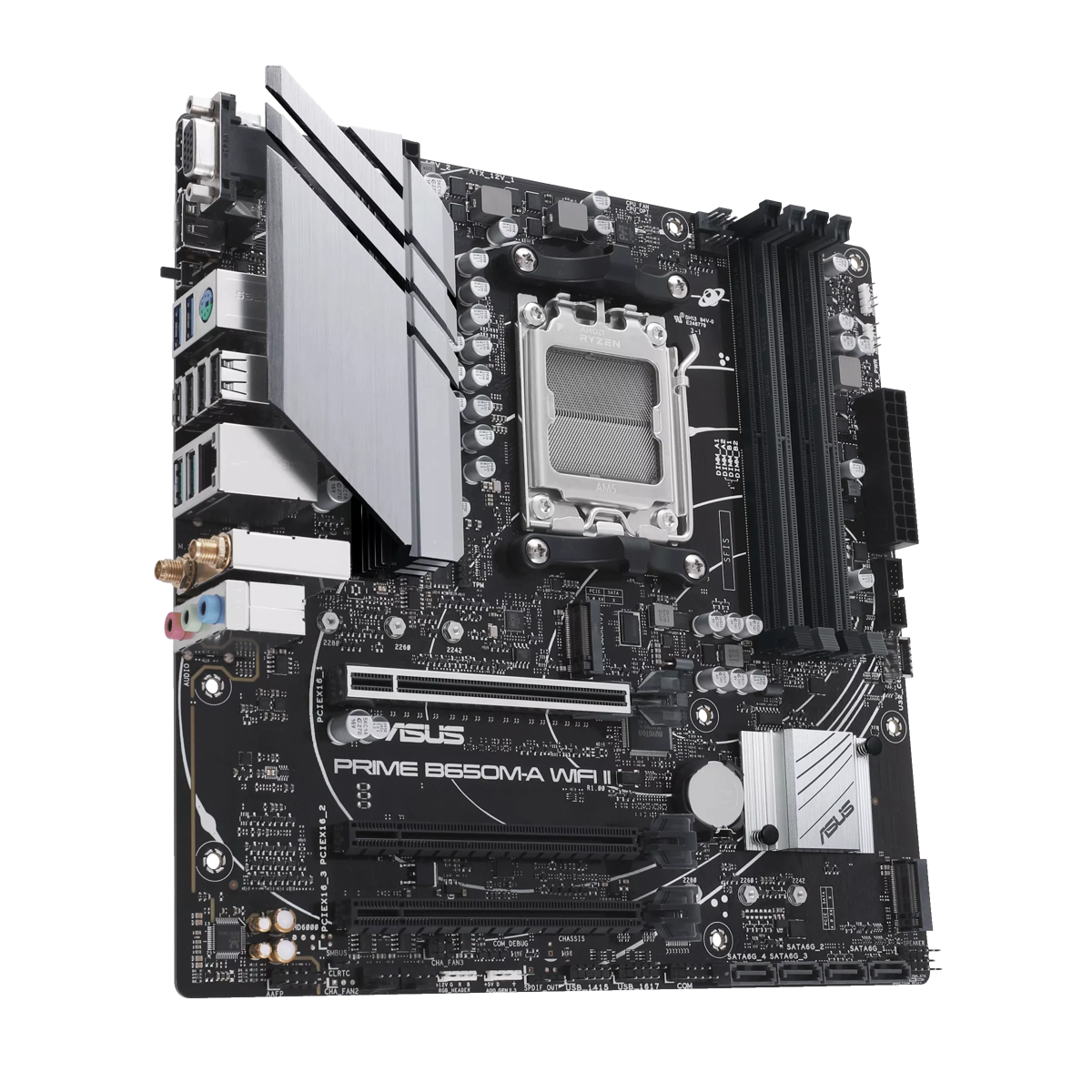

ASUS PRIME B650M-A WIFI II (AM5)
Limited Stock
✓ Synced with our store inventory
✨ New Arrival
SRP: ₱10,800
₱9,200
Discounted cash price
1
✨ 100% Brand New
🛡️ Secure payments via GCash or Bank Transfer
🛵 Same day delivery within Lucena and nearby areas
📦 Shipping available via J&T Express
🏬 In-store pickup available
About this item
| General | |
| Model | PRIME B650M-A WIFI II |
| Socket | AM5 |
| Chipset | AMD B650 |
| CPU Support | AMD Ryzen™ 9000 Series AMD Ryzen™ 8000 Series AMD Ryzen™ 7000 Series |
| Maximum CPU TDP | Up to 170W |
| Memory | |
| Memory Slots | 4 x DDR5 DIMM |
| Maximum Capacity | 192GB |
| Memory Support | DDR5 7600+(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800 |
| Memory Architecture | Dual Channel |
| Memory Support | ECC & Non-ECC Unbuffered |
| Overclocking Support | AMD EXPO™ |
| Memory Technology | OptiMem II |
| Graphics | |
| DisplayPort | 1 x DisplayPort 1.4 (Up to 8K@60Hz) |
| HDMI | 1 x HDMI 2.1 (Up to 4K@60Hz) |
| VGA | 1 x VGA |
| Expansion Slots | |
| PCIe x16 | 1 x PCIe 4.0 x16 (x16 mode for Ryzen™ 9000/7000) 1 x PCIe 4.0 x16 (x8/x4 mode for Ryzen™ 8000) |
| PCIe x16 (Chipset) | 2 x PCIe 4.0 x16 (x1 mode) |
| Storage | |
| M.2 Slots | 2 |
| M.2_1 | PCIe 5.0 x4 (Ryzen™ 9000/7000) PCIe 4.0 x4 (Ryzen™ 8000) |
| M.2_2 | PCIe 4.0 x4 |
| SATA | 4 x SATA 6Gb/s |
| RAID Support | PCIe RAID 0/1/10 SATA RAID 0/1/10 |
| Network | |
| Ethernet | Realtek 2.5Gb Ethernet |
| Wireless | Wi-Fi 6 (802.11a/b/g/n/ac/ax) |
| Bluetooth | Bluetooth 5.2 |
| USB | |
| Rear USB | 2 x USB 3.2 Gen 2 Type-A 2 x USB 3.2 Gen 1 Type-A 4 x USB 2.0 Type-A |
| Front USB | 1 x USB 3.2 Gen 1 Type-C Header 1 x USB 3.2 Gen 1 Header (2 Ports) 2 x USB 2.0 Headers (4 Ports) |
| Audio | |
| Audio Codec | Realtek 7.1 High Definition Audio |
| Audio Features | 24-bit/192kHz Playback Audio Shielding Premium Audio Capacitors Dedicated Audio PCB Layers |
| Rear I/O | |

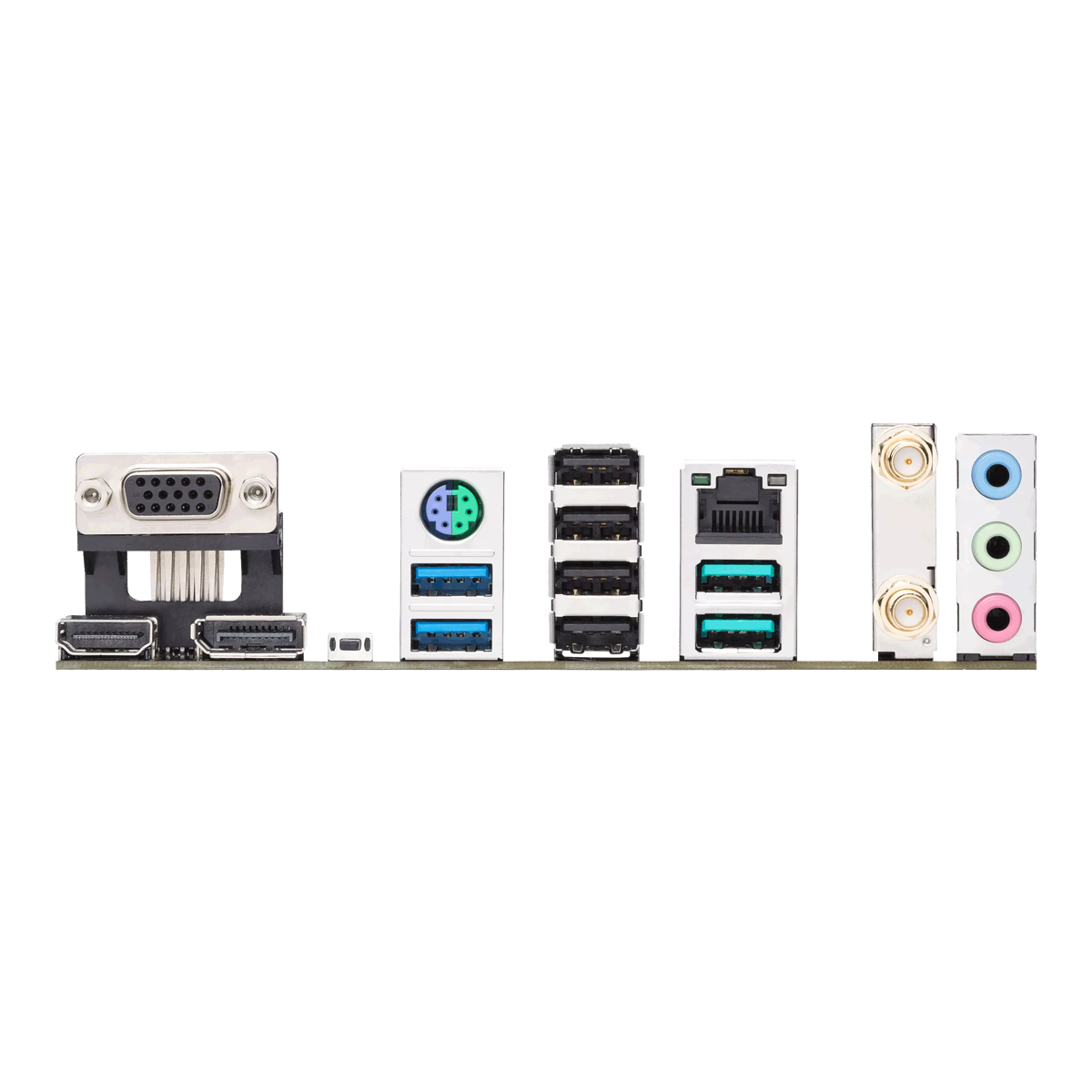

| Rear Ports | 2 x USB 3.2 Gen 2 Type-A 2 x USB 3.2 Gen 1 Type-A 4 x USB 2.0 Type-A 1 x DisplayPort 1 x VGA 1 x HDMI 1 x Wi-Fi Module 1 x Realtek 2.5Gb LAN 3 x Audio Jacks 1 x BIOS FlashBack Button 1 x PS/2 Combo Port |
| Internal Connectors | |
| Fan Headers | 1 x CPU Fan 1 x CPU OPT Fan 3 x Chassis Fan |
| Power Connectors | 1 x 24-pin ATX 1 x 8-pin CPU 1 x 4-pin CPU |
| Storage Connectors | 2 x M.2 4 x SATA 6Gb/s |
| USB Headers | 1 x USB 3.2 Gen 1 Type-C 1 x USB 3.2 Gen 1 Header 2 x USB 2.0 Headers |
| RGB Headers | 3 x Addressable Gen 2 1 x Aura RGB |
| Other Headers | Clear CMOS COM Port Front Audio (AAFP) S/PDIF Out Speaker SPI TPM System Panel |
| Features | |
| Protection | ASUS 5X Protection III |
| Thermal Design | VRM Heatsink |
| BIOS Features | BIOS FlashBack™ CrashFree BIOS 3 EZ Flash 3 UEFI EZ Mode |
| Lighting | Aura Sync |
| Software | |
| Included Software | Armoury Crate AI Suite 3 ASUS CPU-Z MyASUS Fan Xpert 2+ Aura Sync TurboV EVO DIGI+ VRM PC Cleaner |
| BIOS | |
| BIOS | 256Mb UEFI AMI BIOS |
| Accessories | |

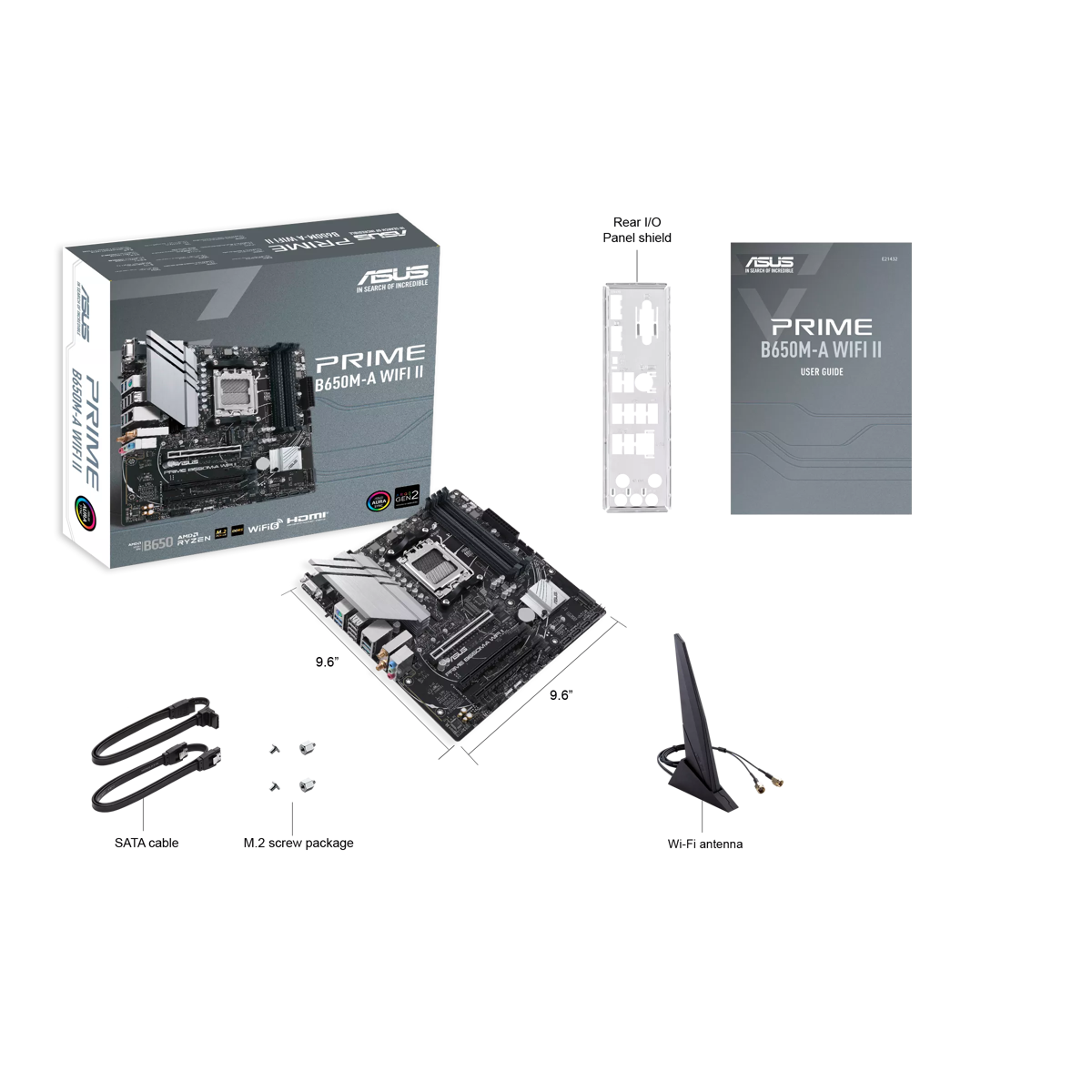

| Included Accessories | 2 x SATA Cables ASUS Wi-Fi Antenna I/O Shield M.2 Screw Package User Guide |
| Operating System | |
| OS Support | Windows 11 Windows 10 64-bit |
| Form Factor | |
| Form Factor | Micro-ATX |
| Dimensions | 244 x 244 mm |
