Motherboard

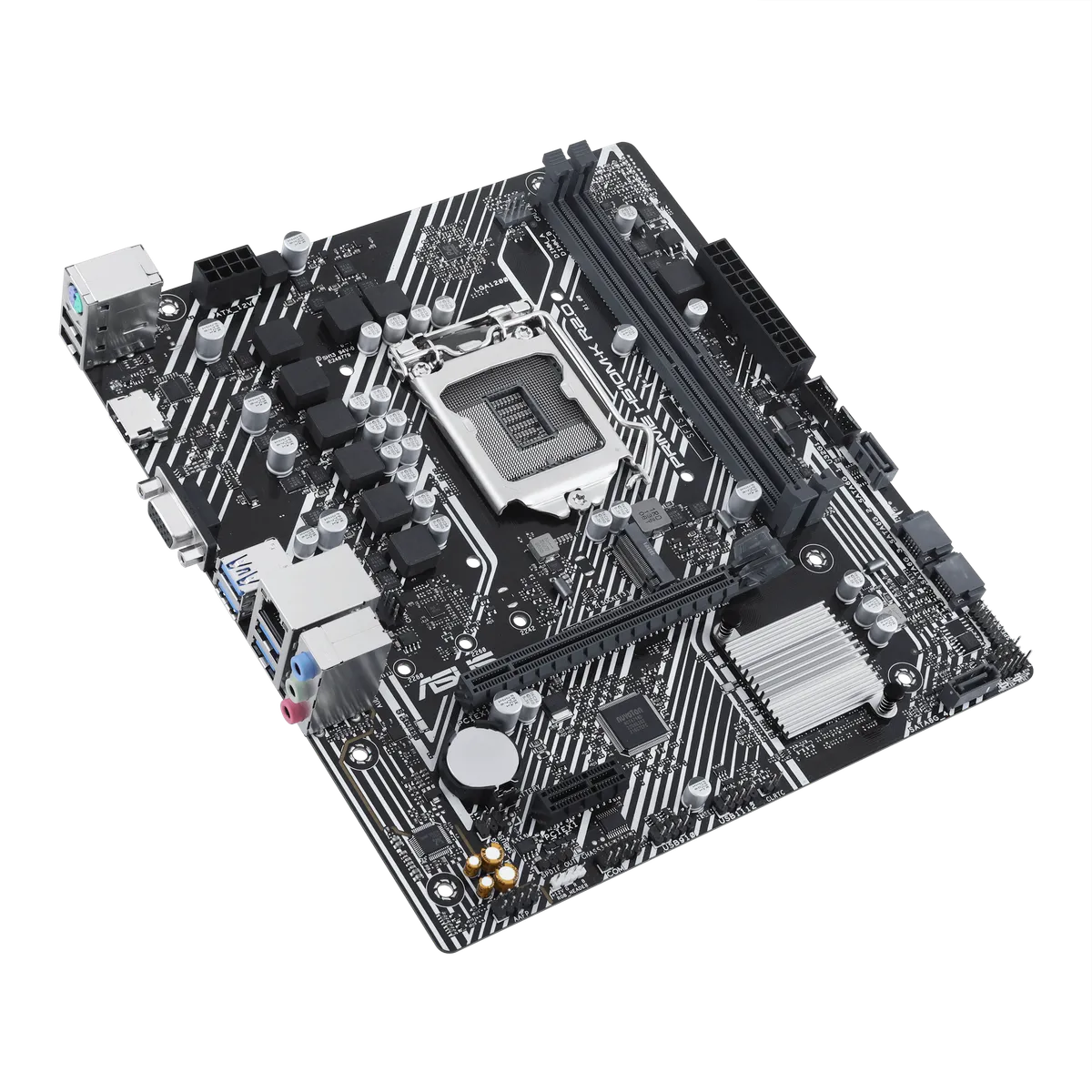

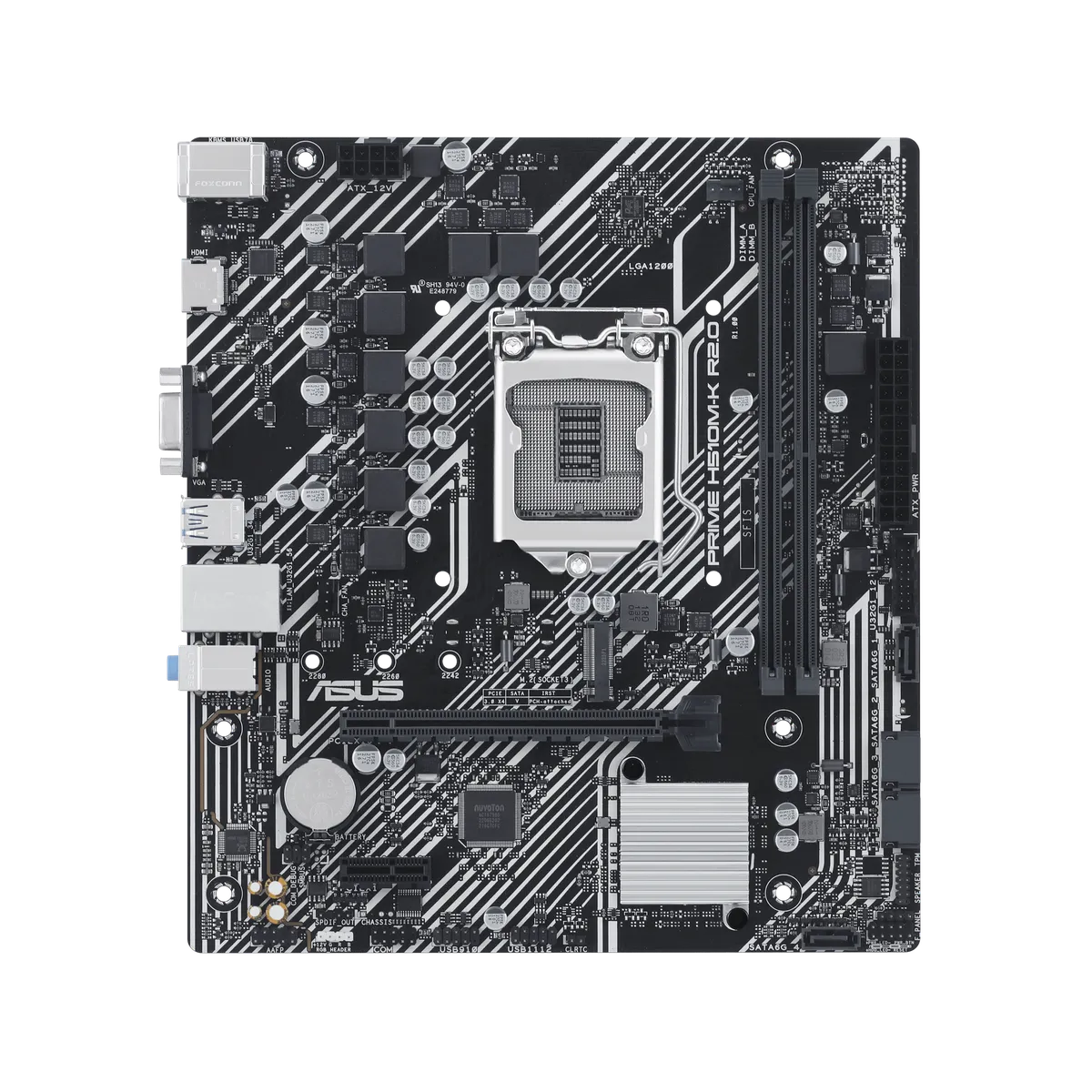

ASUS PRIME H510M-K R2.0 (VGA/HDMI)
SRP: ₱5,000
₱4,200
Discounted cash price
✓Form Factor: mATX
✓Socket: LGA 1200 (intel 10th and 11th gen)
✓Memory Type: DDR4
✓RAM Slot: 2
✓SATA Port: 4
✓M.2 Slot: 1
✓Display Connector: HDMI, VGA
✓WiFi/Bluetooth: None
In Stock
✓ Synced with our store inventory
1
✨ 100% Brand New
🛡️ Secure payments via GCash or Bank Transfer
🛵 Same day delivery within Lucena and nearby areas
📦 Shipping available via LBC Express
🏬 In-store pickup available

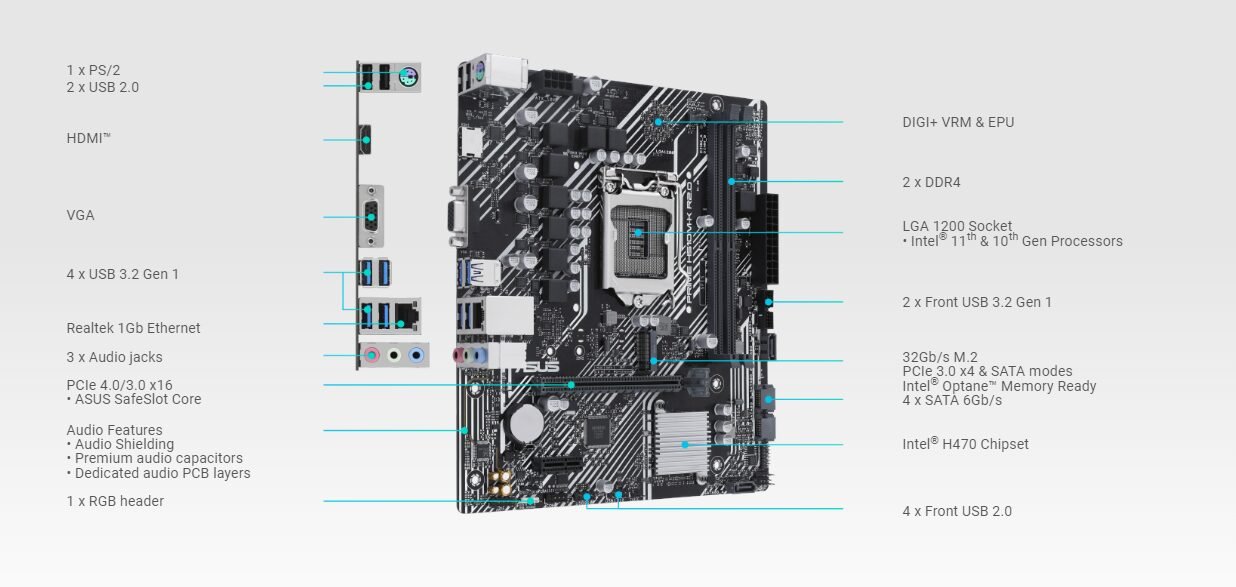

About this item
| Model | PRIME H510M-K R2.0 |
| CPU | Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* |
| Chipset | Intel® H470 Chipset |
| Memory | 2 x DIMM, Max. 64GB, DDR4 3200 |
| Graphics onboard port | 1 x VGA port 1 x HDMI™ port |
| Expansion Slots | 1 x PCIe 4.0/3.0 x16 slot 1 x PCIe 3.0 x1 slot |
| Storage | 1 x M.2 PCIe 3.0 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 1Gb Ethernet |
| USB | Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A)Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |

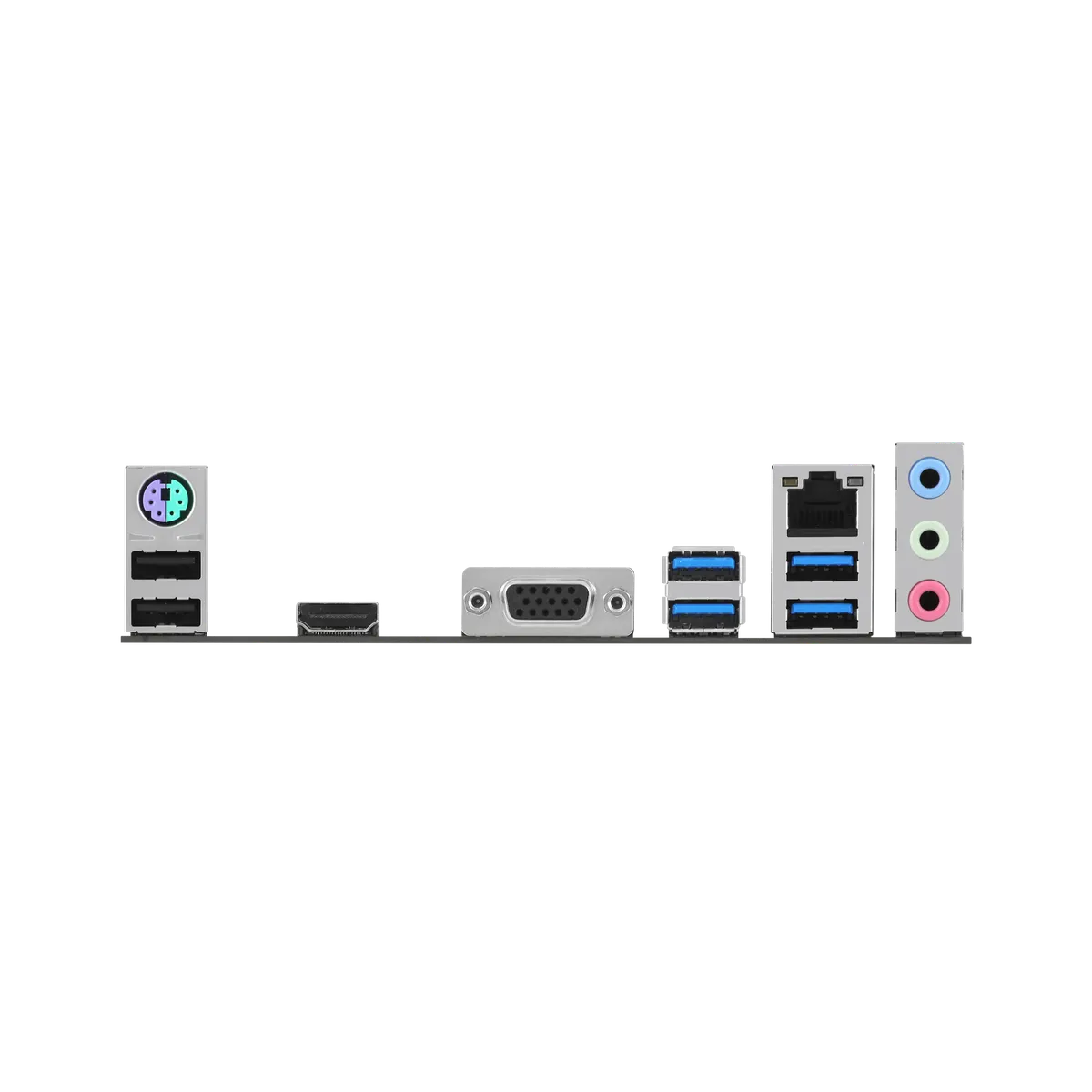

| Back Panel I/O Ports | 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x VGA port 1 x HDMI™ port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan headerPower related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| Accessories | Cables 2 x SATA 6Gb/s cablesMiscellaneous 1 x I/O Shield 1 x M.2 Anchor Documentation 1 x User guide |
| Form Factor | micro-ATX Form Factor 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm ) |
