Motherboard

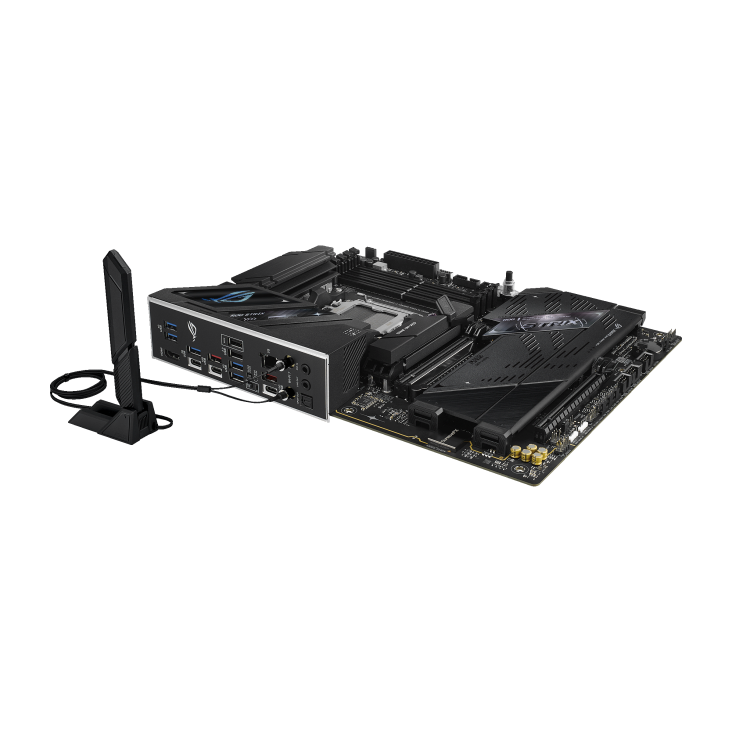

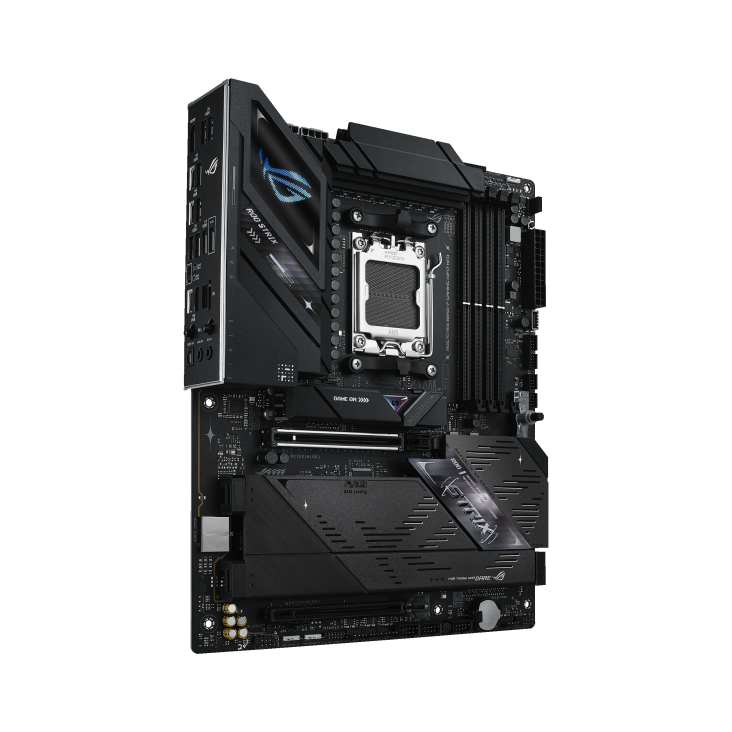

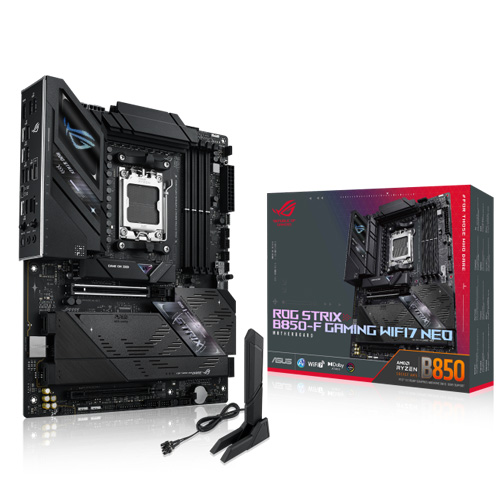

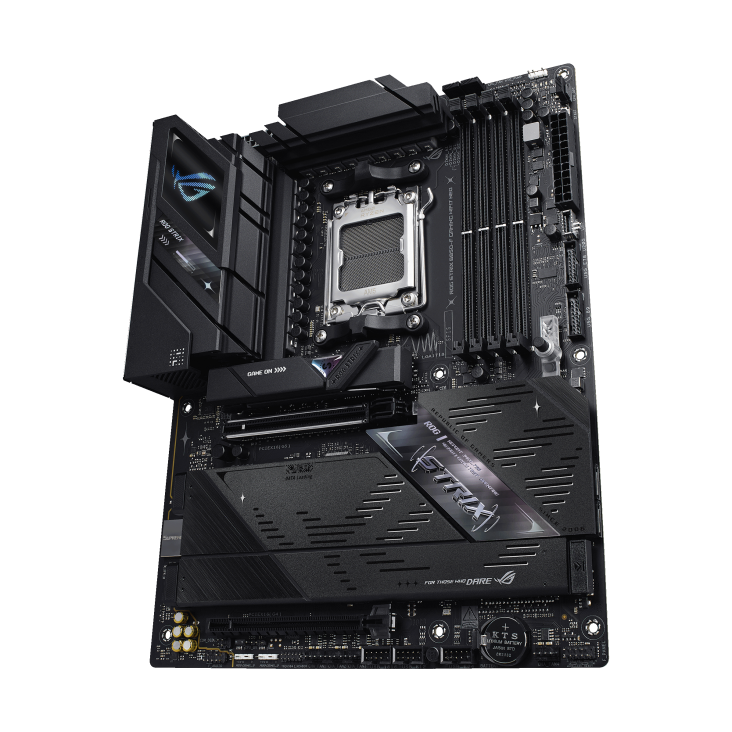

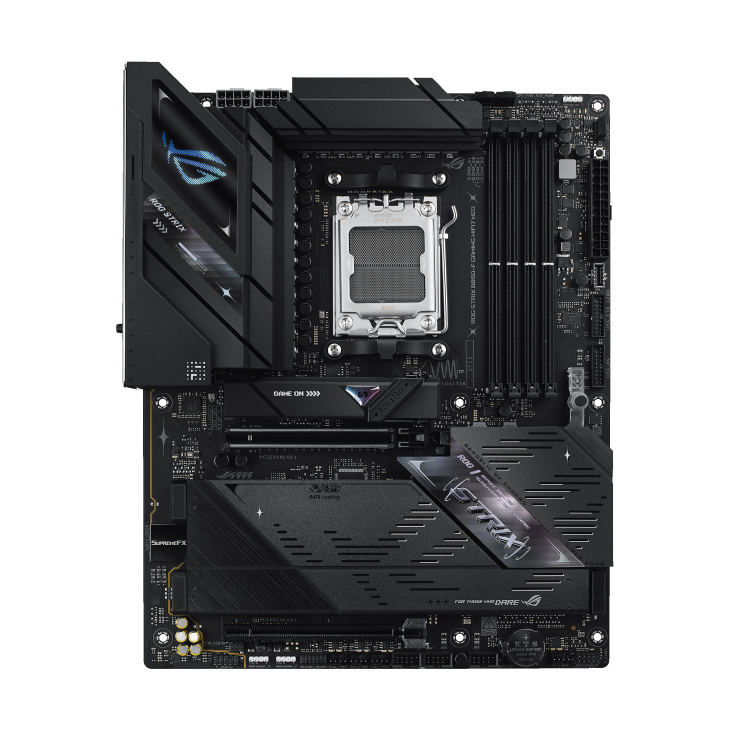

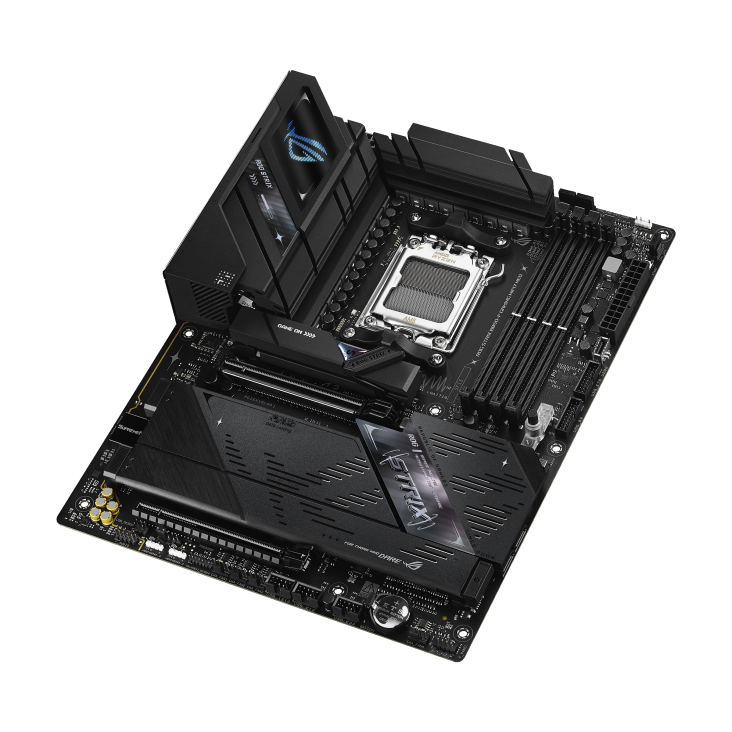

ASUS ROG STRIX B850-F GAMING WIFI7 NEO (AM5)
Limited Stock
✓ Synced with our store inventory
1
✨ 100% Brand New
🛡️ Secure payments via GCash or Bank Transfer
🛵 Same day delivery within Lucena and nearby areas
📦 Shipping available via J&T Express
🏬 In-store pickup available
About this item
| Platform | |
| CPU Socket | AMD AM5 |
| CPU Support | AMD Ryzen 9000 Series AMD Ryzen 8000 Series AMD Ryzen 7000 Series |
| Chipset | AMD B850 |
| Form Factor | ATX |
| Dimensions | 30.5 × 24.4 cm |
| Memory | |
| Memory Type | DDR5 |
| Memory Slots | 4 x DIMM |
| Maximum Memory | 256GB |
| Maximum Memory Speed | Up to 9000+ MT/s (OC) |
| Memory Architecture | Dual Channel |
| Memory Profiles | AMD EXPO ASUS AEMP |
| ECC Support | ECC & Non-ECC Unbuffered DIMM |
| Graphics | |
| Display Output | 1 x HDMI 2.1 |
| Maximum HDMI Resolution | 4K @ 60Hz |
| Expansion | |
| Primary PCIe Slot | 1 x PCIe 5.0 x16 |
| Additional PCIe Slot | 1 x PCIe 4.0 x16 (x4 mode) |
| Storage | |
| M.2 Slots | 4 |
| M.2_1 | PCIe 5.0 x4 |
| M.2_2 | PCIe 5.0 x4 |
| M.2_3 | PCIe 4.0 x4 |
| M.2_4 | PCIe 4.0 x4 |
| SATA Ports | 2 x SATA 6Gb/s |
| RAID Support | RAID 0 / 1 / 5 / 10 |
| Networking | |
| Ethernet | Realtek 5Gb Ethernet |
| Wi-Fi | Wi-Fi 7 (MediaTek MT7925) |
| Wi-Fi Bands | 2.4GHz / 5GHz / 6GHz |
| Bluetooth | Bluetooth 5.4 |
| Audio | |
| Audio Codec | ROG SupremeFX ALC4080 |
| Channels | 7.1 Surround Sound |
| Amplifier | Savitech SV3H712 |
| S/PDIF | Optical S/PDIF Out |
| Rear USB | |
| USB 10Gbps | 4 (2 x Type-A + 2 x Type-C) |
| USB 5Gbps | 6 (5 x Type-A + 1 x Type-C) |
| USB 2.0 | 2 x Type-A |
| Total Rear USB | 12 |
| Front USB Support | |
| USB 20Gbps | 1 x Connector |
| USB 5Gbps | 2 x Headers (4 Ports) |
| USB 2.0 | 3 x Headers (6 Ports) |
| Internal Connectors | |
| CPU Fan | 1 x 4-pin |
| CPU OPT Fan | 1 x 4-pin |
| AIO Pump | 1 x 4-pin |
| Chassis Fans | 4 x 4-pin |
| ARGB | 3 x Addressable Gen 2 |
| CPU Power | 2 x 8-pin +12V |
| Main Power | 1 x 24-pin |
| Thunderbolt / USB4 Header | 1 |
| Thermal Sensor Header | 1 |

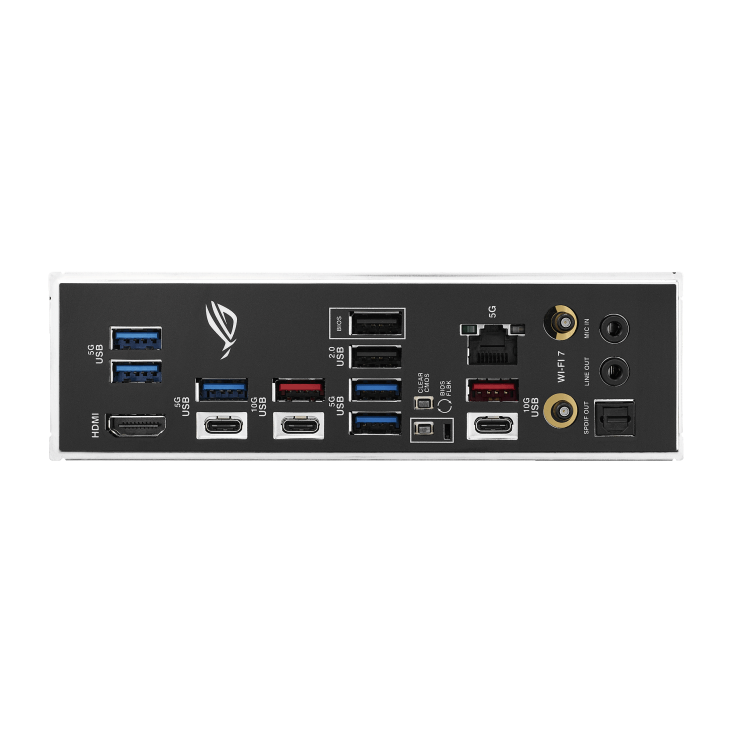

| Rear I/O | |
| HDMI | 1 |
| Ethernet | 1 x 5GbE |
| Wi-Fi Antenna | 1 x Wi-Fi Module |
| Audio Jacks | 2 |
| Optical S/PDIF | 1 |
| BIOS FlashBack Button | 1 |
| Clear CMOS Button | 1 |
| BIOS & OS | |
| BIOS | 64MB (512Mb) UEFI AMI BIOS |
| Operating System | Windows 11 |

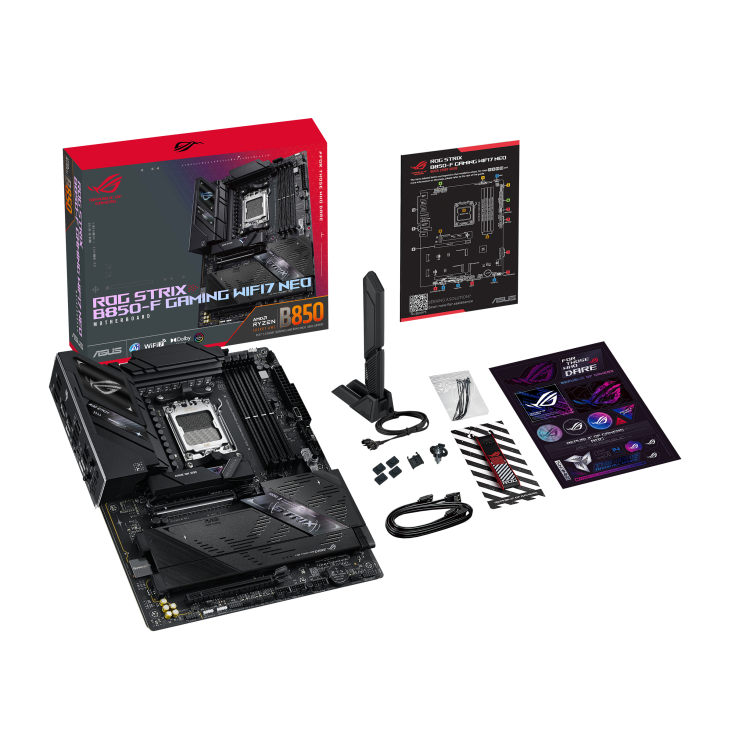

| Accessories | |
| SATA Cables | 2 |
| Wi-Fi Antenna | 1 x ASUS WiFi Q-Antenna |
| M.2 Accessories | 1 x M.2 Q-Latch Package 1 x M.2 Q-Slide Package 3 x M.2 Rubbers 1 x M.2 Backplate Rubber Package |
| Other | Cable Ties Package ROG Key Chain ROG Strix Stickers Quick Start Guide |
