Motherboard

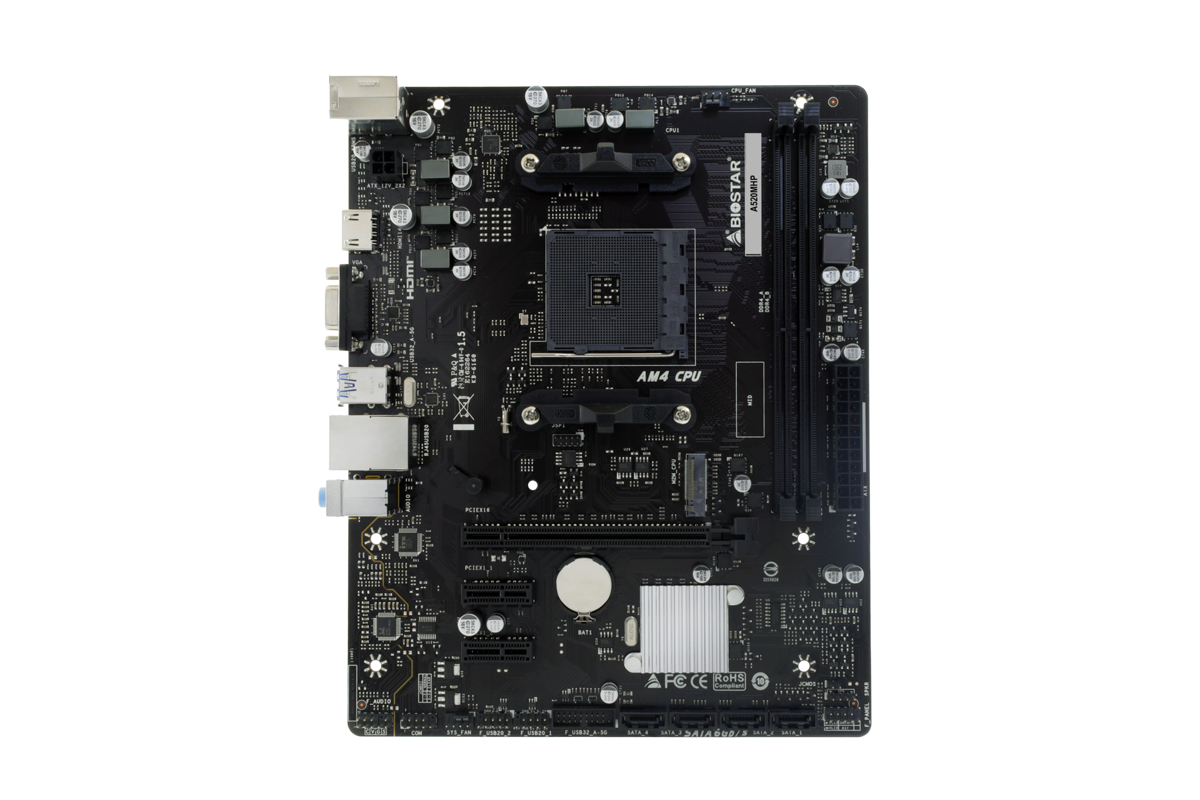

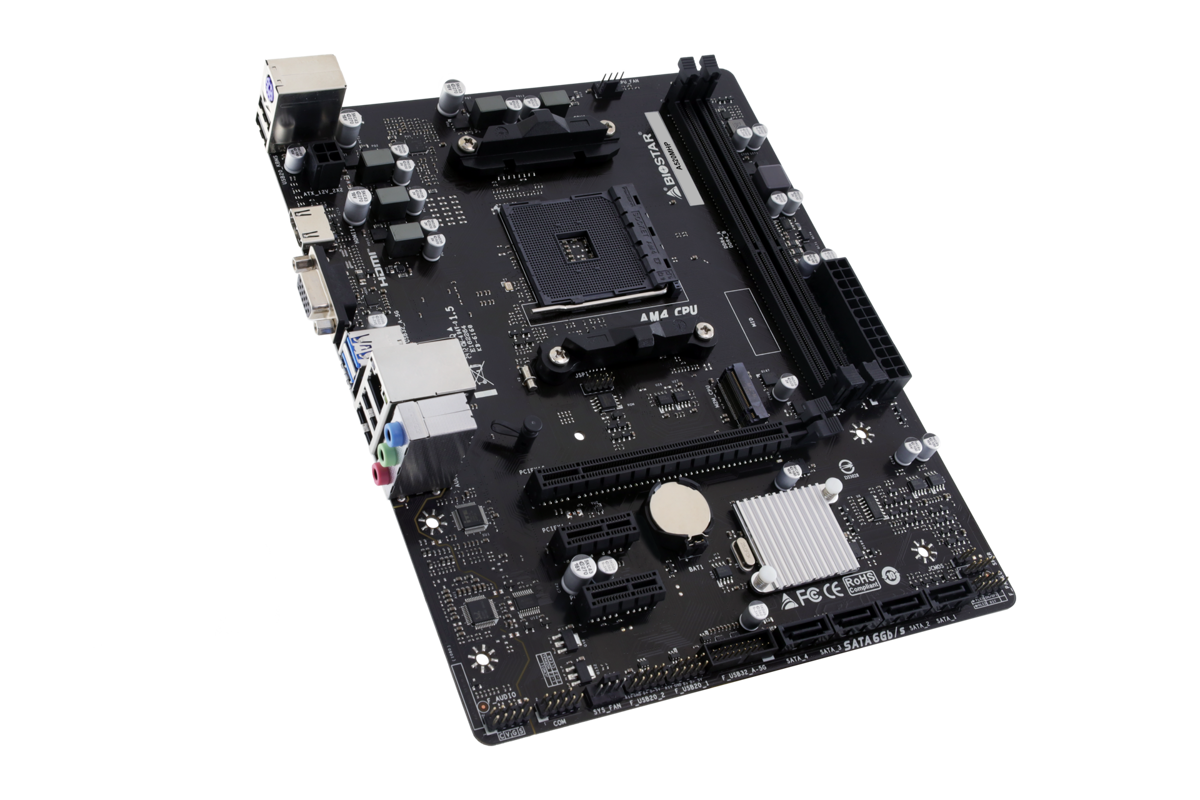

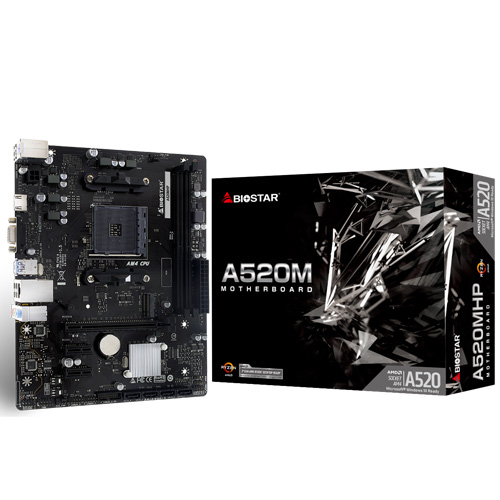

BIOSTAR A520MHP 2.0 (VGA/HDMI)
In Stock
✓ Synced with our store inventory
SRP: ₱3,500
₱2,950
Discounted cash price
1
✨ 100% Brand New
🛡️ Secure payments via GCash or Bank Transfer
🛵 Same day delivery within Lucena and nearby areas
📦 Shipping available via J&T Express
🏬 In-store pickup available
About this item
| Chipset | AMD A520 |
| CPU Support | |
| CPU Support | AMD Ryzen 5000 / 5000G / 4000G / 3000 / 3000G Series Processors Support for future AMD Ryzen processors via BIOS update |
| Memory | |
| Memory Support | DDR4 Dual Channel Memory Support |
| Memory Speeds | Vermeer CPUs: 4266+(OC) / 4133(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz Cezanne APUs: 4400+(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz Matisse CPUs: 4266+(OC) / 4133(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz Renoir APUs: 4400+(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz |
| Memory Slots | 2 x DDR4 DIMM |
| Maximum Memory | Up to 64GB |
| Memory Type | Non-ECC DDR4 Modules (8GB / 16GB / 32GB per DIMM) |
| Graphics | |
| Integrated Video | By CPU model Supports DX12 Supports HDCP |
| Storage | |
| Storage Support | 1 x M.2 Socket 4 x SATA III 6Gb/s |
| M.2 Support | M.2 Type 2260 / 2280 SSD PCIe 3.0 x4 (32Gb/s) NVMe / AHCI SSD SATA III SSD Support |
| SATA Support | 4 x SATA III 6Gb/s Supports AHCI & RAID 0 / 1 / 10 |
| Network | |
| LAN | Realtek RTL8111H 10/100/1000 Mb/s Auto Negotiation |
| Audio | |
| Audio Codec | Realtek ALC897 |
| Audio Support | 7.1 Channel High Definition Audio Hi-Fi Front Audio |
| USB | |
| USB Ports | 4 x USB 3.2 Gen1 Ports (2 Rear + 2 via Internal Header) 8 x USB 2.0 Ports (4 Rear + 4 via Internal Headers) |
| Expansion Slots | |
| Expansion Slots | AMD Ryzen 5000 / 3000 CPUs: 1 x PCIe 3.0 x16 (x16 or x4/x4/x4/x4) AMD Ryzen 5000G / 4000G / 3000G APUs: 1 x PCIe 3.0 x16 (x16 or x8/x4/x4) AMD A520 Chipset: 2 x PCIe 3.0 x1 |
| Rear I/O | |

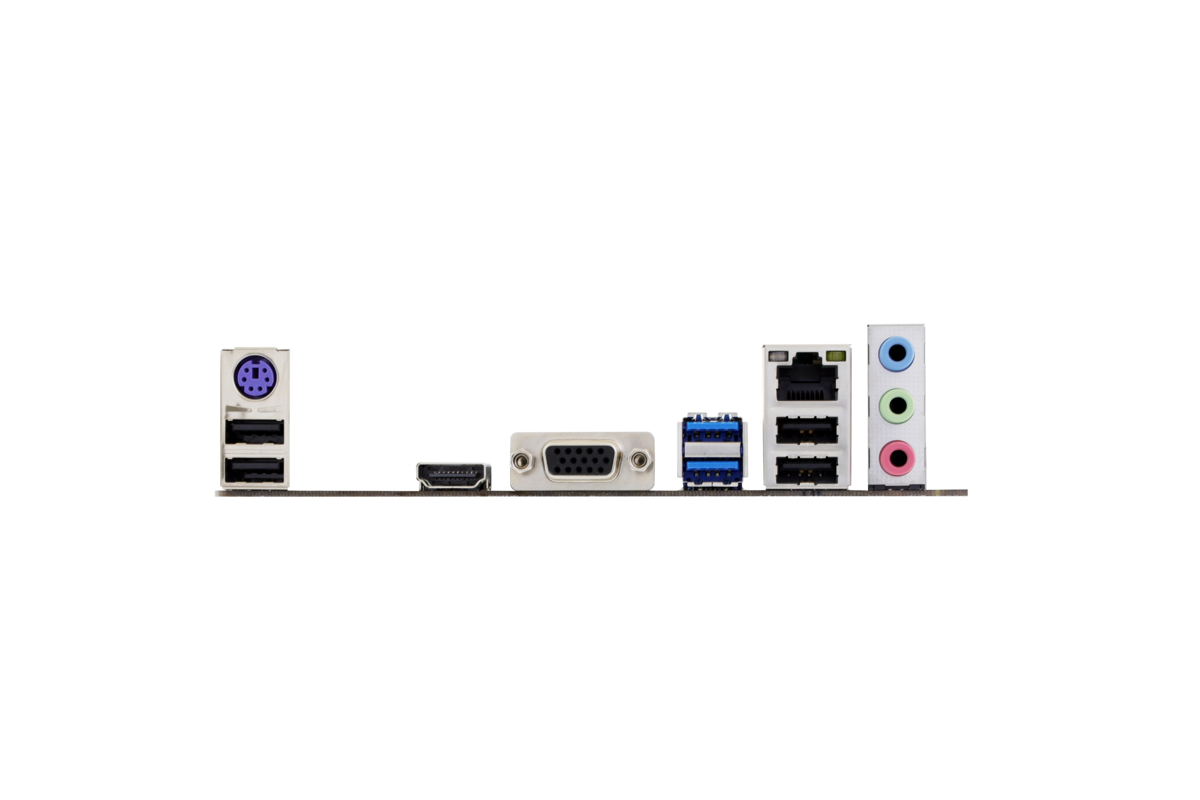

| Rear I/O | 1 x PS/2 Keyboard/Mouse 1 x VGA Port 1 x HDMI Port 1 x LAN Port 2 x USB 3.2 Gen1 4 x USB 2.0 3 x Audio Jacks |
| Internal I/O | |
| Internal I/O | 4 x SATA III Connectors 1 x USB 3.2 Gen1 Header 2 x USB 2.0 Headers 1 x 4-Pin CPU Power Connector 1 x 24-Pin ATX Power Connector 1 x CPU Fan Header 1 x System Fan Header 1 x Front Panel Header 1 x Front Audio Header 1 x Clear CMOS Header 1 x COM Serial Header 1 x Speaker Header |
| Physical | |
| Form Factor | Micro ATX |
| Dimensions | 19.0 cm x 23.5 cm |
| Operating System | |
| OS Support | Windows 10 64-bit Windows 11 64-bit |
| Accessories | |
| Accessories | 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide |
