-8%
AM4

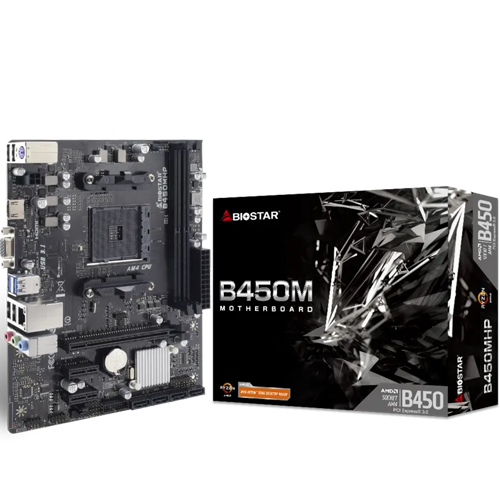

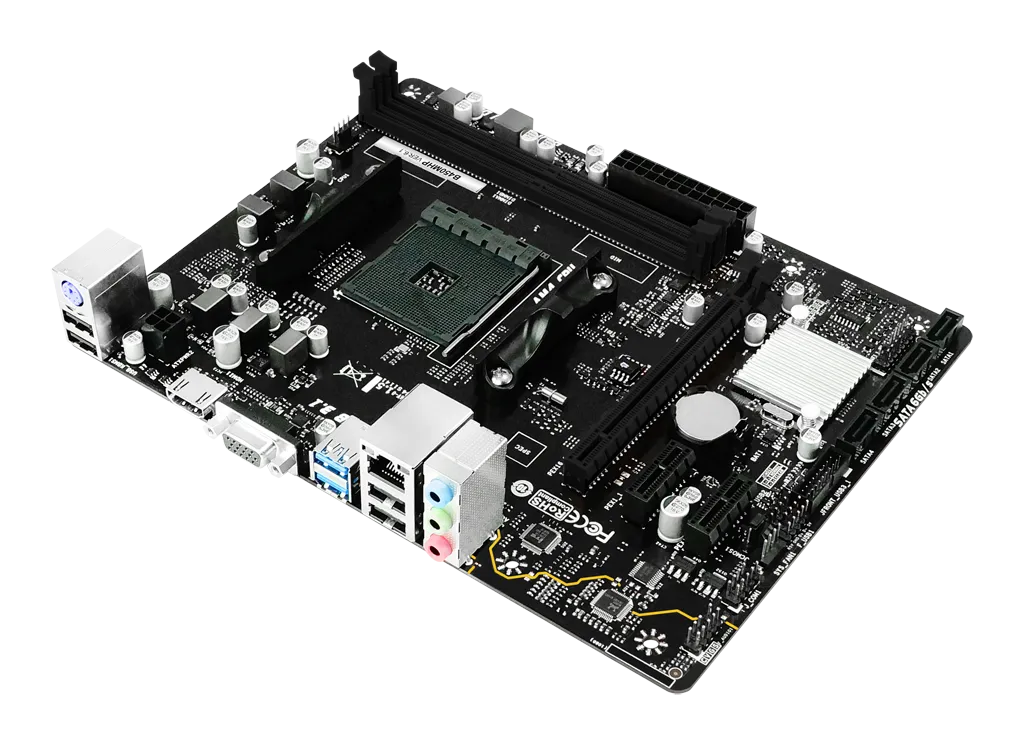

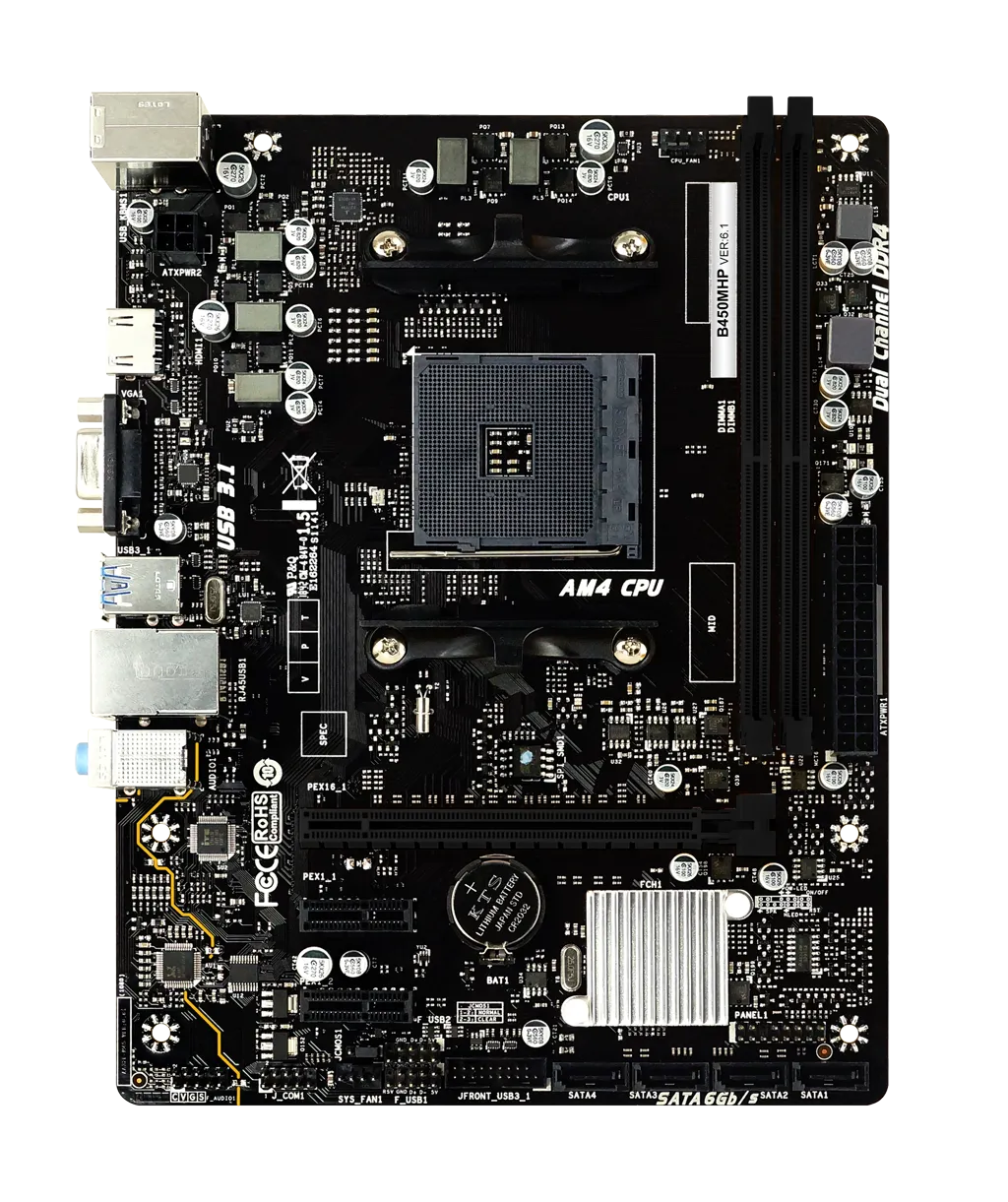

BIOSTAR B450M-HP (HDMI/VGA)
Availability:
Out of stock
- Form Factor: mATX
- Socket: AM4 (Ryzen 2000, 3000, 4000, 5000 series)
- Memory Type: DDR4
- RAM Slot: 2
- SATA Port: 4
- M.2 Slot: None
- Display Connector: HDMI, VGA
- WiFi/Bluetooth: None
SOLD OUT
Note: Price may change without notice! Message us by clicking "Inquire now" for the updated price and availability.
Out of stock
Compare| Brand | BIOSTAR |
|---|---|
| Memory Type | DDR4 |
| Form Factor | mATX |
| Socket | AM4 |
| Chipset | AMD B450 |
| CPU SUPPORT | Socket AM4 supports AMD A-series APU, Ryzen APU / Ryzen CPU |
| MEMORY | Supports Dual Channel DDR4 1866/2133/2400/2666/2933/3200+(OC) 2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory |
| INTEGRATED VIDEO | By CPU model Supports DX12 Supports HDCP |
| STORAGE | 4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10 |
| LAN | Realtek RTL8111H-VB 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability |
| AUDIO CODEC | ALC897 7.1 Channels, High Definition Audio |
| USB | 4 x USB 3.2 (Gen1) ports (2 on rear I/Os and 2 via internal headers) 8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers) |
| EXPANSION SLOT | AMD Processors 1 x PCIe 3.0 x16 Slot (The bandwidth is depended on CPU) AMD Chipset 2 x PCIe 2.0 x1 Slot |

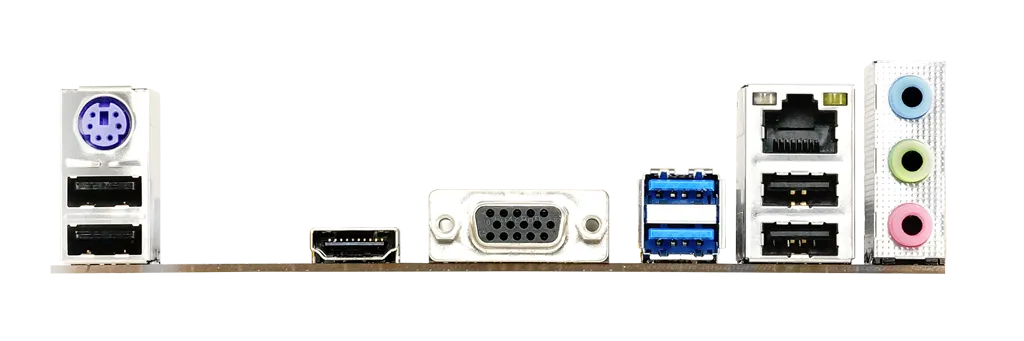

| REAR I/O | 1 x PS/2 Keyboard/ Mouse 1 x VGA Port 1 x HDMI Port 1 x LAN port 2 x USB 3.2 (Gen1) Ports 4 x USB 2.0 Ports 3 x Audio Jack |
| INTERNAL I/O | 4 x SATA III 6.0Gb/s Connectors 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 4-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Clear CMOS Header 1 x COM Serial Header |
| DIMENSION | Micro ATX Form Factor Dimension: 22.6cm x 17.4cm ( W x L ) |
