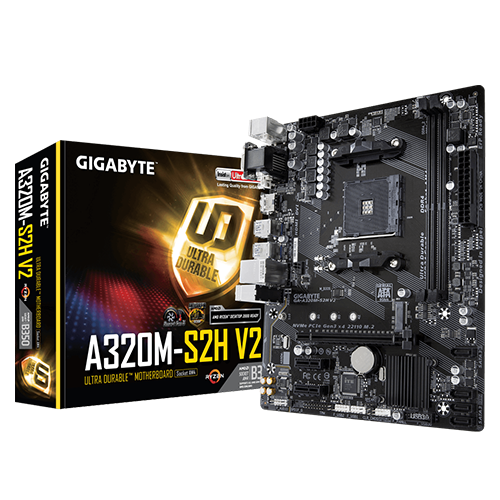

Gigabyte A320M S2H V2

Availability:

Out of stock
Add to wishlist
Compare
  • Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
  • High Quality Audio Capacitors and Audio Noise Guard
  • Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software
  • Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
  • GIGABYTE™ UEFI BIOS
  • All New GIGABYTE™™ APP Center, Simple and Easy Use

SOLD OUT

Out of stock

Compare
CPU
  1. AM4 Socket: Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors
Chipset AMD B350
Memory
  • 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
  • Dual channel memory architecture
  • Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules


Onboard Graphics Integrated Graphics Processor:

  • 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
  • 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  • 1 x HDMI port, supporting a maximum resolution of 4096×2160@24 Hz
    * Support for HDMI 1.4 version.

Maximum shared memory of 2 GB
Audio Realtek®Audio CODEC
LAN Realtek® GbE LAN chip (10/100/1000 Mbit)
Storage Interface 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support)
* Actual support may vary by CPU.
* Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU.4 x SATA 6Gb/s connectors
USB Chipset:

  • 2 x USB 3.1 Gen 1 ports available through the internal USB header
  • 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

CPU:

  • 4 x USB 3.1 Gen 1 ports on the back panel
