AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
Chipset
AMD A520
Memory
2 x DDR4 DIMM sockets supporting up to 64 GB
Onboard Graphics Port
1 x DisplayPort port
2 x HDMI (2.1) ports
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)
Wireless Communication module
WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 4.2
Expansion Slots
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Storage Interface
1 x M.2 connector PCIe 3.0
4 x SATA 6Gb/s connectors
USB
4 x USB 3.2 Gen 1 ports on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper

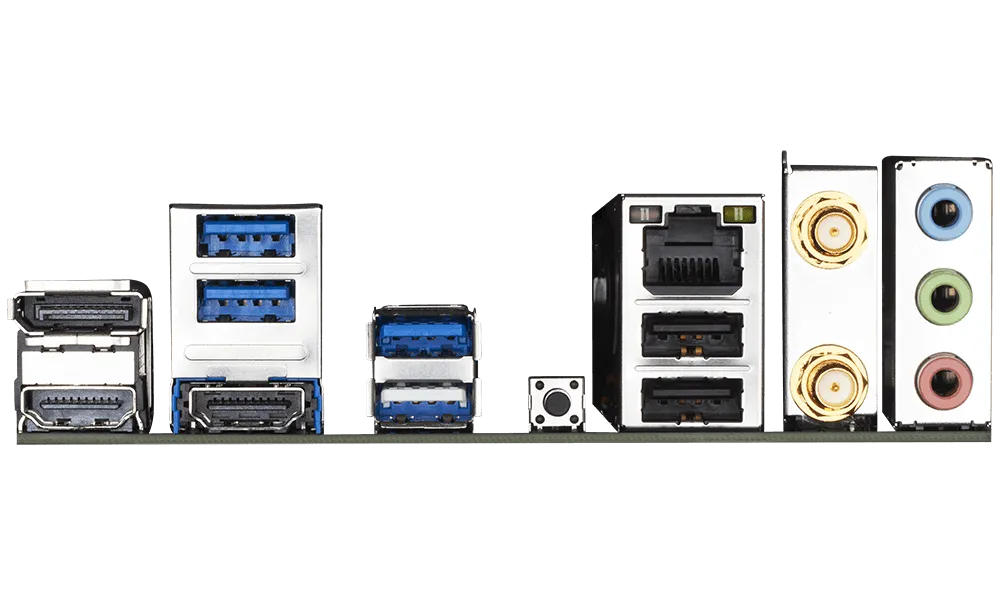

Back Panel Connectors
1 x DisplayPort
2 x HDMI ports
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 ports
2 x SMA antenna connectors (1T1R)
3 x audio jacks
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
