Motherboard
Gigabyte A520M DS3H WIFI6E (HDMI/DP)
Incoming Stock
✓ Synced with our store inventory
SRP: ₱5,500
₱4,700
Discounted cash price
1
✨ 100% Brand New
🛡️ Secure payments via GCash or Bank Transfer
🛵 Same day delivery within Lucena and nearby areas
📦 Shipping available via J&T Express
🏬 In-store pickup available
About this item
| General | |
| Socket | AM4 |
| Chipset | AMD A520 |
| CPU Support | AMD Ryzen™ 5000 G-Series AMD Ryzen™ 5000 Series AMD Ryzen™ 4000 G-Series AMD Ryzen™ 3000 G-Series AMD Ryzen™ 3000 Series |
| Memory | |
| Memory Slots | 4 x DDR4 DIMM |
| Maximum Capacity | 128GB |
| Memory Support | DDR4 4733(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz |
| Memory Architecture | Dual Channel |
| Memory Support | ECC & Non-ECC Unbuffered |
| Profile Support | Intel XMP |
| Graphics | |
| DisplayPort | 1 x DisplayPort 1.4 Up to 5120 x 2880 @ 60Hz |
| HDMI | 1 x HDMI 2.1 Up to 4096 x 2160 @ 60Hz |
| Maximum Shared Memory | 16GB |
| Expansion Slots | |
| PCIe x16 | 1 x PCIe 3.0 x16 |
| PCIe x1 | 1 x PCIe 3.0 x1 |
| Storage | |
| M.2 Slots | 1 x M.2 2280 |
| M.2 Support | PCIe 3.0 x4/x2 & SATA |
| SATA | 4 x SATA 6Gb/s |
| RAID Support | RAID 0 / 1 / 10 |
| Network | |
| LAN | Realtek Gigabit Ethernet |
| Wireless | MediaTek Wi-Fi 6E |
| Bluetooth | Bluetooth 5.3 |
| USB | |
| Rear USB | 4 x USB 3.2 Gen 1 4 x USB 2.0 |
| Front USB | 1 x USB 3.2 Gen 1 Header (2 Ports) 1 x USB 2.0 Header (2 Ports) |
| Audio | |
| Audio Codec | Realtek High Definition Audio |
| Audio Channels | 2 / 4 / 5.1 / 7.1 |
| Rear I/O | |

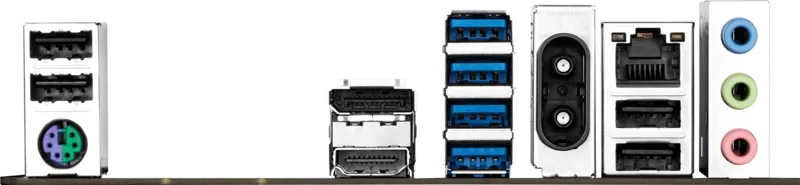

| Rear Ports | 1 x PS/2 Combo Port 1 x DisplayPort 1 x HDMI 4 x USB 3.2 Gen 1 4 x USB 2.0 1 x RJ-45 LAN 2 x Wi-Fi Antenna Connectors |
| Internal Connectors | |
| Fan Headers | 1 x CPU Fan 1 x System Fan |
| Power Connectors | 1 x 24-pin ATX 1 x 8-pin CPU |
| Storage Connectors | 1 x M.2 4 x SATA 6Gb/s |
| USB Headers | 1 x USB 3.2 Gen 1 1 x USB 2.0 |
| Other Headers | Front Panel Front Audio TPM Clear CMOS |
| Features | |
| Software Features | APP Center @BIOS EasyTune Smart Backup System Information Viewer |
| BIOS Features | Q-Flash |
| BIOS | |
| BIOS | 128Mb AMI UEFI BIOS |
| Operating System | |
| OS Support | Windows 11 64-bit Windows 10 64-bit |
| Form Factor | |
| Form Factor | Micro-ATX |
| Dimensions | 244 x 244 mm |
