Motherboard

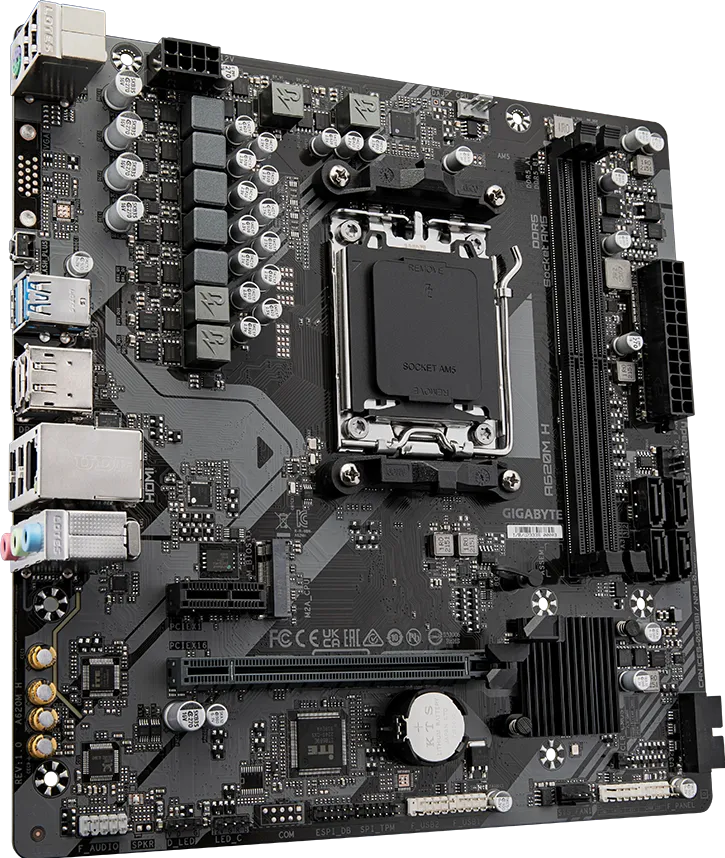

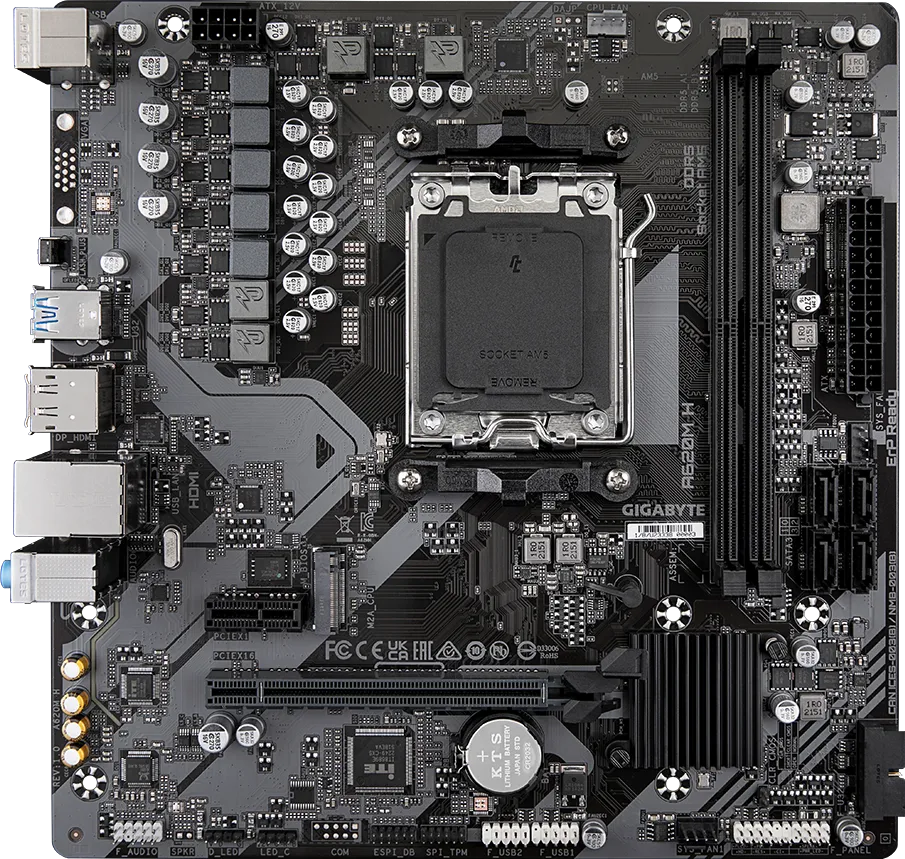

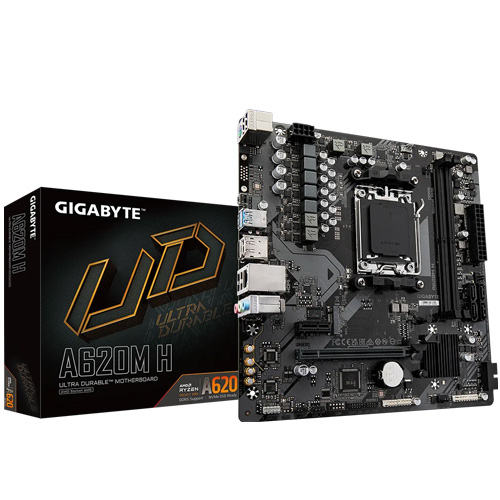

Gigabyte A620M H (AM5) (DP/HDMI)
Incoming Stock
✓ Synced with our store inventory
SRP: ₱5,900
₱4,950
Discounted cash price
1
✨ 100% Brand New
🛡️ Secure payments via GCash or Bank Transfer
🛵 Same day delivery within Lucena and nearby areas
📦 Shipping available via J&T Express
🏬 In-store pickup available
About this item
| General | |
| CPU Socket | AMD Socket AM5 |
| Supported Processors | AMD Ryzen™ 7000 Series AMD Ryzen™ 8000 Series AMD Ryzen™ 9000 Series |
| Chipset | AMD A620 |
| Form Factor | Micro-ATX |
| Dimensions | 230 × 225 mm |
| Memory | |
| Memory Support | 2 x DDR5 DIMM |
| Maximum Capacity | 128GB |
| Memory Speeds | DDR5-6400 (OC) 6200 (OC) 6000 (OC) 5600 (OC) 5200 4800 4400 MT/s |
| Memory Architecture | Dual Channel |
| Memory Support Features | Non-ECC Unbuffered DIMM (1Rx8 / 2Rx8 / 1Rx16) AMD EXPO™ Intel XMP |
| Graphics | |
| Integrated Graphics Support | Yes (CPU Dependent) |
| Display Outputs | 1 x DisplayPort 1.4 1 x HDMI 2.1 |
| Maximum Resolution | DisplayPort: 3840 × 2160 @ 144Hz HDMI: 4096 × 2160 @ 60Hz |
| Maximum Displays | 3 |
| HDCP Support | HDCP 2.3 (HDMI) |
| Expansion Slots | |
| PCIe x16 | 1 x PCIe x16 (CPU) PCIe 4.0 x16 (Ryzen 7000) PCIe 4.0 x8 (Ryzen 8000 Phoenix 1) PCIe 4.0 x4 (Ryzen 8000 Phoenix 2) |
| PCIe x1 | 1 x PCIe 3.0 x1 |
| Storage | |
| M.2 Slots | 1 x M.2 Socket 3 (PCIe 4.0 x4/x2) |
| SATA Ports | 4 x SATA 6Gb/s |
| RAID Support | RAID 0 / 1 / 10 (NVMe & SATA) |
| Network | |
| LAN | Realtek® Gigabit Ethernet |
| Audio | |
| Audio Codec | Realtek® HD Audio Codec |
| Audio Channels | 2 / 4 / 5.1 / 7.1 |
| USB | |
| Rear USB | 2 x USB 3.2 Gen 1 4 x USB 2.0 |
| Internal USB | 2 x USB 3.2 Gen 1 (Header) 4 x USB 2.0 (Headers) |

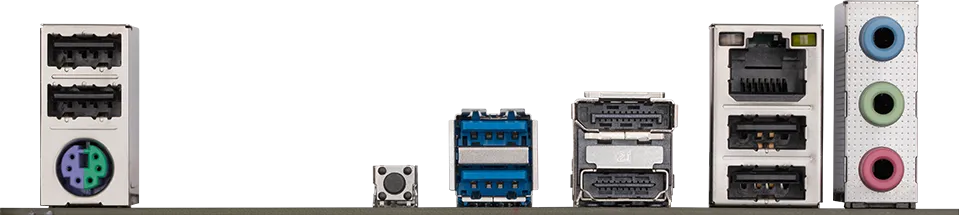

| Rear I/O | |
| Video Outputs | 1 x DisplayPort 1 x HDMI |
| USB | 2 x USB 3.2 Gen 1 4 x USB 2.0 |
| Network | 1 x RJ-45 |
| Audio | 3 x Audio Jacks |
| Legacy | 1 x PS/2 Keyboard/Mouse |
| Other | 1 x Q-Flash Plus Button |
| Internal Connectors | |
| Power | 1 x 24-pin ATX 1 x 8-pin CPU |
| Cooling | 1 x CPU Fan Header 2 x System Fan Headers |
| Storage | 1 x M.2 Socket 3 4 x SATA 6Gb/s |
| USB Headers | 1 x USB 3.2 Gen 1 2 x USB 2.0 |
| Lighting | 1 x Addressable RGB Header 1 x RGB LED Header |
| Other Headers | Front Panel Front Audio TPM Header Clear CMOS Jumper |
| BIOS | |
| BIOS | 256 Mbit AMI UEFI BIOS |
| Monitoring | |
| Hardware Monitoring | Voltage Detection Temperature Detection Fan Speed Detection Water Cooling Flow Detection Fan Failure Warning Smart Fan Control |
| Features | |
| Motherboard Utilities | GIGABYTE Control Center (GCC) |
| BIOS Features | Q-Flash Plus Q-Flash |
| Software | |
| Bundled Software | Norton® Internet Security (OEM) LAN Bandwidth Management Software |
| Operating System | |
| OS Support | Windows 11 64-bit Windows 10 64-bit |
