| Brand | Gigabyte |
|---|---|
| Form Factor | mATX |
| Memory Type | DDR4 |
| Socket | AM4 |
| CPU | AMD Socket AM4 |
| Chipset | AMD B450 |
| Memory | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| Onboard Graphics Port | 1 x HDMI port * Support for HDMI 2.1 version and HDCP 2.2 |
| Audio | Realtek® Audio codec |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCI Express 3.0) 1 x PCI Express x16 slot, running at x1 (PCI Express 3.0) 1 x PCI Express x1 slot (PCI Express 2.0) |
| Storage Interface | 1 x M.2 connector (PCI Express 3.0) 4 x SATA 6Gb/s connectors |
| USB | 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 3.1 Gen 1 ports on the back panel |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x CPU cooler LED strip/RGB LED strip header 1 x RGB LED strip header 2 x addressable LED strip headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper |

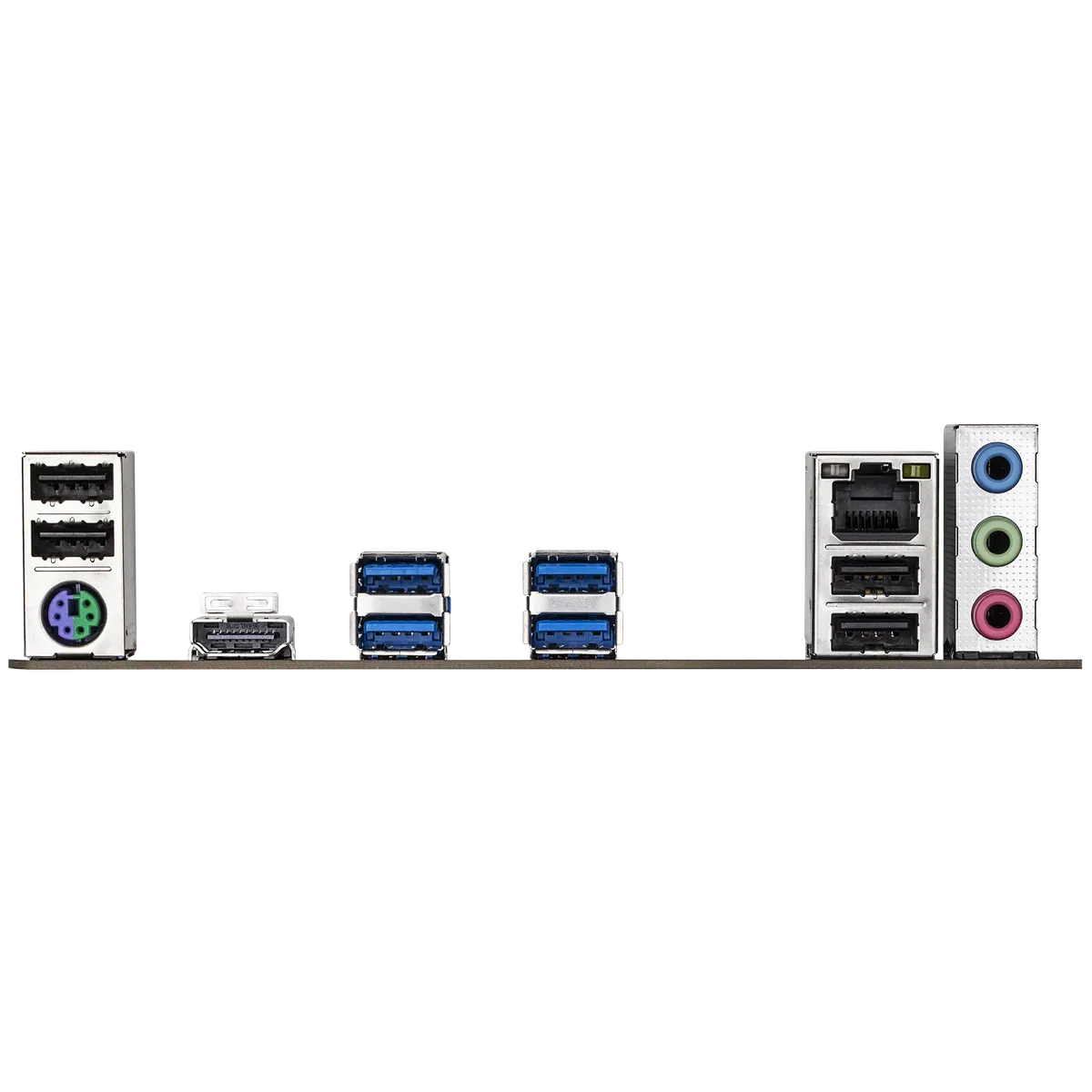

| Back Panel Connectors | 1 x PS/2 keyboard/mouse port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit Support for Windows 7 64-bit |
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.5cm |
