AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
Memory
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Onboard Graphics
1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Audio
Realtek® Audio CODEC
LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)
Wireless Communication module
Realtek® Wi-Fi 6E RTL8852CE
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
Supporting PCIe 3.0 x4 mode
1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:
Supporting PCIe 3.0 x1 mode
Storage Interface
1 x M.2 connector supporting PCIe 4.0
1x M.2 connector supporting PCIe 3.04 x SATA 6Gb/s connectors, integrated in the Chipset
USB
4 x USB 3.2 Gen 1 ports on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button

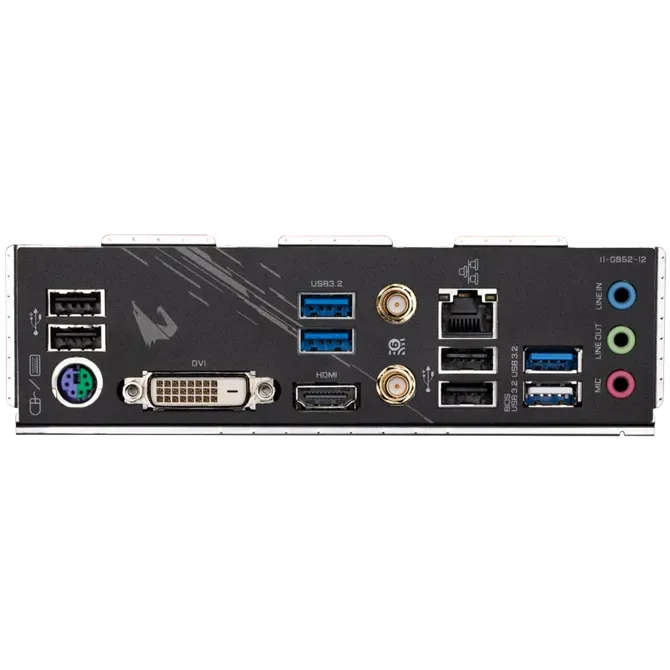

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
