1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzenâ„¢ 5000 Series and Ryzenâ„¢ 3000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzenâ„¢ Ryzenâ„¢ 5000 G-Series and Ryzenâ„¢ 4000 G-Series Processors support PCIe 3.0 x16 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
Supporting PCIe 3.0 x4 mode
1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:
Supporting PCIe 3.0 x1 mode
Storage Interface
1x M.2 Connector supporting PCIe 3.0/4.0
1x M.2 Connector supporting PCIe 3.0
4 x SATA 6Gb/s connectors
USB
CPU:
4 x USB 3.2 Gen 1 ports on the back panelChipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

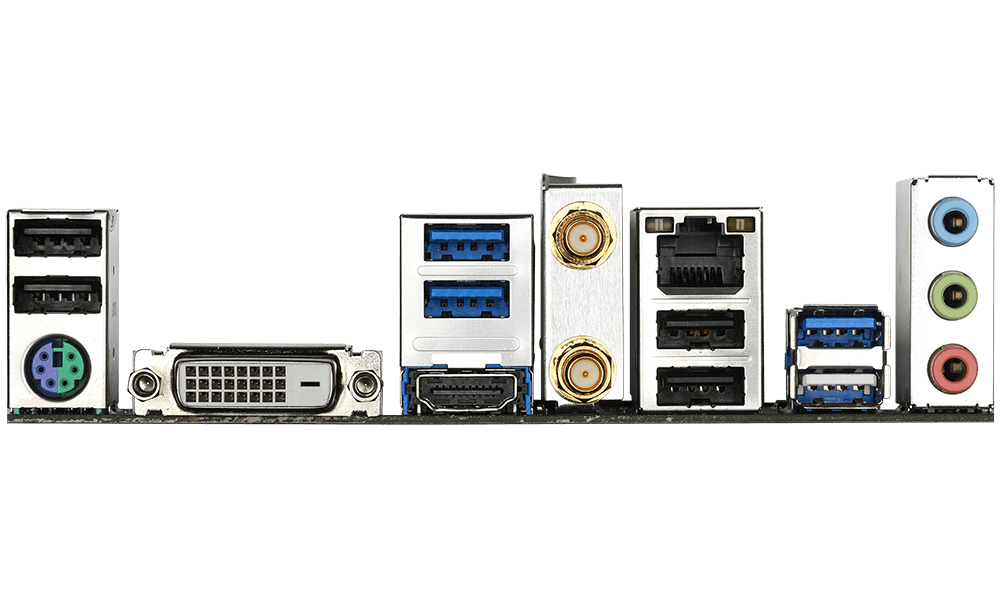

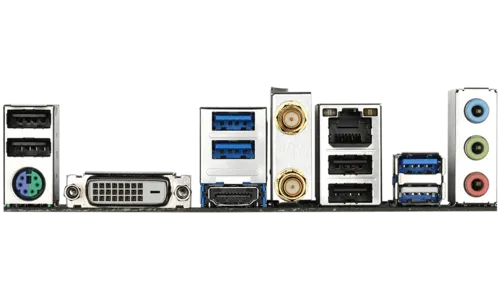

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x DVI-D port
2 x SMA antenna connectors
1 x HDMI port
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
